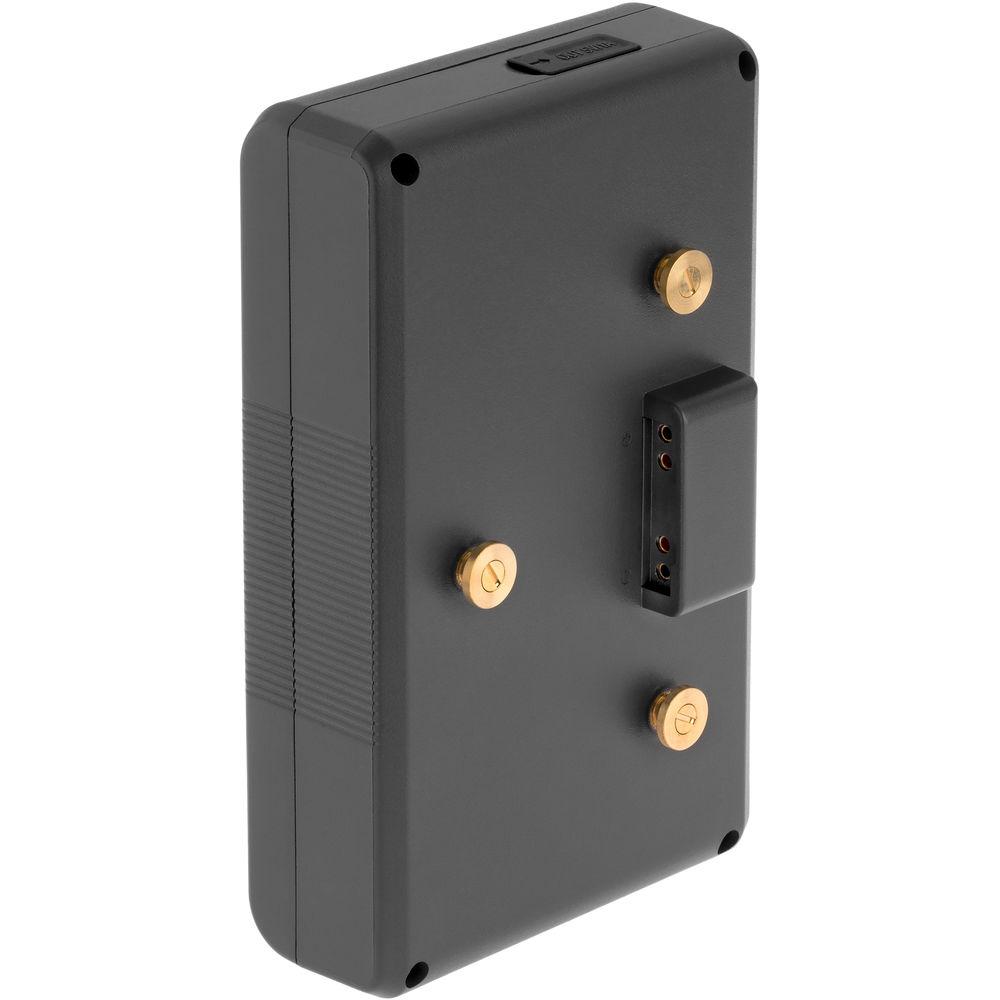

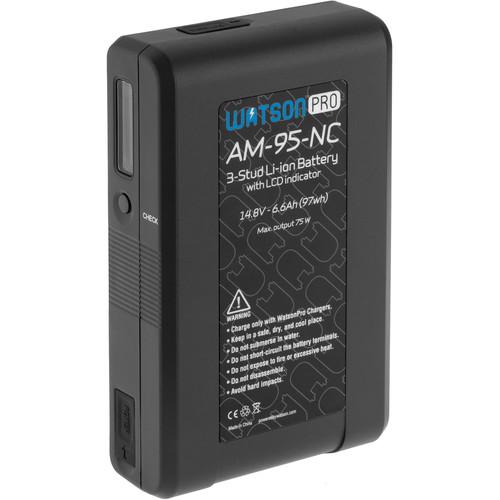

Product description Monitor your runtime in real time with the Watson Pro 14.8V 97Wh Li-Ion Battery with LCD with a Gold Mount. This lightweight battery provides up to a constant 6.5A/79W output, suitable for up to most mid-size and large professional cameras. At 35W, average runtime is rated at approximately 154 minutes. For safe operation, a built-in intelligent control circuit protects against damage from current or voltage overload, overheating, or short-circuits.

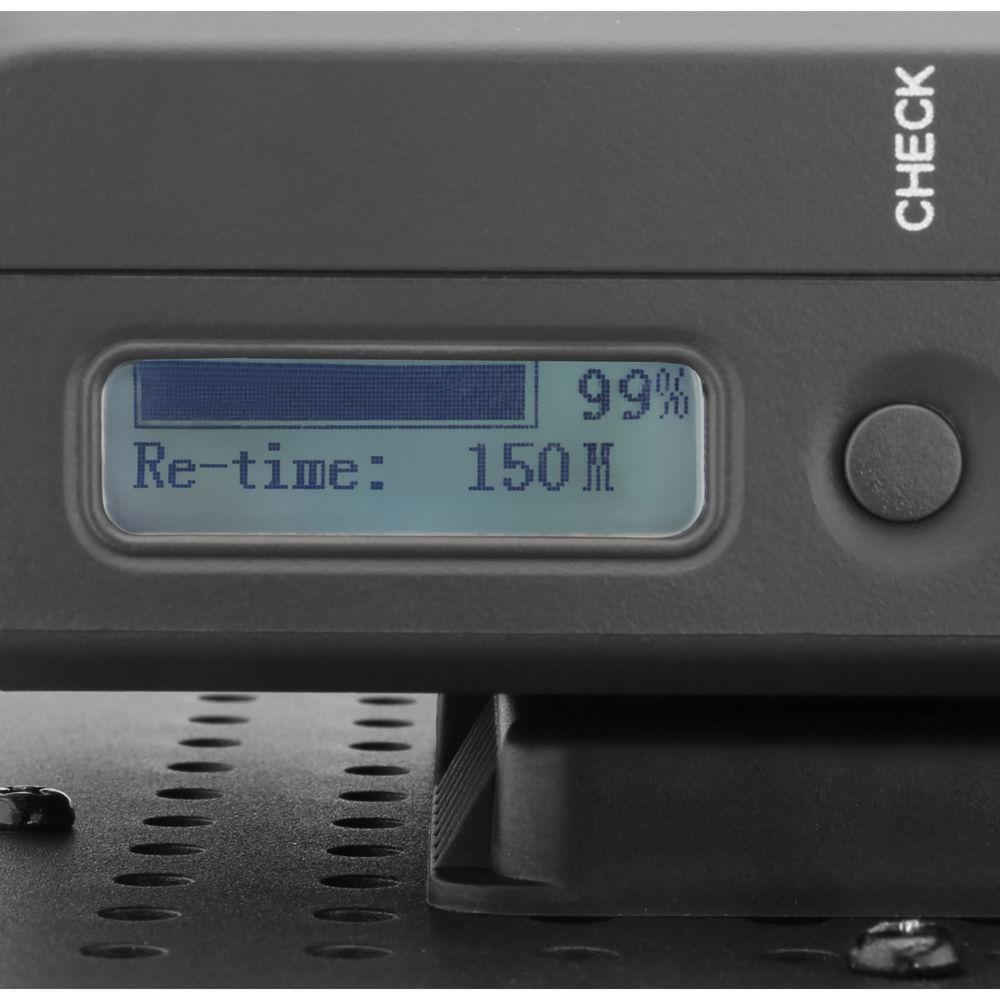

A backlit LCD located on the side stays on when the battery is in use and shows remaining runtime in minutes and capacity as a percentage bar, and constantly updates in real time. If your source fluctuates in the amount of draw, the LCD will automatically adjust the remaining runtime displayed. When the battery is not in use, a battery-level check button underneath the LCD can be pressed to display remaining capacity percentage. When the battery is charging, capacity percentage and remaining charge time in minutes are displayed.
There's also a D-tap port for powering accessories, and a USB 2.0 port for powering USB devices such as receivers. These two outputs can be used simultaneously. - Key Features
-
- 14.8V, 97Wh lithium-ion battery in a Gold mount
- Supports up to 6.5A/79W constant draw
- 154-minute average runtime at 35W
- Backlit LCD on the side displays runtime in minutes and capacity as a percentage bar
- LCD remains lit when the battery is in use and constantly updates in real time dependant on draw
- Intelligent control circuit protection
- Simultaneously active D-tap and USB 2.0 ports
UPC: 847628591943 In the Box Watson Pro 14.8V 97Wh Li-Ion Battery with LCD (Gold Mount) Limited 2-Year Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro 14.8V 97Wh Li-Ion Battery with LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson AM-95-NC Specs | Mount Type | Gold mount | | Output Voltage | 14.8 V | | Watt Hours | 97 Wh | | Capacity | 6.6 Ah | | Output Current | Up to constant 6.5 A | | Output Power | Up to constant 79 W | | Average Runtime | 154 min at 35 W | | D-Tap Output | 12 V, 10 A max | | USB Output | USB 2.0, 5 V / 1 A | | Dimensions | 1.6 x 4 x 6.8" (4 x 10.2 x 17.3 cm) | | Weight | 1.7 lb (0.76 kg) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 7.48 x 4.961 x 3.386" |
