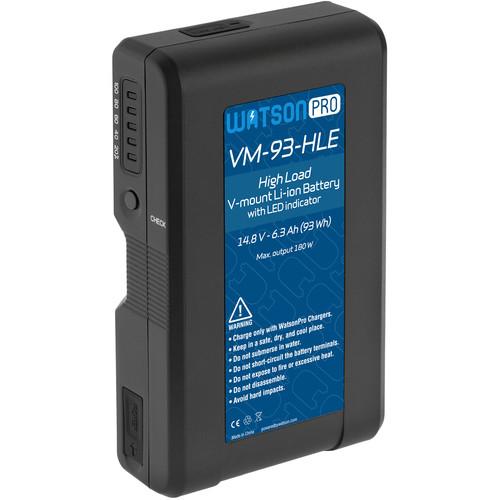

User Manual for Watson Pro 15A High-Load 14.8V 93Wh Li-Ion Battery Click to enlarge the picture
Contents of the user manual for the Watson Pro 15A High-Load 14.8V 93Wh
- Product category: On Camera Batteries Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson On Camera Batteries
|
User manual for the Watson Pro 15A High-Load 14.8V 93Wh contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|
Product description - Watson Pro VM-93-HLE battery test
Power up to the most demanding professional cameras with the Watson Pro 15A High-Load 14.8V 93Wh Li-Ion Battery with a V-mount. Featuring high-powered lithium-ion cells organized in a honeycomb pattern, this battery provides up to a constant 15A/180W output, suitable for the most advanced cinema and ENG cameras. At 180W, average runtime is rated at approximately 31 minutes. For safe operation, a built-in intelligent control circuit protects against damage from current or voltage overload, overheating, or short-circuits.
A 5-LED battery-level meter is located on the side where it's easy to glance at during your shoot and is activated via a battery-level check button right underneath it. When the battery reaches below 9% capacity level, the bottom LED begins to flash automatically as a warning.
There's also a D-tap port for powering accessories, and a USB 2.0 port for powering USB devices such as receivers. These two outputs can be used simultaneously. - Key Features
-
- 14.8V, 93Wh lithium-ion battery in a V-mount
- Supports up to 15A/180W constant draw, for up to the most demanding professional cameras
- 31-minute average runtime at 180W
- 5-LED battery-level meter on the side
- Intelligent control circuit protection
- Simultaneously active D-tap and USB 2.0 ports
UPC: 847628592247 In the Box Watson Pro 15A High-Load 14.8V 93Wh Li-Ion Battery (V-Mount) Limited 2-Year Warranty User Manual PDF 1mbcwfvzrdccqtwraxdrqfvexvxub Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro 15A High-Load 14.8V 93Wh Li-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson VM-93-HLE Specs | Mount Type | V-mount | | Output Voltage | 14.8 V | | Watt Hours | 93 Wh | | Capacity | 6.3 Ah | | Output Current | Up to constant 15 A | | Output Power | Up to constant 180 W | | Average Runtime | 31 min at 180 W | | D-Tap Output | 12 V, 10 A max | | USB Output | USB 2.0, 5 V / 1 A | | Dimensions | 6.8 x 4 x 1.6" (17.2 x 10.2 x 4.1 cm) | | Weight | 1.8 lb (0.82 kg) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 7.559 x 4.882 x 3.228" |
