User Manual for Watson Pro Buddy System High-Load V-Mount Battery Click to enlarge the picture
Contents of the user manual for the Watson Pro Buddy System High-Load V-Mount
- Product category: On Camera Batteries Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson On Camera Batteries
 |
User manual for the Watson Pro Buddy System High-Load V-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|
Product description - Safe to Fly: Watson Pro Buddy Batteries
- Safe to Fly: Watson Pro Buddy Batteries

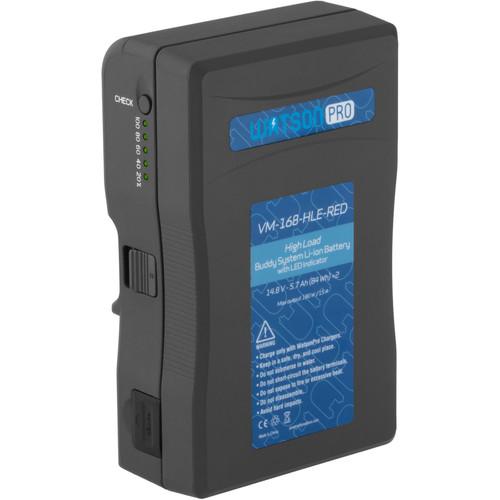

If your filmmaking takes you across the country, or even across the globe, the Watson Pro Buddy System High-Load V-Mount Battery provides a high-capacity, yet air-travel-friendly solution. With the flip of a switch, the 168Wh battery pack splits in half, allowing it to comply with most airline carry-on regulations. The 15-amp maximum load on this battery can support cinema cameras rigged up with accessories, large LED lights, external recorders, or other on-set essential gear that uses a V-mount. Reverse SMBUS communication is enabled through the V-mount connection. RED ONE and DSMC cameras use reverse SMBUS to communicate detailed battery information, allowing time remaining information to be displayed in the viewfinder. Use the built-in D-tap and USB port to power accessories and charge mobile devices as well. Intelligent circuitry protection is built-in to prevent overloading, overheating, and short-circuits. - Buddy System Design

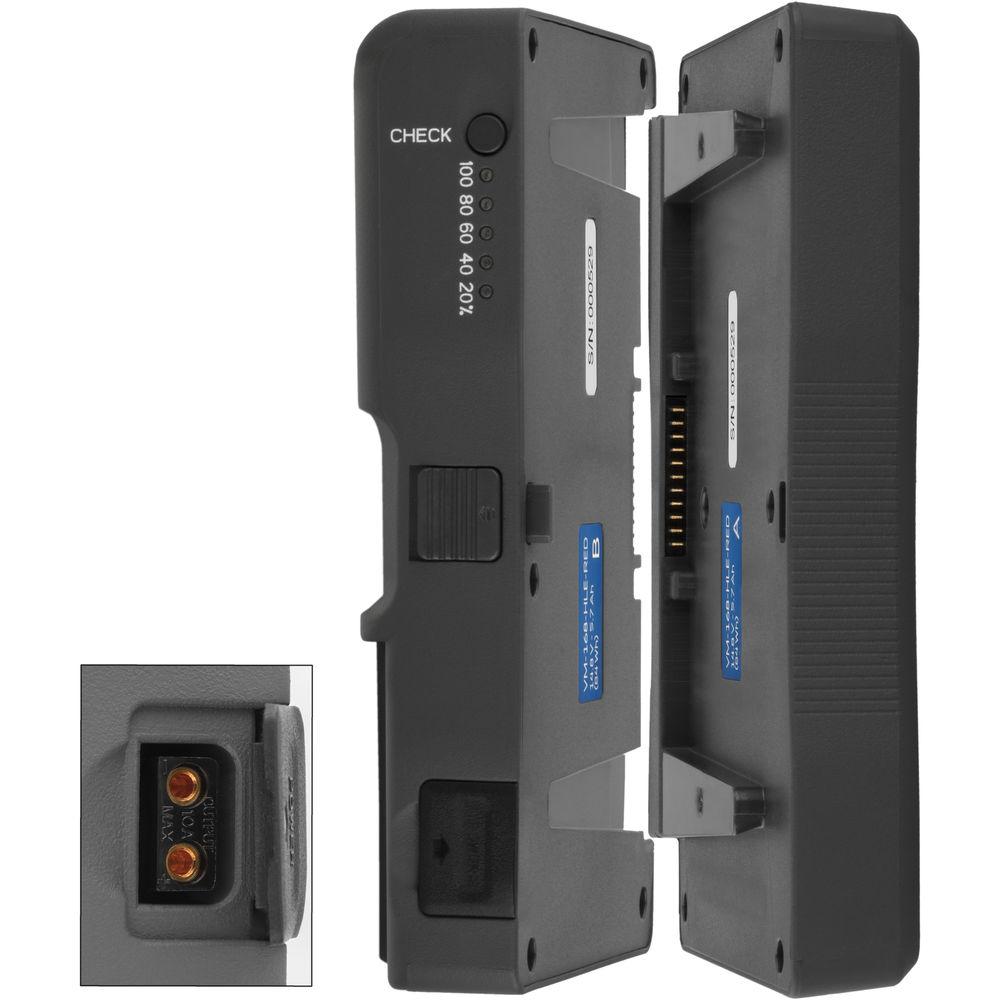

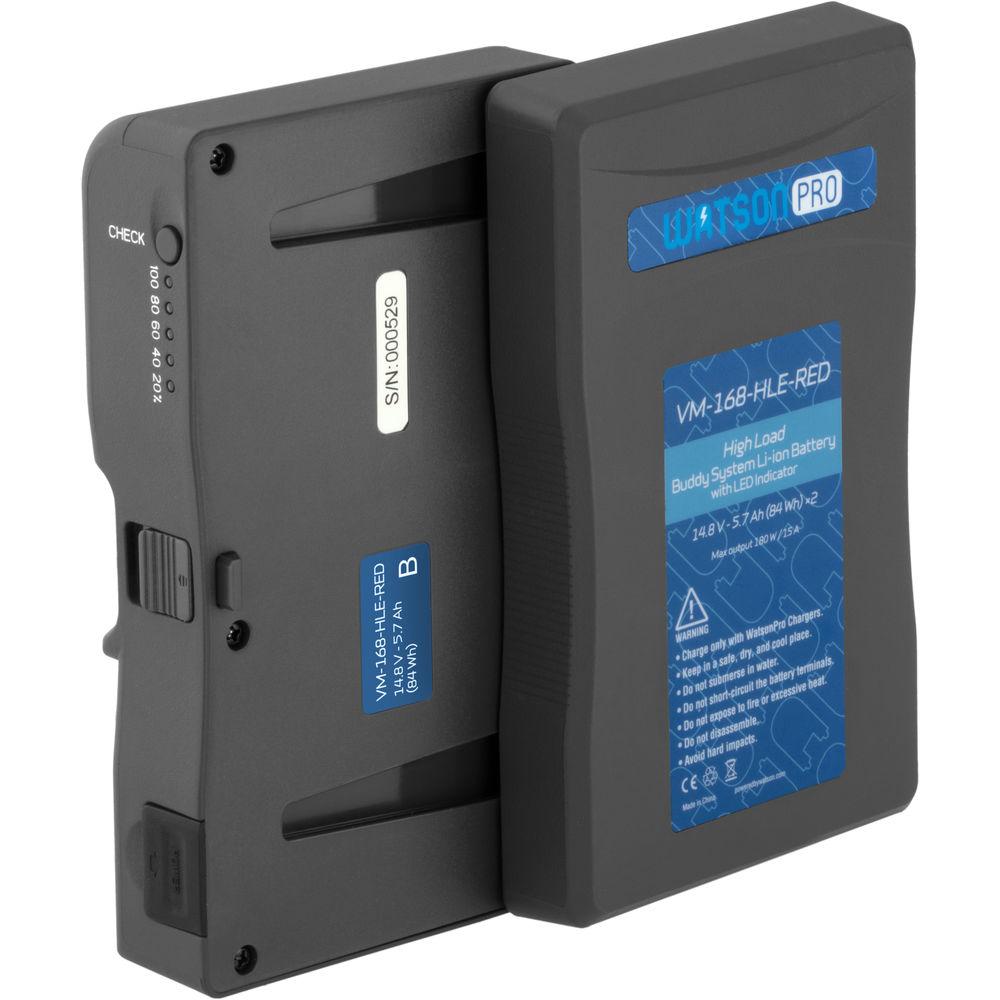

- To accommodate for air-travel regulations on lithium-ion batteries, this battery pack can split in half. Once split, each half will fall below the capacity requirement to pass most air-travel security protocols.
Note: Both halves of each battery are serialized and are not interchangeable with other Buddy System batteries. - Accessory Ports

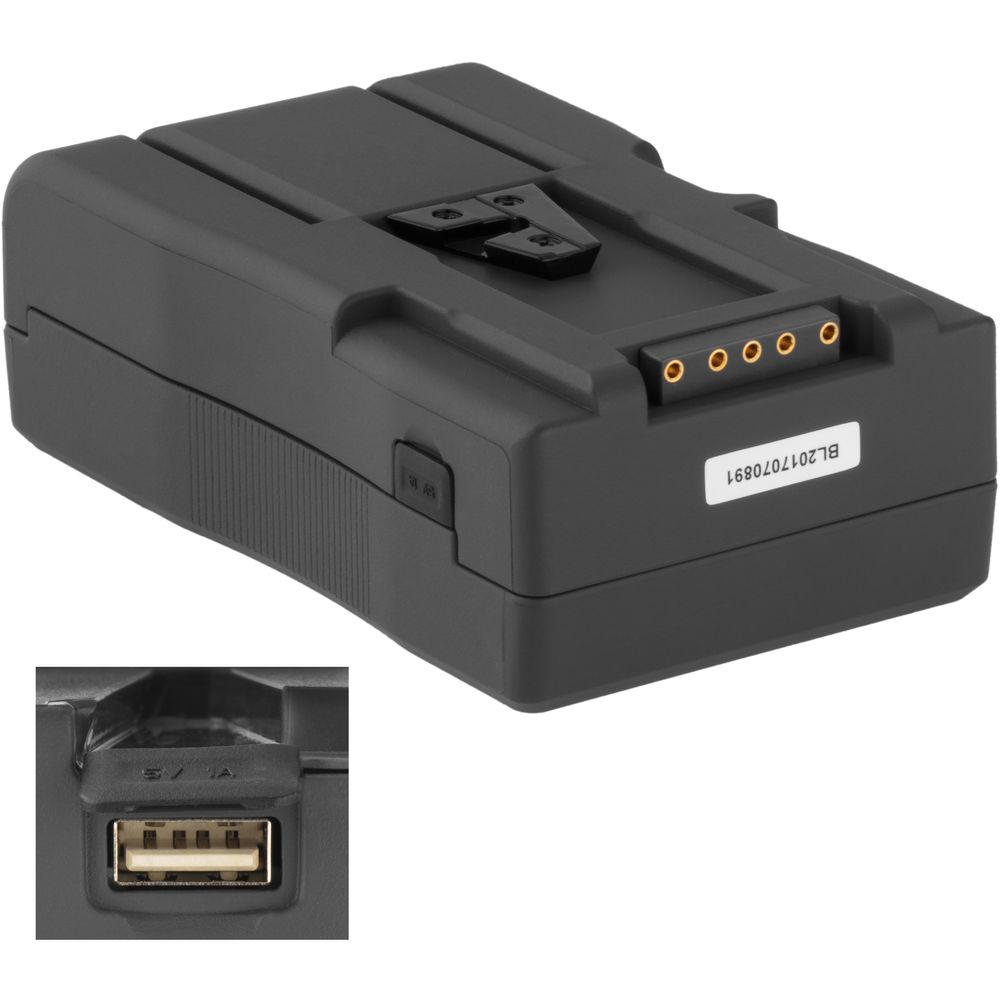

- Not only will the battery power your camera or light, accessories can be powered simultaneously using the built-in D-tap and USB ports. The D-tap can output 12 volts at up to 10 amps for lens control systems, on-camera lighting, or other accessory. The USB port outputs 5V at 1 amp and can be useful to charge on-set electronics or mobile devices.
- LED Status Indicator

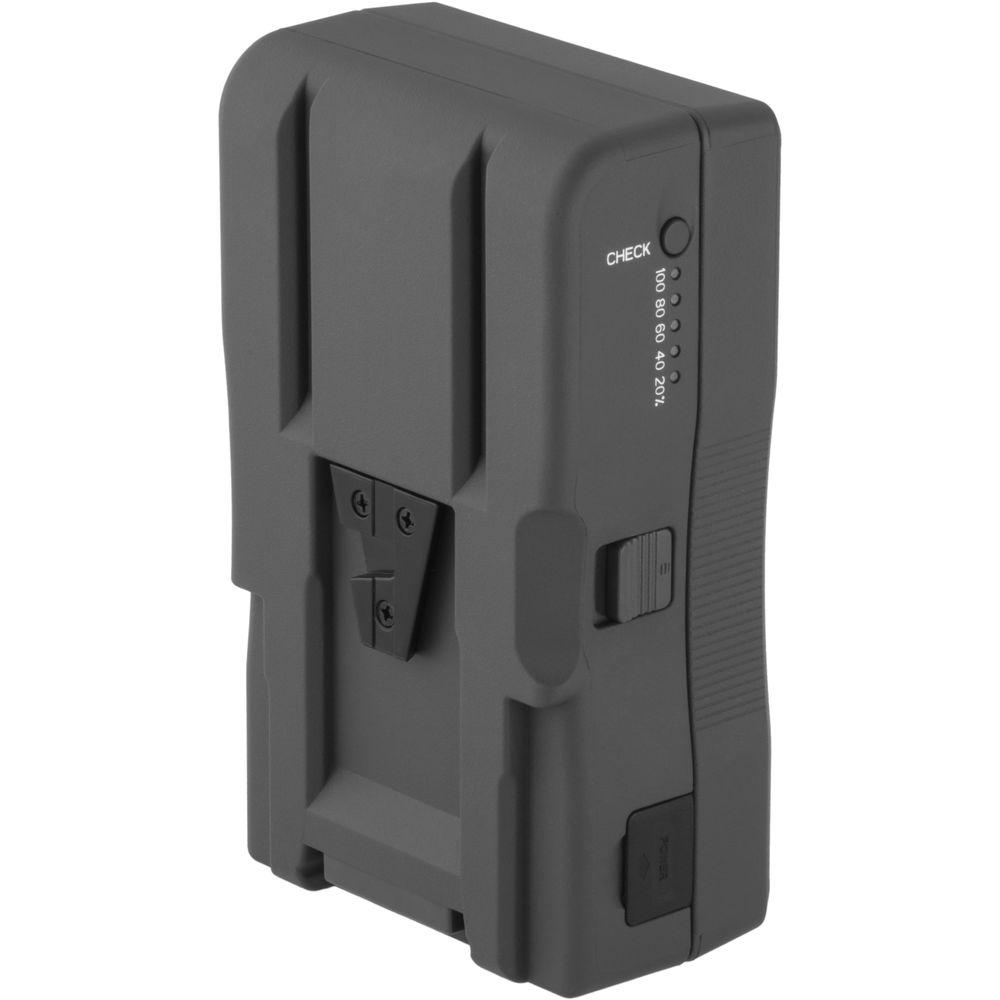

- Press the check button on the rear and LEDs will illuminate to indicate the current battery capacity.
- Intelligent Circuitry
- Intelligent circuitry constantly analyzes battery load and temperature, and will shut down to prevent damage from overloading, overheating, and short-circuiting.
UPC: 847628592414 In the Box Watson Pro Buddy System High-Load V-Mount Battery Limited 2-Year Warranty User Manual PDF 645.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro Buddy System High-Load V-Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson VM-168-HLE-RED Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 168 Wh | | Capacity per Section (Wh) | 84 Wh | | Amp-Hours | 11.4 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 180 W, 15 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Maximum Load (Accessory Port) | 120 W, 10 A ( D-Tap ) | | USB Output | 5 V, 1 A | | Dimensions (W x H x D) | 3.9 x 6.7 x 2.2" / 9.9 x 17.0 x 5.6 cm | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 7.8 x 4.6 x 3.5" |
