Product description - Batteries Gone Slim: Watson Pro RED Batteries
Power your cinema camera or other power-hungry professional equipment with this Watson Pro Cine Gold Mount Battery. While sporting a capacity of 148Wh, this cine battery remains relatively compact. Its robust ABS housing fits on smaller cinema cameras without disrupting the overall design aesthetic or getting in the way of top-mounted accessories. The 15-amp maximum load on this Cine battery can support cinema cameras rigged up with accessories, large LED lights, external recorders, or other on-set essential gear that uses a Gold mount. Use the D-tap and USB port to power accessories and charge mobile devices as well. Intelligent circuitry protection is built-in to prevent overloading, overheating, and short-circuits. - Compact Design
- Smaller cinema cameras benefit from the compact design of the Watson Pro Cine batteries. The shorter overall design sits in line with compact camera bodies, providing lower clearance for handles and complex rigs.

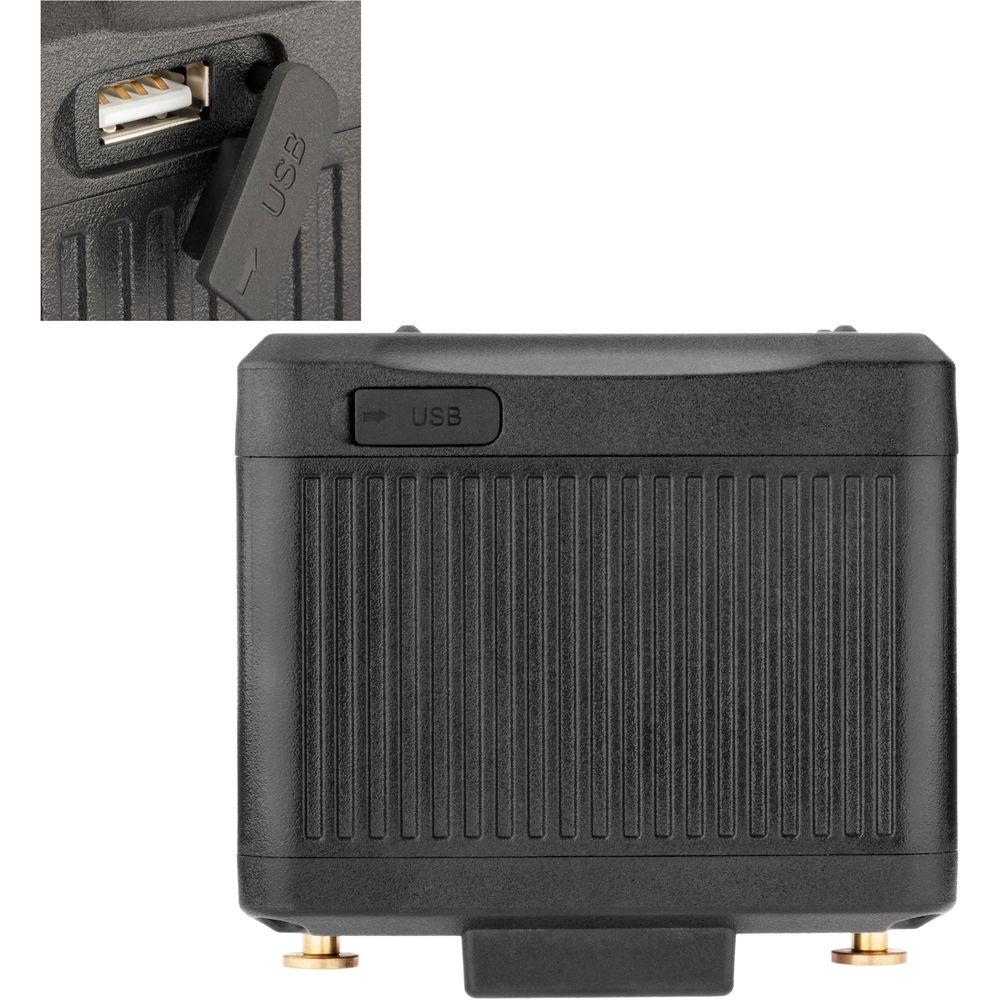

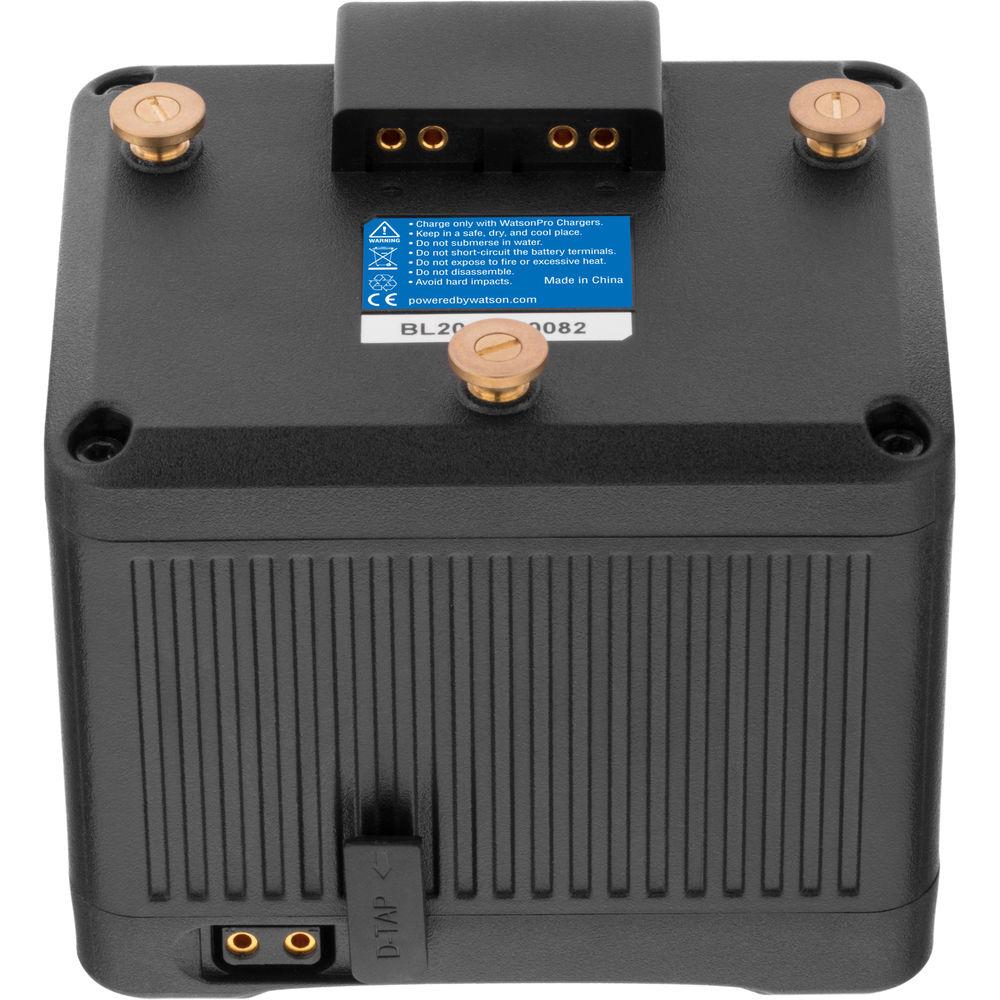

- Accessory Ports
- Not only will the Watson Pro Cine battery power your camera or light, accessories can be powered simultaneously using the built-in D-tap and USB ports. The D-tap can output 12V at up to 10 amps for lens control systems, on-camera lighting, or other accessory. The USB port outputs 5V at 1 amp and can be useful to charge on-set electronics or mobile devices.

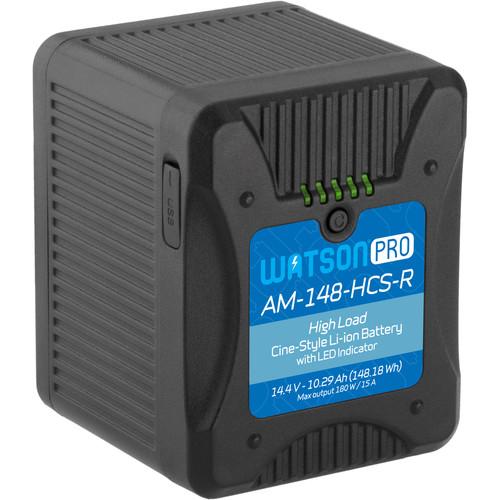

- LED Status Indicator
- Press the check button on the rear and LEDs will illuminate to indicate the current battery capacity.
- Intelligent Circuitry
- Intelligent circuitry constantly analyzes battery load and temperature, and will shut down to prevent damage from overloading, overheating, and short-circuiting.
UPC: 847628002616 In the Box Watson Pro Cine High-Load Gold Mount Battery Limited 2-Year Warranty User Manual PDF 589.7kbfeqeberxwvzafzwutdabuwttb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro Cine High-Load Gold Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson AM-148-HCS-R Specs | Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 148.18 Wh | | Amp-Hours | 10.29 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 180 W, 15 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Maximum Load (Accessory Port) | 120 W, 10 A ( D-Tap ) | | USB Output | 5 V, 1 A | | Dimensions (W x H x D) | 3.6 x 4.5 x 4.2" / 9.1 x 11.4 x 10.7 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 6.6 x 5.1 x 4.9" |
