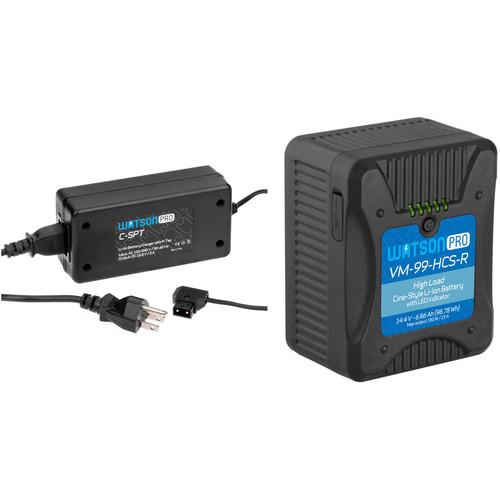

User Manual for Watson Pro Cine High-Load V-Mount Battery Kit with D-Tap Charger Click to enlarge the picture
Contents of the user manual for the Watson Pro Cine High-Load V-Mount Battery
- Product category: On Camera Batteries Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson On Camera Batteries
|
User manual for the Watson Pro Cine High-Load V-Mount Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|
Product description This B&H kit is assembled to provide you a power and charging solution for your cinema camera or other power-hungry professional equipment. It includes a Watson Pro Cine V-Mount Battery and a Watson Pro Single-Position Li-Ion Battery Charger with D-Tap Output. The compact V-Mount battery features a capacity of 99Wh, robust ABS housing, and supports up to a 15-amp maximum draw. It supports SMBUS communication, which allows battery information to be displayed in RED DSMC2 cameras.
The included charger uses the battery's D-Tap connector to charge the battery. The charger supports worldwide power standards allowing you to use it virtually anywhere in the world with optional plug adapters or AC power cords. It outputs 16.8 VDC and charges at up to 2 amps via the D-Tap output plug, which plugs into the battery's D-Tap port to charge the battery. - Watson Pro Single-Position Li-Ion Battery Charger with D-Tap Output Conveniently charge any Watson Pro battery that has a D-Tap port with this Single-Position Li-Ion Battery Charger with a D-Tap Output from Watson Pro. Plug it into a 3-prong AC outlet and connect the D-Tap output to your battery. An LED indicator remains red while your battery is charging and switches to green when fully charged.
This is a 100-240V worldwide compatible charger, capable of being used internationally if you incorporate appropriate plug adapters, sold separately. - Approximate Charge Times
- 4.0Ah = 3.6 hours
4.4Ah = 4 hours
6.2Ah = 5.2 hours
6.6Ah = 5.5 hours
8.2Ah = 6.6 hours
8.8Ah = 7 hours
10.2Ah = 8 hours
11.0Ah = 9 hours
13.2Ah = 11 hours UPC: 847628592421 - Watson Pro Cine High-Load V-Mount Battery Power your cinema camera or other power-hungry professional equipment with this Watson Pro Cine V-Mount Battery. While sporting a capacity of 99Wh, this cine battery remains relatively compact. Its robust ABS housing fits on smaller cinema cameras without disrupting the overall design aesthetic or getting in the way of top-mounted accessories. The 15-amp maximum load on this Cine battery can support cinema cameras rigged up with accessories, large LED lights, external recorders, or other on-set essential gear that uses a V-mount. SMBUS communication is enabled through the V-mount connection. Accurate battery runtime remaining information can be displayed in the viewfinder of compatible cameras. Use the D-tap and USB port to power accessories and charge mobile devices as well. Intelligent circuitry protection is built-in to prevent overloading, overheating, and short-circuits.
- Compact Design
- Smaller cinema cameras benefit from the compact design of the Watson Pro Cine batteries. The shorter overall design sits in line with compact camera bodies, providing lower clearance for handles and complex rigs.
- Accessory Ports
- Not only will the Watson Pro Cine battery power your camera or light, accessories can be powered simultaneously using the built-in D-tap and USB ports. The D-tap can output 12V at up to 10 amps for lens control systems, on-camera lighting, or other accessory. The USB port outputs 5V at 1 amp and can be useful to charge on-set electronics or mobile devices.
- LED Status Indicator
- Press the check button on the rear and LEDs will illuminate to indicate the current battery capacity.
- Intelligent Circuitry
- Intelligent circuitry constantly analyzes battery load and temperature, and will shut down to prevent damage from overloading, overheating, and short-circuiting.
UPC: 847628002609 In the Box - Pro Single-Position Li-Ion Battery Charger with D-Tap Output cqdcdctrbbertwbxueceexrbafxtctasybt
- Removable AC Power Cord
- Limited 1-Year Warranty
- Pro Cine High-Load V-Mount Battery
Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro Cine High-Load V-Mount Battery Kit with D-Tap Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Watson Pro Single-Position Li-Ion Battery Charger with D-Tap Output
| Output Connection | 1 x D-Tap | | Input | 100-240 VAC, 50-60 Hz | | Output Voltage | 16.8 VDC | | Output Current | 2 A | | Plug Type | 3-prong AC | | Operating Temperature | 14 to 95°F (-10 to 35°C) | | Dimensions | 2 x 2.75 x 5.5" (5 x 7 x 14 cm) | | Weight | 1.1 lb (480 g) | | | | Box Dimensions (LxWxH) | 7.48 x 5.039 x 3.465" | - Watson Pro Cine High-Load V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98.78 Wh | | Amp-Hours | 6.86 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 180 W, 15 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Maximum Load (Accessory Port) | 120 W, 10 A ( D-Tap ) | | USB Output | 5 V, 1 A | | Dimensions (W x H x D) | 3.6 x 4.5 x 2.7" / 9.1 x 11.4 x 6.9 cm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 6.6 x 4.9 x 4.0" |
