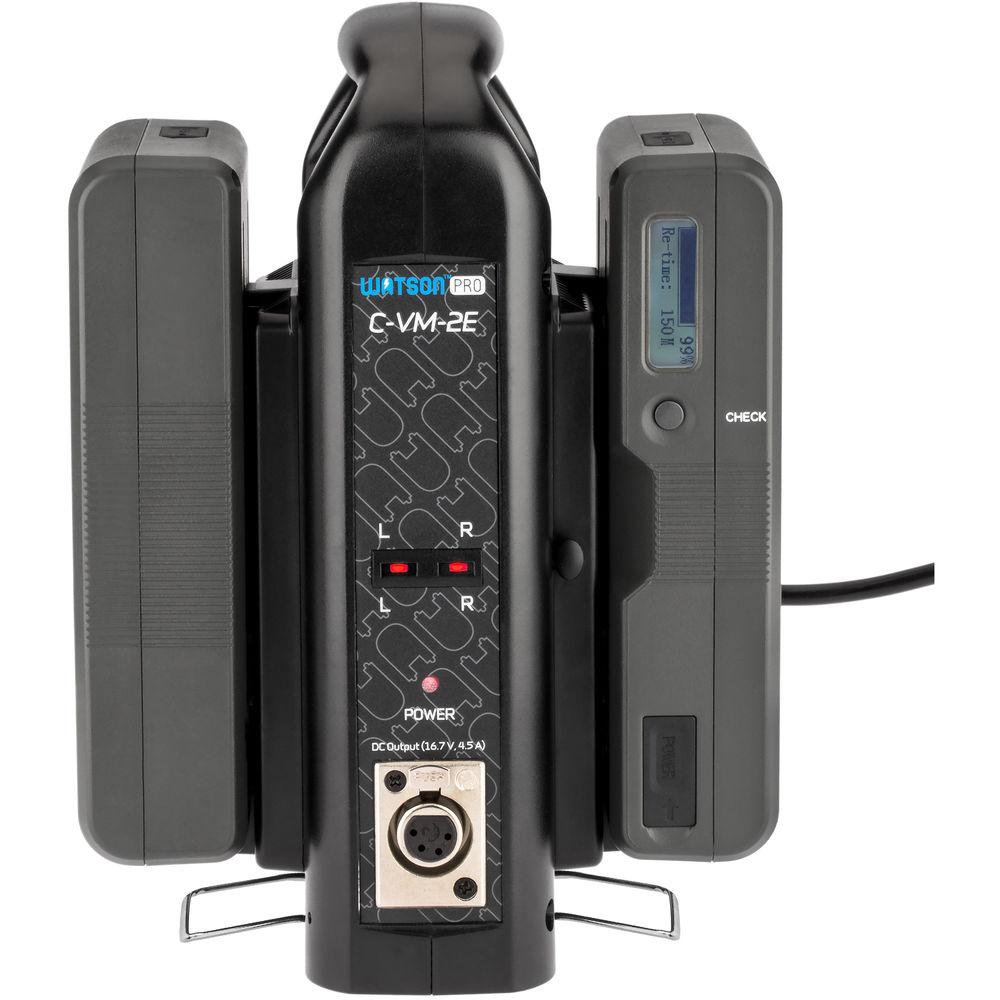

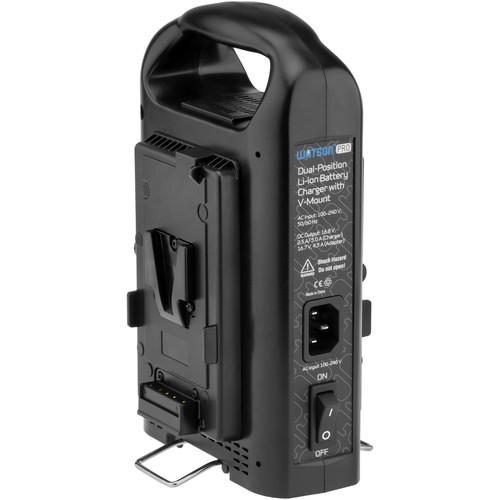

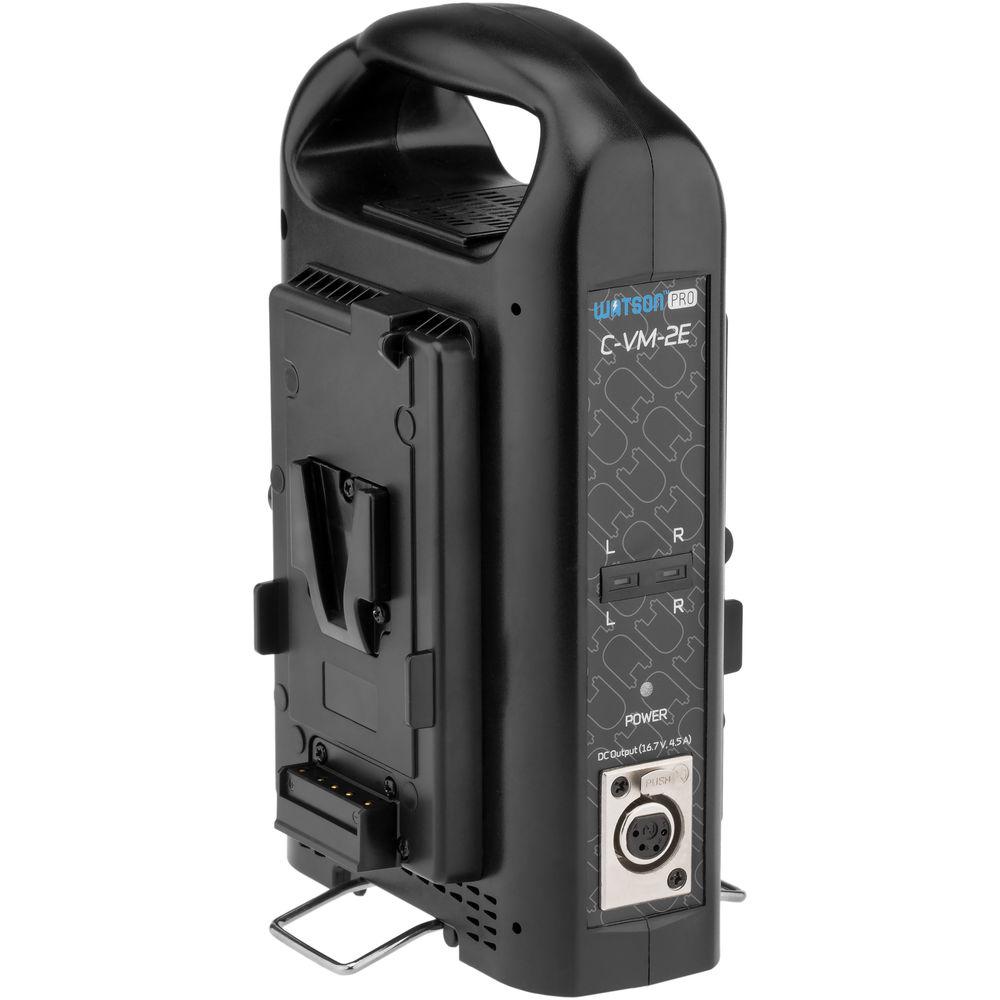

Product description This Watson Pro Dual Position Li-Ion Charger supports two V-mount batteries and offers a 4-pin XLR power output, providing dual-purpose functionality in a portable, handy design. It's capable of simultaneous charging, and the XLR port offers useful versatility. An ergonomic carry handle, flip-out kickstand, rubberized feet, On/Off switch, and LED status indicators complete the design and allow for comfortable and efficient operation.
This charger is able to charge two batteries with up to 6.6Ah capacities simultaneously, delivering 2.5A to each battery. For batteries with capacities of 8.8Ah or more, it provides sequential charging at 5A, first charging one to 85%, and then switching to fully charge both.
The 4-pin XLR power output can be used to power select cameras from an AC outlet or off of connected batteries. A special feature of this charger is that when it's connected to a power outlet, it is capable of charging the batteries and providing power through the XLR output at the same time, as opposed to one or the other as is more common.
Additionally, an XLR cable is included, giving you everything you need to make full use of this charger. The charger supports 100-240 VAC power input, so it can be used worldwide with the right plug adapters (sold separately). - Key Features
-
- Supports two V-mount lithium-ion batteries
- 4-pin XLR DC power output
- Capable of sequential and simultaneous charging, depending on capacities
- Capable of charging batteries and providing power through the XLR output at the same time
- Ergonomic carry handle
- Flip-out kickstand
- Rubberized feet
- On/Off switch
- LED status indicators
- 100-240 VAC power input
- XLR cable included
- XLR Power Output
-
- When connected to an AC outlet, delivers power at 16.7V and 4.5A
- When not connected to an outlet and with a battery/batteries attached, delivers 15V and 4.0A
- Simultaneous/Sequential Charging
-
- Charges a single battery at 5A
- Delivers simultaneous charging at 2.5A per channel for batteries with up to 6.6Ah capacities
- Provides sequential charging at 5A for batteries with capacities of 8.8Ah or more
- Approx. Charge Times
- 4.4Ah
Single: 2.5 hours
Dual: 2.5 hours simultaneously
6.6Ah
Single: 3.8 hours
Dual: 3.8 hours simultaneously
8.8Ah
Single: 2.5 hours
Dual: 5.0 hours sequentially
11Ah
Single: 3.2 hours
Dual: 6.5 hours sequentially
13.2Ah
Single: 3.8 hours
Dual: 7.6 hours sequentially
15.6Ah
Single: 4.2 hours

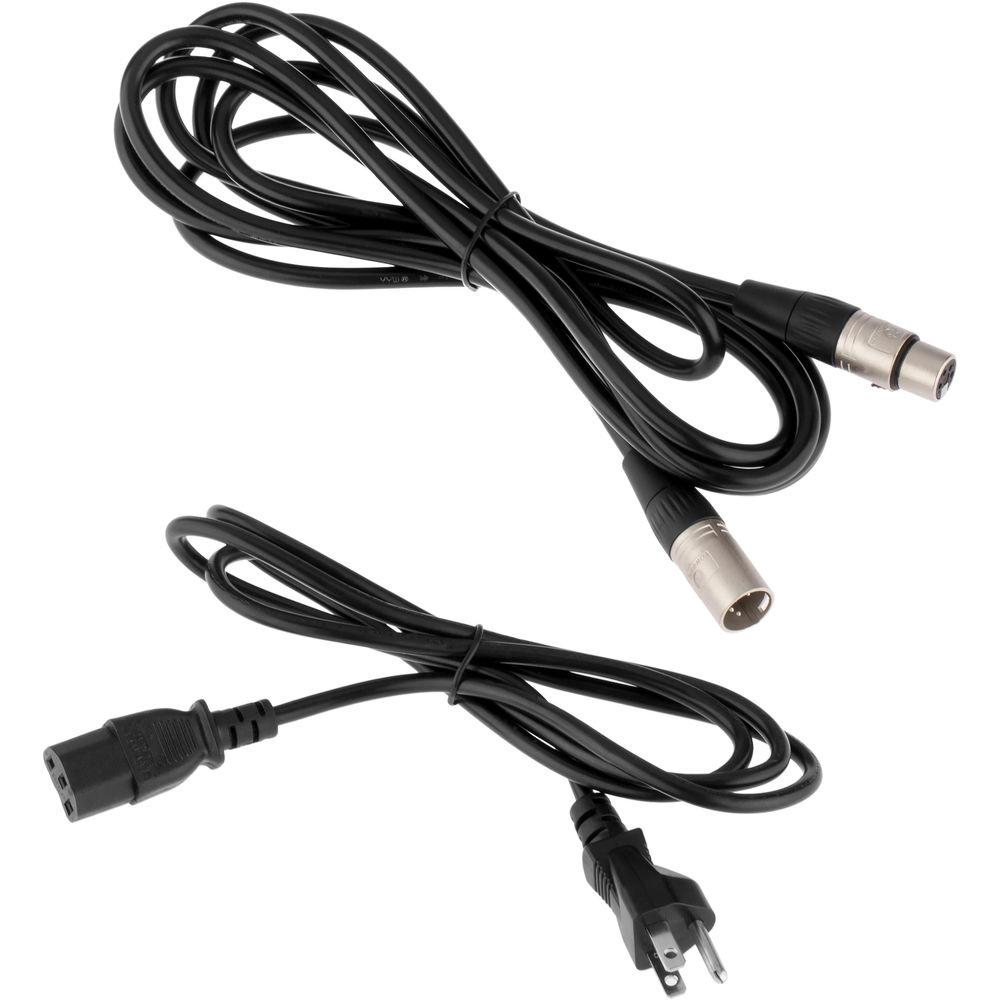

Dual: 8.5 hours sequentially UPC: 847628592452 In the Box Watson Pro Dual Position Li-Ion Battery Charger (V-Mount) AC Power Cable 4-Pin XLR Cable Limited 1-Year Warranty User Manual PDF 614kbfewrqrwbyyaeytvwtbsftstcswsxzxqwy Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro Dual Position Li-Ion Battery Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson C-VM-2E Specs | Mount Type | V-Mount | | AC Input | 100-240 V, 50-60 Hz, 1.5 A | | Output Charging Power | 16.8 V
5 A when charging a single battery
2.5 A per channel when charging two batteries simultaneously
5 A per channel when charging two batteries sequentially | | 4-Pin XLR DC Output | 16.7 V, 4.5 A from power outlet
15 V, 4.0 A from batteries
*When the charger is connected to a power outlet, it is capable of charging the batteries and providing power through the XLR output at the same time | | Operating Temperature | 14 to 95°F (-10 to 35°C) | | Storage Temperature | -4 to 131°F (-20 to 55°C) | | Operating Humidity | 45 to 75% RH | | Dimensions | 9.25 x 2.25 x 5.5" (23.5 x 5.7 x 14 cm) | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 4.125 lb | | Box Dimensions (LxWxH) | 10.2 x 9.5 x 4.55" |
