User Manual for Watson Pro Dual Position Li-Ion Simultaneous Battery Charger Click to enlarge the picture
Contents of the user manual for the Watson Pro Dual Position Li-Ion Simultaneous
- Product category: Chargers Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson Chargers
 |
User manual for the Watson Pro Dual Position Li-Ion Simultaneous contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

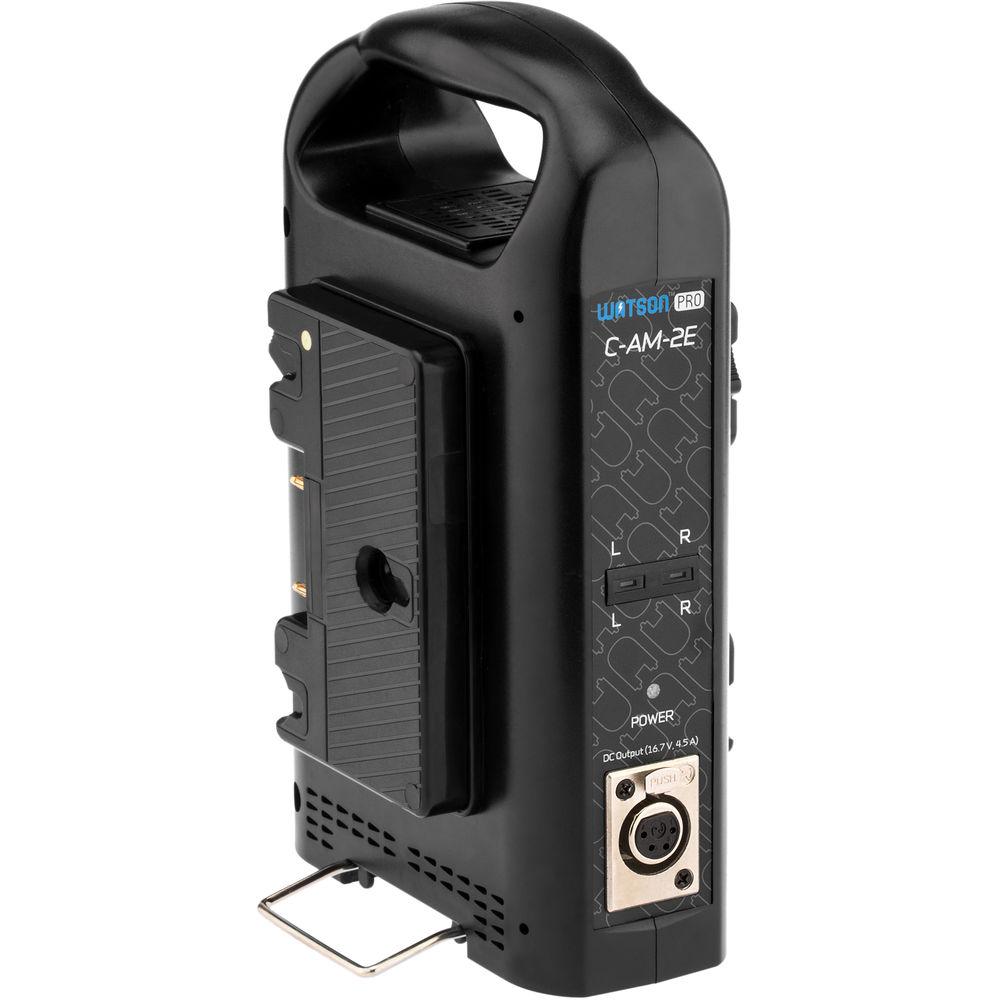

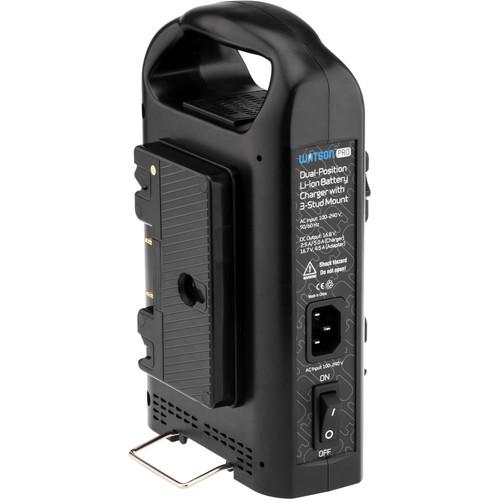

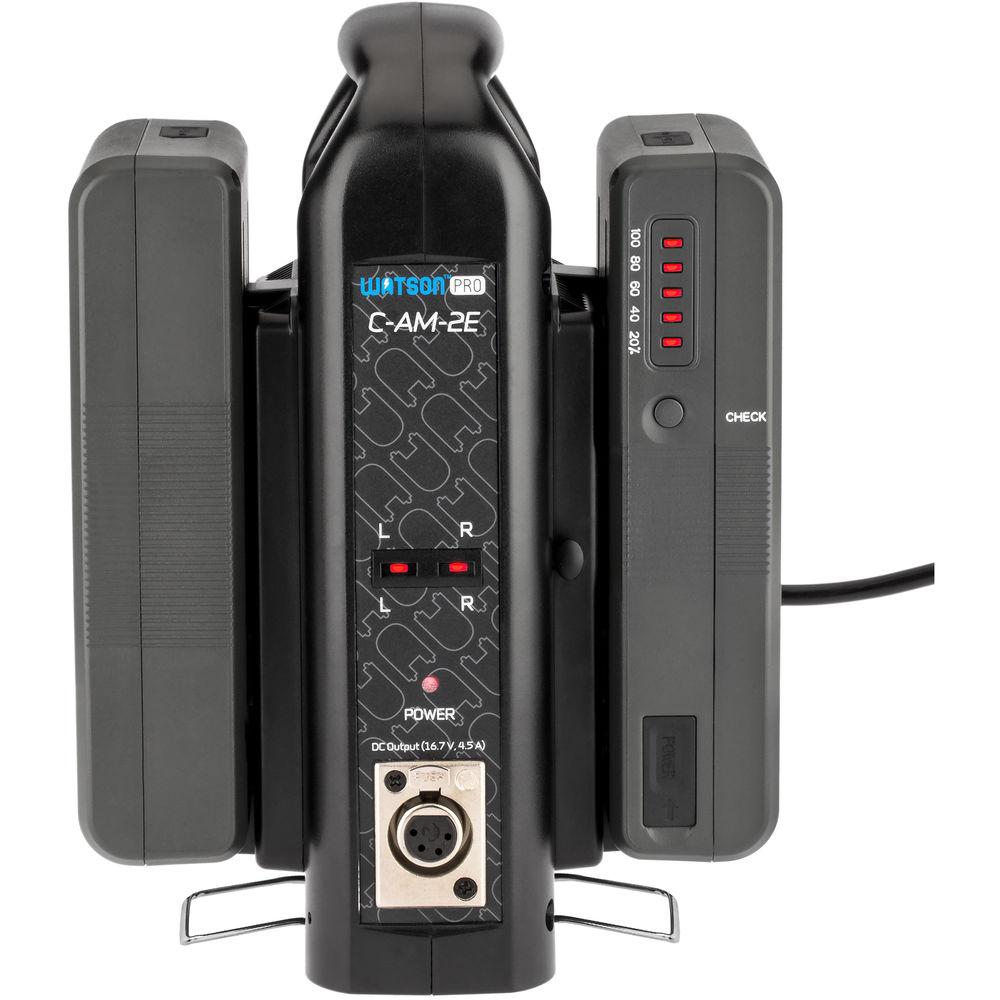

Product description This Watson Pro Dual Position Li-Ion Charger supports two Gold mount batteries and offers a 4-pin XLR power output, providing dual-purpose functionality in a portable, handy design. It's capable of simultaneous charging, and the XLR port offers useful versatility. An ergonomic carry handle, flip-out kickstand, rubberized feet, On/Off switch, and LED status indicators complete the design and allow for comfortable and efficient operation.
This charger delivers simultaneous charging at 2.5A per channel, and provides 5A when charging a single battery. The 4-pin XLR power output can be used to power select cameras from an AC outlet or off of connected batteries. A special feature of this charger is that when it's connected to a power outlet, it is capable of charging the batteries and providing power through the XLR output at the same time, as opposed to one or the other as is more common.
Additionally, an XLR cable is included, giving you everything you need to make full use of this charger. The charger supports 100-240 VAC power input, so it can be used worldwide with the right plug adapters (sold separately). - Key Features
-
- Supports two Gold Mount lithium-ion batteries
- 4-pin XLR DC power output
- Simultaneous charging at 2.5A per channel
- Charges a single battery at 5A
- Capable of charging batteries and providing power through the XLR output at the same time
- Ergonomic carry handle
- Flip-out kickstand
- Rubberized feet
- On/Off switch
- LED status indicators
- 100-240 VAC power input
- XLR cable included
- XLR Power Output
-
- When connected to an AC outlet, delivers power at 16.7V and 4.5A
- When not connected to an outlet and with a battery/batteries attached, delivers 15V and 4.0A
- Approx. Charge Times
- 4.4Ah
Single: 1.2 hours
Dual: 2.5 hours simultaneously
6.6Ah
Single: 1.8 hours
Dual: 3.8 hours simultaneously
8.8Ah
Single: 2.5 hours
Dual: 5.0 hours simultaneously
11Ah
Single: 3.2 hours
Dual: 6.5 hours simultaneously
13.2Ah
Single: 3.8 hours
Dual: 7.6 hours simultaneously
15.6Ah
Single: 4.2 hours

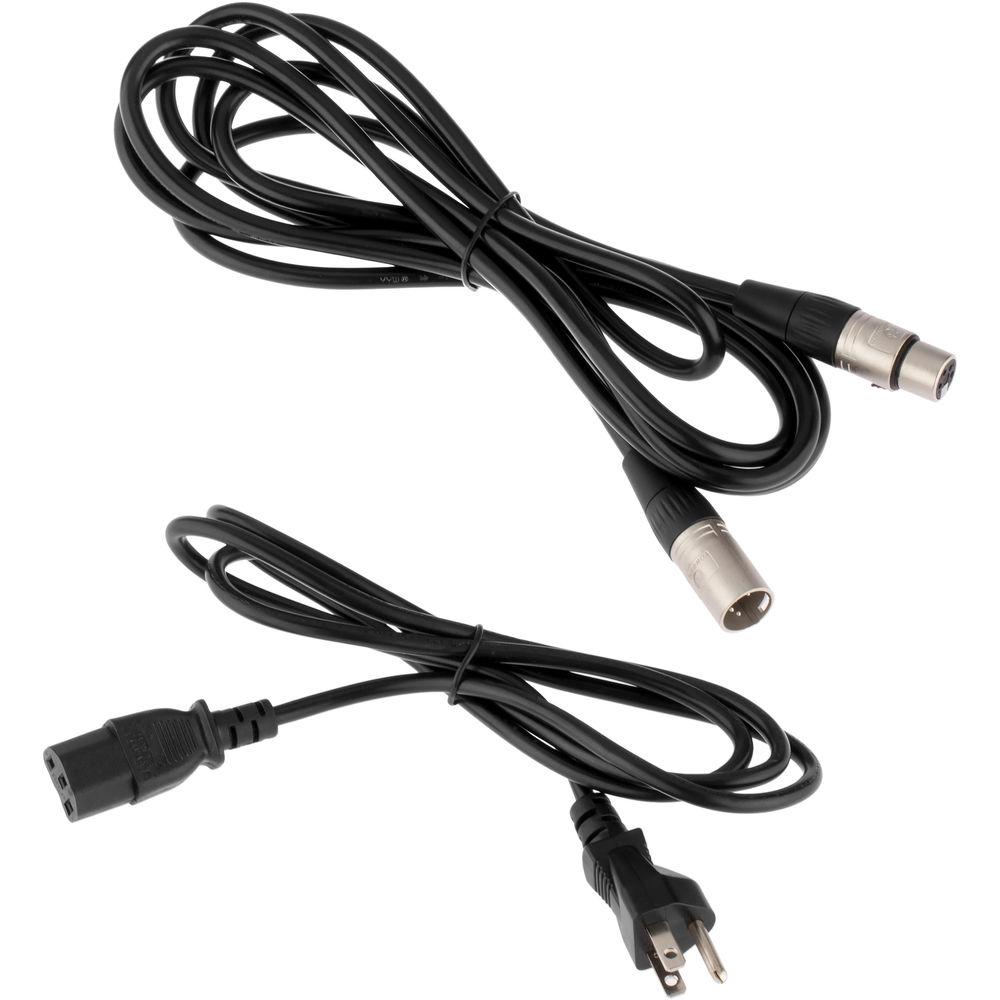

Dual: 8.5 hours simultaneously UPC: 847628592438 In the Box Watson Pro Dual Position Li-Ion Simultaneous Battery Charger (Gold Mount) AC Power Cable 4-Pin XLR Cable Limited 1-Year Warranty User Manual PDF 614kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro Dual Position Li-Ion Simultaneous Battery Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson C-AM-2E Specs | Mount Type | Gold Mount | | AC Input | 100-240 V, 50-60 Hz, 1.5 A | | Output Charging Power | 16.8 V
5 A when charging a single battery
2.5 A per channel when charging two batteries simultaneously | | 4-Pin XLR DC Output | 16.7 V, 4.5 A from power outlet
15 V, 4.0 A from batteries
*When the charger is connected to a power outlet, it is capable of charging the batteries and providing power through the XLR output at the same time | | Operating Temperature | 14 to 95°F (-10 to 35°C) | | Storage Temperature | -4 to 131°F (-20 to 55°C) | | Operating Humidity | 45 to 75% RH | | Dimensions | 9.25 x 2.25 x 5.5" (23.5 x 5.7 x 14 cm) | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 4.08 lb | | Box Dimensions (LxWxH) | 10.1 x 9.5 x 4.55" |
