Watson Pro Four 15A High-Load 14.8V

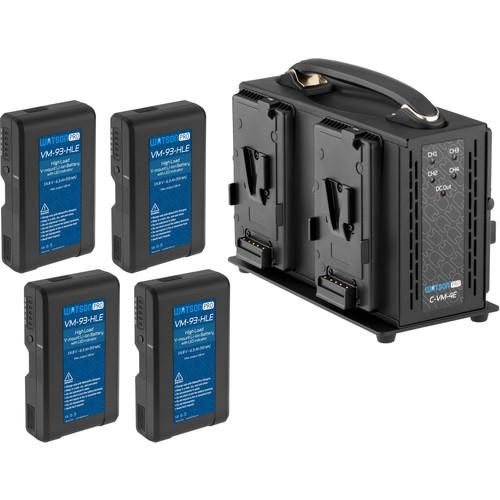

User Manual for Watson Pro Four 15A High-Load 14.8V 93Wh Batteries & Quad Position Charger Kit

• Product category: On Camera Batteries Watson
• Brand: Watson
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Watson On Camera Batteries

Product description

• 4 x Watson Pro 15A High-Load 14.8V 93Wh Li-Ion Battery (V-Mount)
  • Watson Pro VM-93-HLE battery test
  Power up to the most demanding professional cameras with the Watson Pro 15A High-Load 14.8V 93Wh Li-Ion Battery with a V-mount. Featuring high-powered lithium-ion cells organized in a honeycomb pattern, this battery provides up to a constant 15A/180W output, suitable for the most advanced cinema and ENG cameras. At 180W, average runtime is rated at approximately 31 minutes. For safe operation, a built-in intelligent control circuit protects against damage from current or voltage overload, overheating, or short-circuits.

  A 5-LED battery-level meter is located on the side where it's easy to glance at during your shoot and is activated via a battery-level check button right underneath it. When the battery reaches below 9% capacity level, the bottom LED begins to flash automatically as a warning.

  There's also a D-tap port for powering accessories, and a USB 2.0 port for powering USB devices such as receivers. These two outputs can be used simultaneously.
  Key Features
  • • 14.8V, 93Wh lithium-ion battery in a V-mount
    • Supports up to 15A/180W constant draw, for up to the most demanding professional cameras
    • 31-minute average runtime at 180W
    • 5-LED battery-level meter on the side
    • Intelligent control circuit protection
    • Simultaneously active D-tap and USB 2.0 ports
  UPC: 847628592247
• Watson Pro Quad Position Li-Ion Simultaneous Battery Charger (V-Mount)
  • Watson Pro VM-93-HLE battery test
  Offering an efficient charging/powering solution in a portable design, this Watson Pro Quad Position Li-Ion Charger provides simultaneous charging for up to four lithium-ion V-mount batteries and features a 4-pin XLR power output. It has a comfortable carry handle for easy transport, and an On/Off switch and LED status indicators for convenient management. This charger delivers 2.5A per channel when charging multiple batteries and the same when charging a single battery.

  The 4-pin XLR power output can be used to power select cameras from an AC power outlet, and an XLR cable is included, giving you everything you need to make full use of this charger. The charger supports 100-240 VAC power input, so it can be used worldwide with the right plug adapters (sold separately).
  Key Features
  • • Simultaneous charging for up to four V-mount lithium-ion batteries at 2.5A per channel
    • 4-pin XLR DC power output supplies 15V and 4.0A from an AC outlet
    • Carry handle
    • Rubberized feet
    • On/Off switch
    • LED status indicators
    • 100-240 VAC power input
    • XLR cable included
  Approx. Charge Times
  • The following figures are for charging a single battery or two or more:

    4.4Ah
    2.7 hours

    6.6Ah
    4.0 hours

    8.8Ah
    5.3 hours

    11.0Ah
    6.6 hours

    13.2Ah
    7.9 hours
  UPC: 847628592469

• 4 x Pro 15A High-Load 14.8V 93Wh Li-Ion Battery (V-Mount) ysuscctveseqtz
• Limited 2-Year Warranty

• Pro Quad Position Li-Ion Simultaneous Battery Charger (V-Mount)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4 x Watson Pro 15A High-Load 14.8V 93Wh Li-Ion Battery (V-Mount)

  Mount Type	V-mount
  Output Voltage	14.8 V
  Watt Hours	93 Wh
  Capacity	6.3 Ah
  Output Current	Up to constant 15 A
  Output Power	Up to constant 180 W
  Average Runtime	31 min at 180 W
  D-Tap Output	12 V, 10 A max
  USB Output	USB 2.0, 5 V / 1 A
  Dimensions	6.8 x 4 x 1.6" (17.2 x 10.2 x 4.1 cm)
  Weight	1.8 lb (0.82 kg)

  Box Dimensions (LxWxH)	7.559 x 4.882 x 3.228"

• Watson Pro Quad Position Li-Ion Simultaneous Battery Charger (V-Mount)

  Mount Type	V-mount
  AC Input	100-240 V, 50-60 Hz, 3.8 A
  Output Charging Power	16.8 V, 2.5 A per channel or when charging a single battery
  4-Pin XLR DC Output	15 V, 4.0 A from AC power outlet *The XLR output function is active when the unit is switched from "Charger" to "DC Out" on the back
  Operating Temperature	14 to 95°F (-10 to 35°C)
  Storage Temperature	-4 to 131°F (-20 to 55°C)
  Dimensions	6.5 x 4.5 x 9.5" (16.5 x 11.4 x 24.1 cm)
  Weight	6.3 lb (2.9 kg)

  Box Dimensions (LxWxH)	11.5 x 9.15 x 7.85"
