User Manual for Watson Pro Quad Position Li-Ion Simultaneous Battery Charger Click to enlarge the picture
Contents of the user manual for the Watson Pro Quad Position Li-Ion Simultaneous
- Product category: Chargers Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson Chargers
 |
User manual for the Watson Pro Quad Position Li-Ion Simultaneous contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

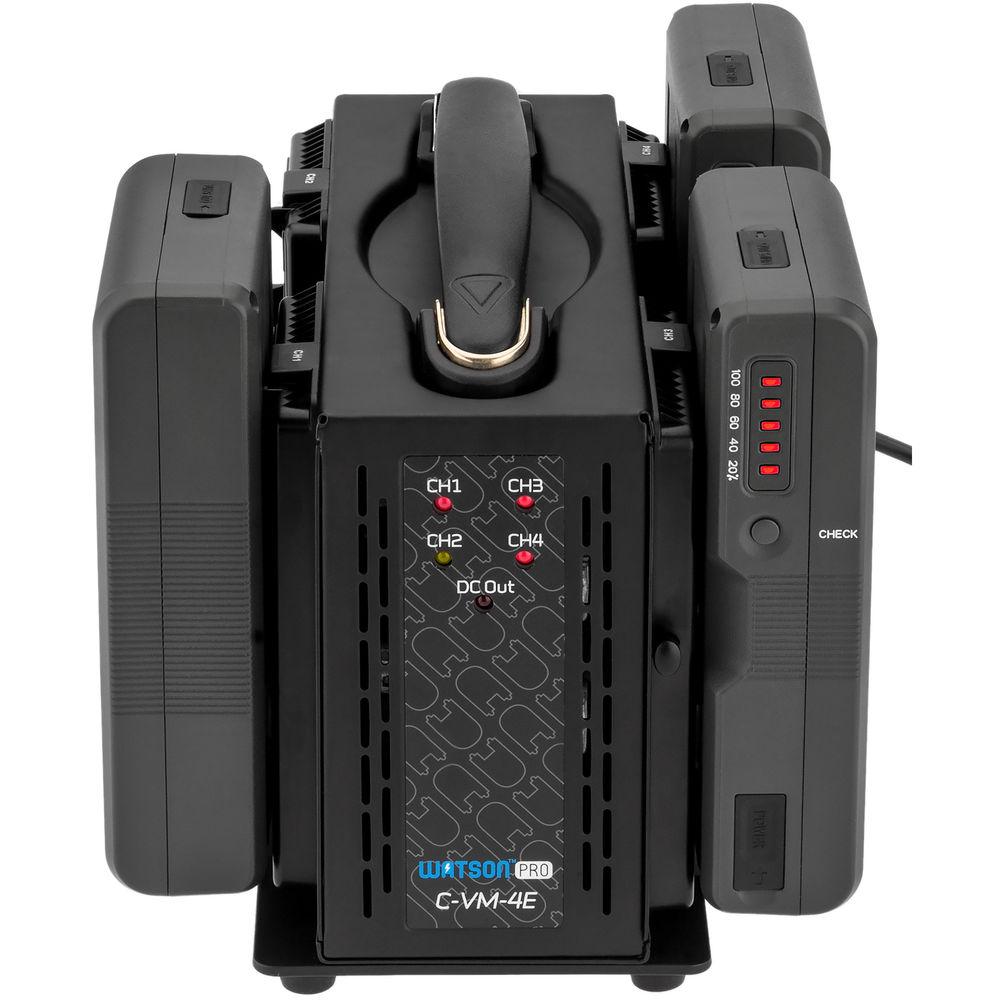

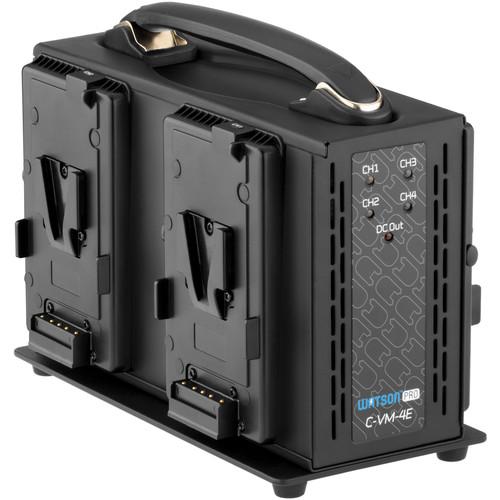

Product description Offering an efficient charging/powering solution in a portable design, this Watson Pro Quad Position Li-Ion Charger provides simultaneous charging for up to four lithium-ion V-mount batteries and features a 4-pin XLR power output. It has a comfortable carry handle for easy transport, and an On/Off switch and LED status indicators for convenient management. This charger delivers 2.5A per channel when charging multiple batteries and the same when charging a single battery.
The 4-pin XLR power output can be used to power select cameras from an AC power outlet, and an XLR cable is included, giving you everything you need to make full use of this charger. The charger supports 100-240 VAC power input, so it can be used worldwide with the right plug adapters (sold separately). - Key Features
-
- Simultaneous charging for up to four V-mount lithium-ion batteries at 2.5A per channel
- 4-pin XLR DC power output supplies 15V and 4.0A from an AC outlet
- Carry handle
- Rubberized feet
- On/Off switch
- LED status indicators
- 100-240 VAC power input
- XLR cable included
- Approx. Charge Times
- The following figures are for charging a single battery or two or more:
4.4Ah
2.7 hours
6.6Ah
4.0 hours
8.8Ah
5.3 hours
11.0Ah
6.6 hours
13.2Ah

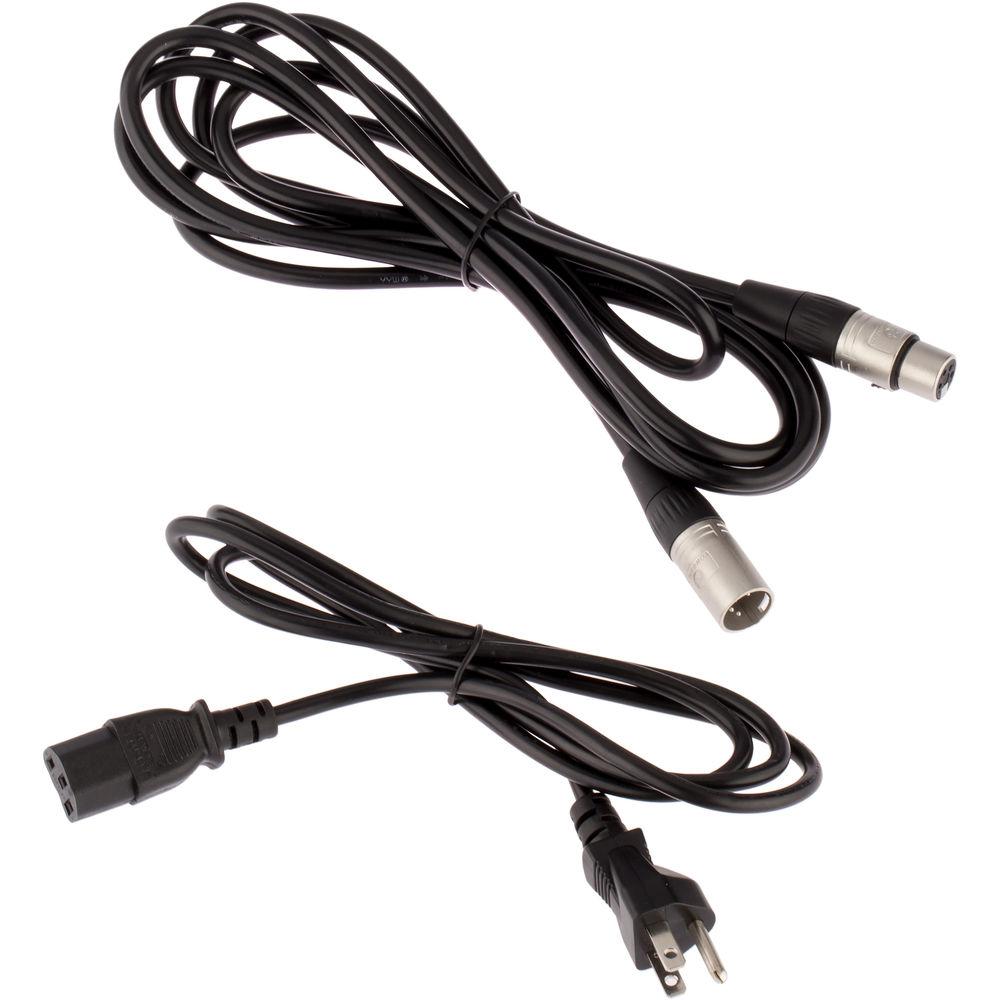

7.9 hours UPC: 847628592469 In the Box Watson Pro Quad Position Li-Ion Simultaneous Battery Charger (V-Mount) AC Power Cable 4-Pin XLR Cable Limited 1-Year Warranty User Manual PDF 588.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Pro Quad Position Li-Ion Simultaneous Battery Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson C-VM-4E Specs | Mount Type | V-mount | | AC Input | 100-240 V, 50-60 Hz, 3.8 A | | Output Charging Power | 16.8 V, 2.5 A per channel or when charging a single battery | | 4-Pin XLR DC Output | 15 V, 4.0 A from AC power outlet

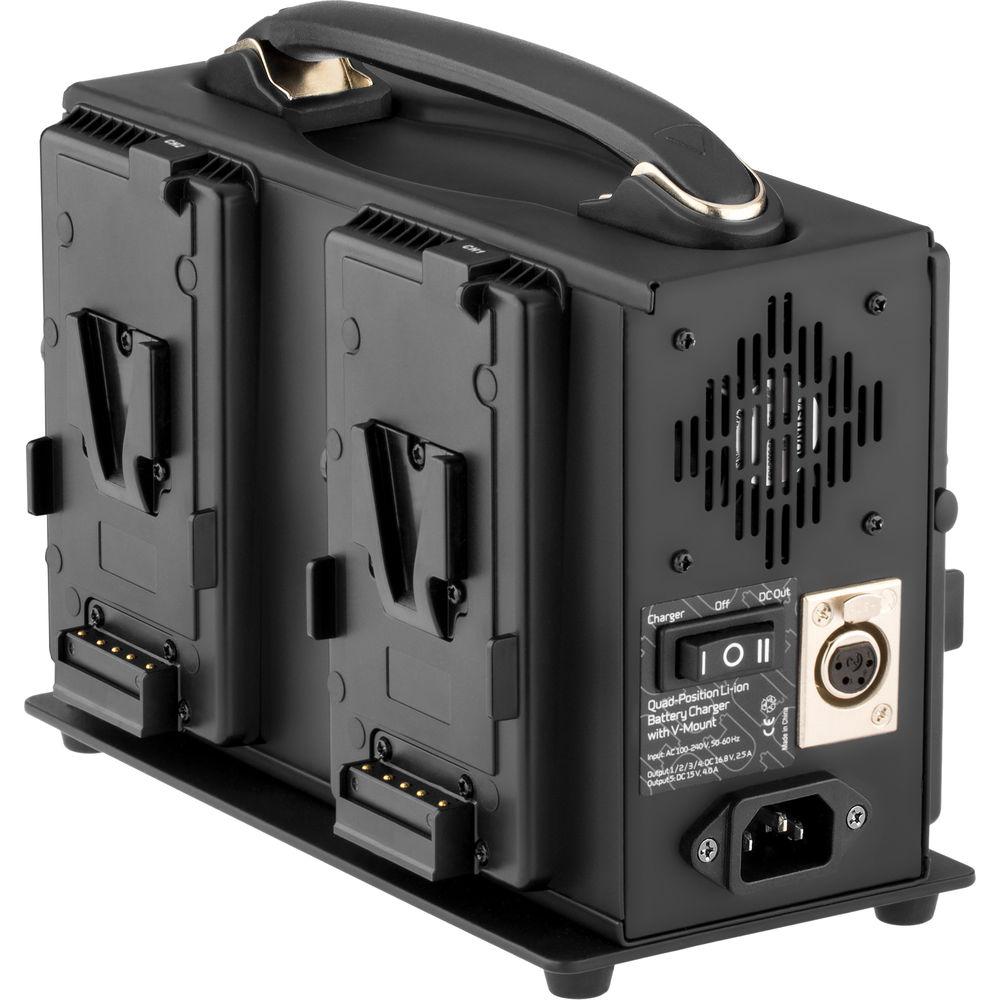

*The XLR output function is active when the unit is switched from "Charger" to "DC Out" on the back | | Operating Temperature | 14 to 95°F (-10 to 35°C) | | Storage Temperature | -4 to 131°F (-20 to 55°C) | | Dimensions | 6.5 x 4.5 x 9.5" (16.5 x 11.4 x 24.1 cm) | | Weight | 6.3 lb (2.9 kg) | | | | Package Weight | 7.945 lb | | Box Dimensions (LxWxH) | 11.5 x 9.15 x 7.85" |
