Watson Pro Two 14.8V 97Wh Batteries

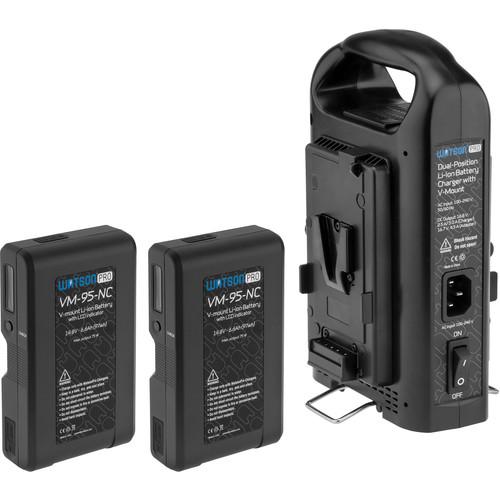

User Manual for Watson Pro Two 14.8V 97Wh Batteries with LCD & Dual Position Charger Kit

• Product category: On Camera Batteries Watson
• Brand: Watson
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Watson On Camera Batteries

Product description

• 2 x Watson Pro 14.8V 97Wh Li-Ion Battery with LCD (V-Mount) Monitor your runtime in real time with the Watson Pro 14.8V 97Wh Li-Ion Battery with LCD with a V-Mount. This lightweight battery provides up to a constant 6.5A/79W output, suitable for up to most mid-size and large professional cameras. At 35W, average runtime is rated at approximately 154 minutes. For safe operation, a built-in intelligent control circuit protects against damage from current or voltage overload, overheating, or short-circuits.

  A backlit LCD located on the side stays on when the battery is in use and shows remaining runtime in minutes and capacity as a percentage bar, and constantly updates in real time. If your source fluctuates in the amount of draw, the LCD will automatically adjust the remaining runtime displayed. When the battery is not in use, a battery-level check button underneath the LCD can be pressed to display remaining capacity percentage. When the battery is charging, capacity percentage and remaining charge time in minutes are displayed.

  There's also a D-tap port for powering accessories, and a USB 2.0 port for powering USB devices such as receivers. These two outputs can be used simultaneously.
  Key Features
  • • 14.8V, 97Wh lithium-ion battery in a V-mount
    • Supports up to 6.5A/79W constant draw
    • 154-minute average runtime at 35W
    • Backlit LCD on the side displays runtime in minutes and capacity as a percentage bar
    • LCD remains lit when the battery is in use and constantly updates in real time dependant on draw
    • Intelligent control circuit protection
    • Simultaneously active D-tap and USB 2.0 ports
  UPC: 847628591998
• Watson Pro Dual Position Li-Ion Battery Charger (V-Mount) This Watson Pro Dual Position Li-Ion Charger supports two V-mount batteries and offers a 4-pin XLR power output, providing dual-purpose functionality in a portable, handy design. It's capable of simultaneous charging, and the XLR port offers useful versatility. An ergonomic carry handle, flip-out kickstand, rubberized feet, On/Off switch, and LED status indicators complete the design and allow for comfortable and efficient operation.

  This charger is able to charge two batteries with up to 6.6Ah capacities simultaneously, delivering 2.5A to each battery. For batteries with capacities of 8.8Ah or more, it provides sequential charging at 5A, first charging one to 85%, and then switching to fully charge both.

  The 4-pin XLR power output can be used to power select cameras from an AC outlet or off of connected batteries. A special feature of this charger is that when it's connected to a power outlet, it is capable of charging the batteries and providing power through the XLR output at the same time, as opposed to one or the other as is more common.

  Additionally, an XLR cable is included, giving you everything you need to make full use of this charger. The charger supports 100-240 VAC power input, so it can be used worldwide with the right plug adapters (sold separately).
  Key Features
  • • Supports two V-mount lithium-ion batteries
    • 4-pin XLR DC power output
    • Capable of sequential and simultaneous charging, depending on capacities
    • Capable of charging batteries and providing power through the XLR output at the same time
    • Ergonomic carry handle
    • Flip-out kickstand
    • Rubberized feet
    • On/Off switch
    • LED status indicators
    • 100-240 VAC power input
    • XLR cable included
  XLR Power Output
  • • When connected to an AC outlet, delivers power at 16.7V and 4.5A
    • When not connected to an outlet and with a battery/batteries attached, delivers 15V and 4.0A
  Simultaneous/Sequential Charging
  • • Charges a single battery at 5A
    • Delivers simultaneous charging at 2.5A per channel for batteries with up to 6.6Ah capacities
    • Provides sequential charging at 5A for batteries with capacities of 8.8Ah or more
  Approx. Charge Times
  • 4.4Ah
    Single: 2.5 hours
    Dual: 2.5 hours simultaneously

    6.6Ah
    Single: 3.8 hours
    Dual: 3.8 hours simultaneously

    8.8Ah
    Single: 2.5 hours
    Dual: 5.0 hours sequentially

    11Ah
    Single: 3.2 hours
    Dual: 6.5 hours sequentially

    13.2Ah
    Single: 3.8 hours
    Dual: 7.6 hours sequentially

    15.6Ah
    Single: 4.2 hours
    Dual: 8.5 hours sequentially
  UPC: 847628592452

• 2 x Pro 14.8V 97Wh Li-Ion Battery with LCD (V-Mount) fwuudqyqxwqequarfrqwuerdzbsrdxuxf
• Limited 2-Year Warranty

• Pro Dual Position Li-Ion Battery Charger (V-Mount)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Watson Pro 14.8V 97Wh Li-Ion Battery with LCD (V-Mount)

  Mount Type	V-mount
  Output Voltage	14.8 V
  Watt Hours	97 Wh
  Capacity	6.6 Ah
  Output Current	Up to constant 6.5 A
  Output Power	Up to constant 79 W
  Average Runtime	154 min at 35 W
  D-Tap Output	12 V, 10 A max
  USB Output	USB 2.0, 5 V / 1 A
  Dimensions	1.6 x 4 x 6.8" (4 x 10.2 x 17.3 cm)
  Weight	1.7 lb (0.76 kg)

  Box Dimensions (LxWxH)	7.48 x 4.961 x 3.465"

• Watson Pro Dual Position Li-Ion Battery Charger (V-Mount)

  Mount Type	V-Mount
  AC Input	100-240 V, 50-60 Hz, 1.5 A
  Output Charging Power	16.8 V 5 A when charging a single battery 2.5 A per channel when charging two batteries simultaneously 5 A per channel when charging two batteries sequentially
  4-Pin XLR DC Output	16.7 V, 4.5 A from power outlet 15 V, 4.0 A from batteries *When the charger is connected to a power outlet, it is capable of charging the batteries and providing power through the XLR output at the same time
  Operating Temperature	14 to 95°F (-10 to 35°C)
  Storage Temperature	-4 to 131°F (-20 to 55°C)
  Operating Humidity	45 to 75% RH
  Dimensions	9.25 x 2.25 x 5.5" (23.5 x 5.7 x 14 cm)
  Weight	2.2 lb (1 kg)

  Box Dimensions (LxWxH)	10.2 x 9.5 x 4.55"
