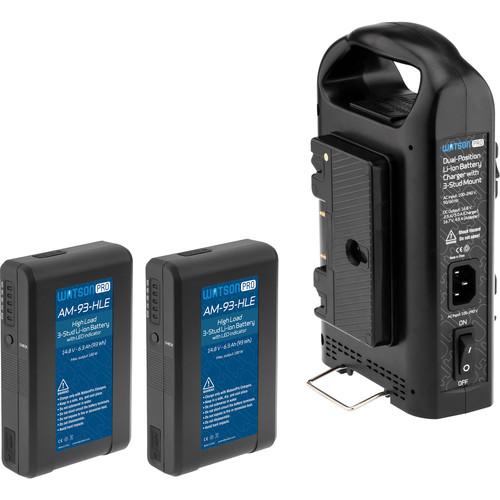

User Manual for Watson Pro Two 15A High-Load 14.8V 93Wh Batteries & Dual Position Charger Kit

• Product category: On Camera Batteries Watson
• Brand: Watson
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Watson On Camera Batteries

Product description

• 2 x Watson Pro 15A High-Load 14.8V 93Wh Li-Ion Battery (Gold Mount) Power up to the most demanding professional cameras with the Watson Pro 15A High-Load 14.8V 93Wh Li-Ion Battery with a Gold mount. Featuring high-powered lithium-ion cells organized in a honeycomb pattern, this battery provides up to a constant 15A/180W output, suitable for the most advanced cinema and ENG cameras. At 180W, average runtime is rated at approximately 31 minutes. For safe operation, a built-in intelligent control circuit protects against damage from current or voltage overload, overheating, or short-circuits.

  A 5-LED battery-level meter is located on the side where it's easy to glance at during your shoot and is activated via a battery-level check button right underneath it. When the battery reaches below 9% capacity level, the bottom LED begins to flash automatically as a warning.

  There's also a D-tap port for powering accessories, and a USB 2.0 port for powering USB devices such as receivers. These two outputs can be used simultaneously.
  Key Features
  • • 14.8V, 93Wh lithium-ion battery in a Gold mount
    • Supports up to 15A/180W constant draw, for up to the most demanding professional cameras
    • 31-minute average runtime at 180W
    • 5-LED battery-level meter on the side
    • Intelligent control circuit protection
    • Simultaneously active D-tap and USB 2.0 ports
  UPC: 847628592186
• Watson Pro Dual Position Li-Ion Simultaneous Battery Charger (Gold Mount) This Watson Pro Dual Position Li-Ion Charger supports two Gold mount batteries and offers a 4-pin XLR power output, providing dual-purpose functionality in a portable, handy design. It's capable of simultaneous charging, and the XLR port offers useful versatility. An ergonomic carry handle, flip-out kickstand, rubberized feet, On/Off switch, and LED status indicators complete the design and allow for comfortable and efficient operation.

  This charger delivers simultaneous charging at 2.5A per channel, and provides 5A when charging a single battery. The 4-pin XLR power output can be used to power select cameras from an AC outlet or off of connected batteries. A special feature of this charger is that when it's connected to a power outlet, it is capable of charging the batteries and providing power through the XLR output at the same time, as opposed to one or the other as is more common.

  Additionally, an XLR cable is included, giving you everything you need to make full use of this charger. The charger supports 100-240 VAC power input, so it can be used worldwide with the right plug adapters (sold separately).
  Key Features
  • • Supports two Gold Mount lithium-ion batteries
    • 4-pin XLR DC power output
    • Simultaneous charging at 2.5A per channel
    • Charges a single battery at 5A
    • Capable of charging batteries and providing power through the XLR output at the same time
    • Ergonomic carry handle
    • Flip-out kickstand
    • Rubberized feet
    • On/Off switch
    • LED status indicators
    • 100-240 VAC power input
    • XLR cable included
  XLR Power Output
  • • When connected to an AC outlet, delivers power at 16.7V and 4.5A
    • When not connected to an outlet and with a battery/batteries attached, delivers 15V and 4.0A
  Approx. Charge Times
  • 4.4Ah
    Single: 1.2 hours
    Dual: 2.5 hours simultaneously

    6.6Ah
    Single: 1.8 hours
    Dual: 3.8 hours simultaneously

    8.8Ah
    Single: 2.5 hours
    Dual: 5.0 hours simultaneously

    11Ah
    Single: 3.2 hours
    Dual: 6.5 hours simultaneously

    13.2Ah
    Single: 3.8 hours
    Dual: 7.6 hours simultaneously

    15.6Ah
    Single: 4.2 hours
    Dual: 8.5 hours simultaneously
  UPC: 847628592438

• 2 x Pro 15A High-Load 14.8V 93Wh Li-Ion Battery (Gold Mount) fwuudqyqxwqequarfrqwuerdzbsrdxuxf
• Limited 2-Year Warranty

• Pro Dual Position Li-Ion Simultaneous Battery Charger (Gold Mount)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Watson Pro 15A High-Load 14.8V 93Wh Li-Ion Battery (Gold Mount)

  Mount Type	Gold mount
  Output Voltage	14.8 V
  Watt Hours	93 Wh
  Capacity	6.3 Ah
  Output Current	Up to constant 15 A
  Output Power	Up to constant 180 W
  Average Runtime	31 min at 180 W
  D-Tap Output	12 V, 10 A max
  USB Output	USB 2.0, 5 V / 1 A
  Dimensions	6.8 x 4 x 2.3" (17.2 x 10.2 x 5.7 cm)
  Weight	1.8 lb (0.82 kg)

  Box Dimensions (LxWxH)	7.559 x 4.882 x 3.386"

• Watson Pro Dual Position Li-Ion Simultaneous Battery Charger (Gold Mount)

  Mount Type	Gold Mount
  AC Input	100-240 V, 50-60 Hz, 1.5 A
  Output Charging Power	16.8 V 5 A when charging a single battery 2.5 A per channel when charging two batteries simultaneously
  4-Pin XLR DC Output	16.7 V, 4.5 A from power outlet 15 V, 4.0 A from batteries *When the charger is connected to a power outlet, it is capable of charging the batteries and providing power through the XLR output at the same time
  Operating Temperature	14 to 95°F (-10 to 35°C)
  Storage Temperature	-4 to 131°F (-20 to 55°C)
  Operating Humidity	45 to 75% RH
  Dimensions	9.25 x 2.25 x 5.5" (23.5 x 5.7 x 14 cm)
  Weight	2.2 lb (1 kg)

  Box Dimensions (LxWxH)	10.1 x 9.5 x 4.55"
