User Manual for Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NiMH and NiCd Batteries Click to enlarge the picture
Contents of the user manual for the Watson Universal 8-Bay Charger for AA,
- Product category: Universal Batteries & Chargers Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson Universal Batteries & Chargers
 |
User manual for the Watson Universal 8-Bay Charger for AA, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

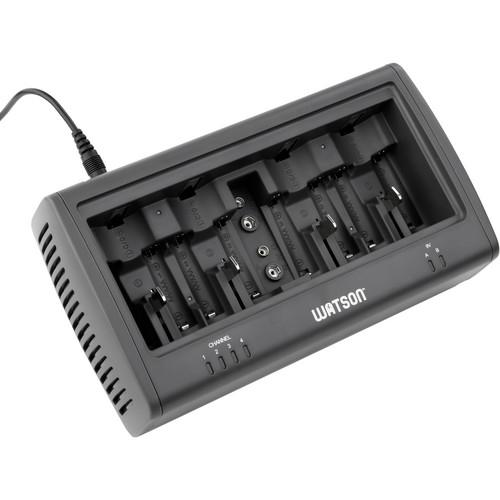

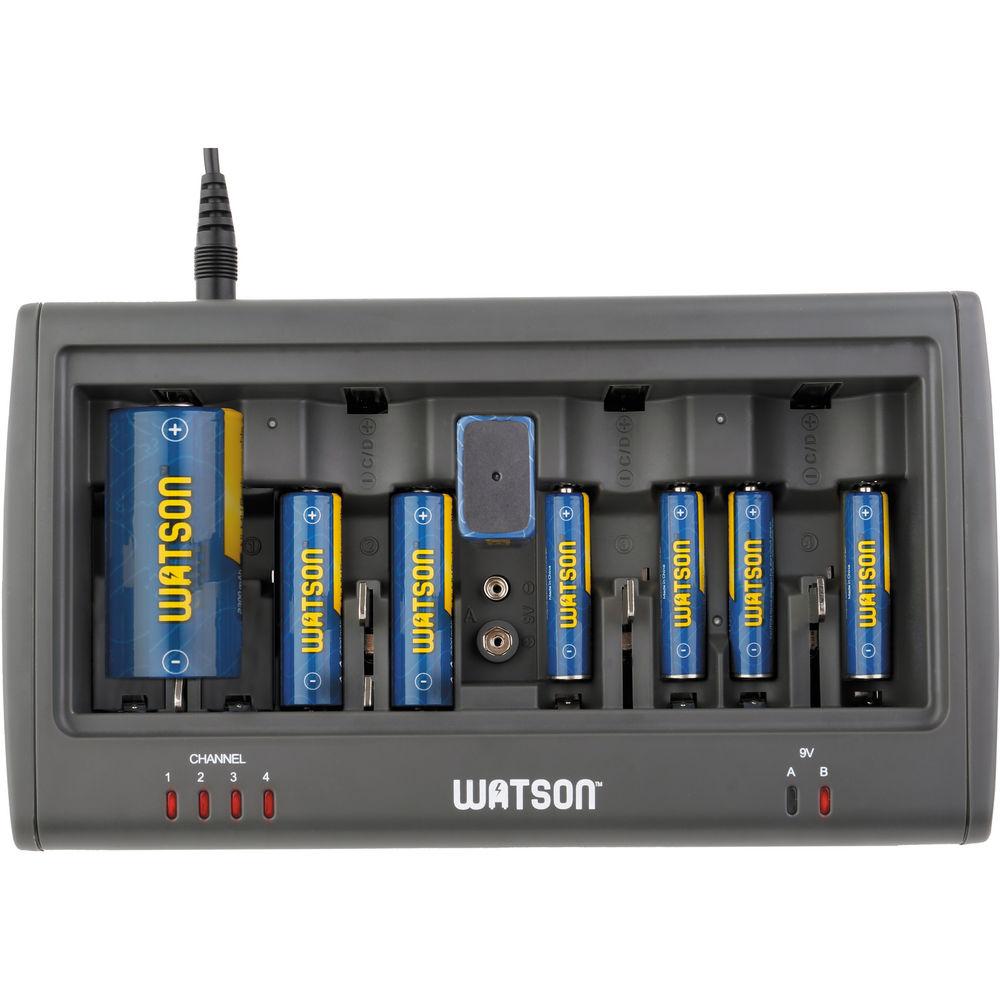

Product description The Universal 8-Bay Charger for AA, AAA, C, D and 9V NiMH and NiCd Batteries from Watson is a versatile unit capable of charging 2, 4, 6 or 8 AA or AAA batteries, or up to 4 C or D cells, in addition to 1-2 9V batteries. Any combination of batteries that will fit can be charged simultaneously, regardless of capacity differences. You can also charge a single additional AA battery placed in the top of one of the C or D slots.
There are 4 separate channels for AA, AAA, C and D cell batteries, and 2 channels for 9V. LED indicators are present to show charging status, flashing green and red to indicate that charging has begun, then switching to solid red and finally to green once charging is complete.
The approximate charging time is as follows: 2.2 hr for 850mAh AAA, 4.2 hr for 2500mAh AA, 3.5 hr for 3500mAh C, 5 hr for 5000mAh D, and 10 hr for 180mAh 9V batteries. A 100-240VAC power adapter is included, enabling use all over the world, and a 12VDC car adapter for on-the-go charging is also supplied. The AC adapter features a convenient fold-out plug for easy storage and travel. - Charges 2, 4, 6 or 8 AA or AAA batteries, or up to 4 C or D cells, in addition to 1-2 9V batteries. Any combination of batteries that will fit can be charged simultaneously, even if their capacities are different. As an added bonus, charge a single AA battery placed in the top of one of the C or D bays.
- 4 separate channels for AA, AAA, C and D cell batteries, and 2 channels for 9V.
- Approximate charging time is as follows: 2.2 hr for 850mAh AAA, 4.2 hr for 2500mAh AA, 3.5 hr for 3500mAh C, 5 hr for 5000mAh D, and 10 hr for 180mAh 9V batteries
- LED indicators show charging status, flashing green and red to indicate that charging has begun, then switching to solid red and finally to green once charging is complete.
- Reverse-polarity protection safeguards the batteries and charger against the incorrect insertion of the batteries.
- Protects against insertion of bad batteries and alkaline or other disposable ones, with flashing red LEDs warning you to remove these batteries.
- Intelligent microprocessor and automatic shut-off circuit sense when batteries are fully charged and terminate charging in order to prevent overload.
- Short-circuit protection prevents overheating, fire or explosion.
- Delta voltage protection recognizes battery type and monitors voltage.
- Independent safety timer control for 9V batteries ensures safe, effective charging.

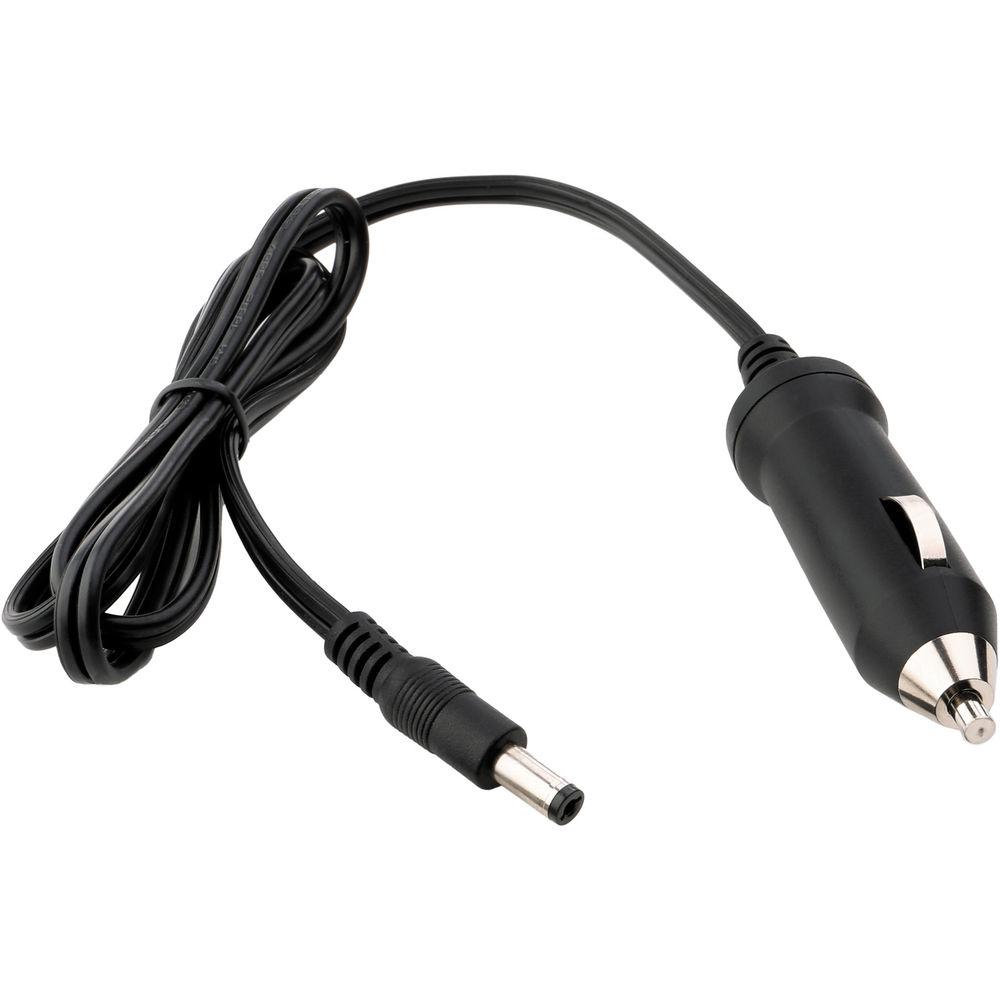

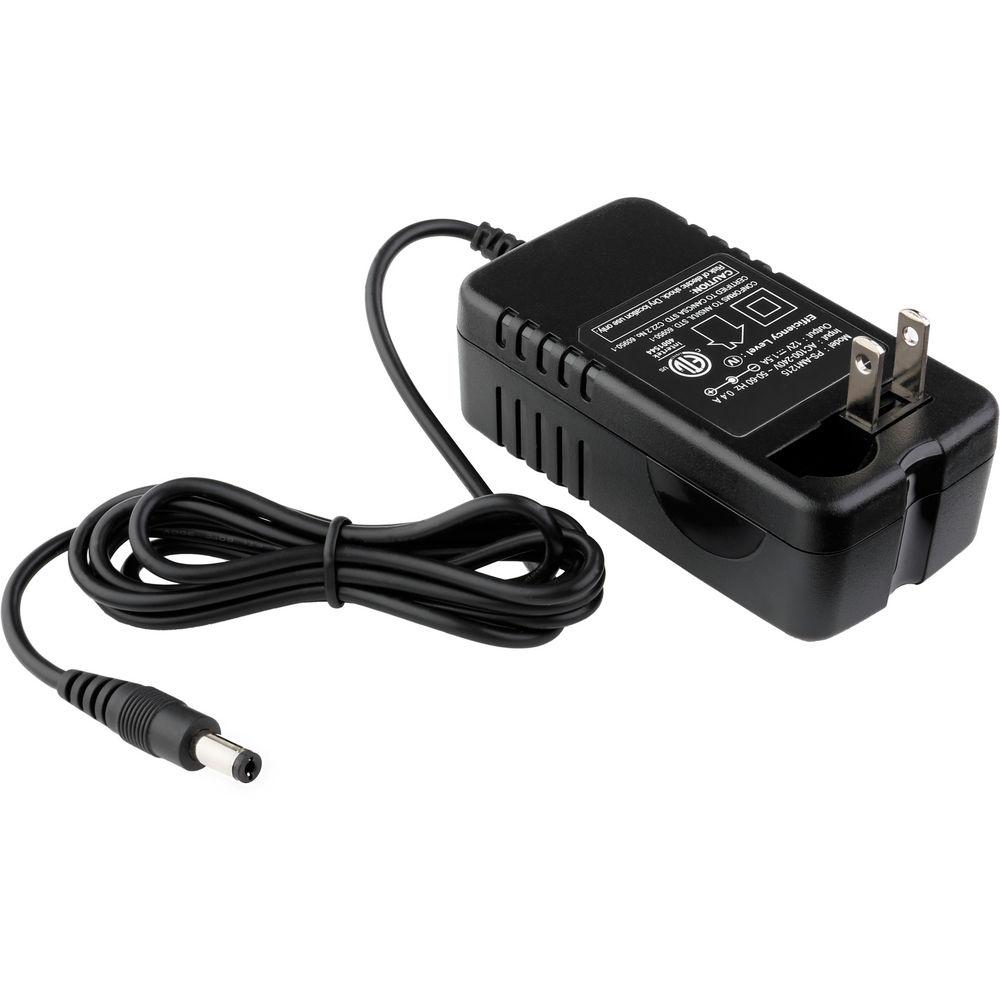

- A 100-240VAC power adapter with convenient fold-out plug is included, enabling use all over the world. Additionally, a 12VDC car adapter for on-the-go charging is supplied.
UPC: 847628572737 In the Box Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NiMH and NiCd Batteries 100-240VAC Power Adapter 12VDC Car Adapter Limited 1-Year Warranty User Manual PDF 590.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NiMH and NiCd Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWatson NM-U8C Specs | | | Battery Weight | 14.1 oz / 400 g | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Charging Bays | 8 x AA, AAA
2 x C, D
2 x 9V | | Supported Battery Chemistry | Ni-Cd, Ni-MH | | Charging Voltage | 1.5 VDC
3.0 VDC
10.5 VDC | | Charging Amperage | 150 to 1000 mA | | DC Input Power | 12 to 16 VDC | | Charger Dimensions | 9.5 x 5.0 x 2.5" / 241.00 x 127.00 x 64.00 mm | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.1 x 6.5 x 3.2" |
