User Manual for Watson Universal 8-Bay Charger Kit with AAA, AA and 9V NiMH Batteries and Spacers Click to enlarge the picture
Contents of the user manual for the Watson Universal 8-Bay Charger Kit with
- Product category: Universal Batteries & Chargers Watson
- Brand: Watson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Watson Universal Batteries & Chargers
|
User manual for the Watson Universal 8-Bay Charger Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Watson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Watson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Watson product will considerably shorten its lifespan!
|

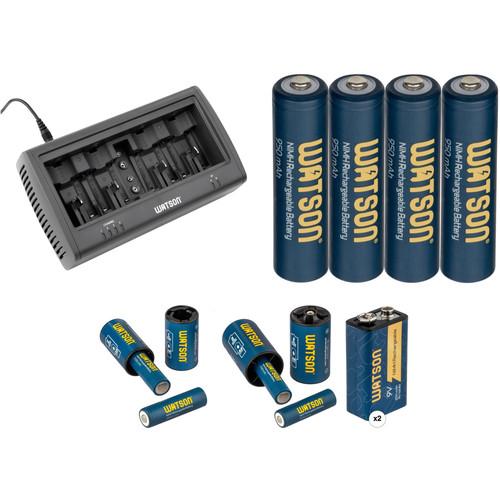

Product description This Watson Universal 8-Bay Charger Kit from bundles the Universal 8-Bay Charger for AA, AAA, C, D and 9V NiMH and NiCd batteries; a 4-pack of 1000mAh AAA NiMH rechargeable batteries; 2 sets of two identical plastic spacers and two 1.2V, 2300mAh AA batteries, which fit into the spacers to enable insertion into C and D battery slots; and a pair of 9V, 250mAh, rechargeable NiMH batteries.
The Universal 8-Bay Charger is a versatile unit capable of charging 2, 4, 6 or 8 AA or AAA batteries, or up to 4 C or D cells, in addition to 1-2 9V batteries. Any combination of batteries that will fit can be charged simultaneously, regardless of capacity differences. You can also charge a single additional AA battery placed in the top of one of the C or D slots. There are 4 separate channels for AA, AAA, C and D cell batteries, and 2 channels for 9V. LED indicators are present to show charging status, flashing green and red to indicate that charging has begun, then switching to solid red and finally to green once charging is complete. - Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NiMH and NiCd Batteries The Universal 8-Bay Charger for AA, AAA, C, D and 9V NiMH and NiCd Batteries from Watson is a versatile unit capable of charging 2, 4, 6 or 8 AA or AAA batteries, or up to 4 C or D cells, in addition to 1-2 9V batteries. Any combination of batteries that will fit can be charged simultaneously, regardless of capacity differences. You can also charge a single additional AA battery placed in the top of one of the C or D slots.
There are 4 separate channels for AA, AAA, C and D cell batteries, and 2 channels for 9V. LED indicators are present to show charging status, flashing green and red to indicate that charging has begun, then switching to solid red and finally to green once charging is complete.
The approximate charging time is as follows: 2.2 hr for 850mAh AAA, 4.2 hr for 2500mAh AA, 3.5 hr for 3500mAh C, 5 hr for 5000mAh D, and 10 hr for 180mAh 9V batteries. A 100-240VAC power adapter is included, enabling use all over the world, and a 12VDC car adapter for on-the-go charging is also supplied. The AC adapter features a convenient fold-out plug for easy storage and travel. - Charges 2, 4, 6 or 8 AA or AAA batteries, or up to 4 C or D cells, in addition to 1-2 9V batteries. Any combination of batteries that will fit can be charged simultaneously, even if their capacities are different. As an added bonus, charge a single AA battery placed in the top of one of the C or D bays.
- 4 separate channels for AA, AAA, C and D cell batteries, and 2 channels for 9V.
- Approximate charging time is as follows: 2.2 hr for 850mAh AAA, 4.2 hr for 2500mAh AA, 3.5 hr for 3500mAh C, 5 hr for 5000mAh D, and 10 hr for 180mAh 9V batteries
- LED indicators show charging status, flashing green and red to indicate that charging has begun, then switching to solid red and finally to green once charging is complete.
- Reverse-polarity protection safeguards the batteries and charger against the incorrect insertion of the batteries.
- Protects against insertion of bad batteries and alkaline or other disposable ones, with flashing red LEDs warning you to remove these batteries.
- Intelligent microprocessor and automatic shut-off circuit sense when batteries are fully charged and terminate charging in order to prevent overload.
- Short-circuit protection prevents overheating, fire or explosion.
- Delta voltage protection recognizes battery type and monitors voltage.
- Independent safety timer control for 9V batteries ensures safe, effective charging.
- A 100-240VAC power adapter with convenient fold-out plug is included, enabling use all over the world. Additionally, a 12VDC car adapter for on-the-go charging is supplied.
UPC: 847628572737 - Watson AAA NiMH Rechargeable Batteries (950mAh, 1.2V, 4-Pack) This 4-pack of AAA NiMH Rechargeable Batteries from Watson are ideal for digital cameras, flashes, and other compatible photographic equipment. The batteries feature a capacity of 950mAh and an output of 1.2V. Additionally, the batteries can be recharged up to 500 times. UPC: 847628009059
- Watson Battery Spacer AA to C-Size Batteries (1.2V, 2500mAh) The Watson Battery Spacer AA to C-Size Batteries is a convenient way to convert readily available, and easy to find, AA batteries to C-size batteries. Use in flashlights, radios, or toys that take C-size batteries. Simply slide the battery into the spacer and it's ready to use, with a capacity of 2500 mAh and power output of 1.2 V. These batteries can be recharged up to 500 times and are ready to use right out of the package. UPC: 847628011557
- Watson Battery Spacer AA to D-Size Batteries (1.2V, 2500mAh) The Watson Battery Spacer AA to D-Size Batteries is a convenient way to convert readily available, and easy to find, AA batteries to D-size batteries. Use in flashlights, radios, or toys that take D-size batteries. Simply slide the battery into the spacer and it's ready to use, with a capacity of 2500 mAh and power output of 1.2 V. These batteries can be recharged up to 500 times and are ready to use right out of the package. UPC: 847628011489
- 2 x Watson 9V Rechargeable NiMH Battery (250mAh) The Watson 9V Rechargeable NiMH 250mAh Battery helps you reduce battery costs by offering a rechargeable alternative. This 250mAh NiMH battery has an output voltage of 9V and supports up to 500 charge cycles. UPC: 847628009110
In the Box - Universal 8-Bay Charger for AA, AAA, C, D and 9V NiMH and NiCd Batteries trffyzxarzcesravxxsvx
- 100-240VAC Power Adapter
- 12VDC Car Adapter
- Limited 1-Year Warranty
- AAA NiMH Rechargeable Batteries (950mAh, 1.2V, 4-Pack)
- Battery Spacer AA to C-Size Batteries (1.2V, 2500mAh)
- Battery Spacer AA to D-Size Batteries (1.2V, 2500mAh) trffyzxarzcesravxxsvx
- 2 x 9V Rechargeable NiMH Battery (250mAh)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Watson Universal 8-Bay Charger Kit with AAA, AA and 9V NiMH Batteries and Spacers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Watson Universal 8-Bay Charger for AA, AAA, C, D and 9V NiMH and NiCd Batteries
| | | Battery Weight | 14.1 oz / 400 g | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Charging Bays | 8 x AA, AAA
2 x C, D
2 x 9V | | Supported Battery Chemistry | Ni-Cd, Ni-MH | | Charging Voltage | 1.5 VDC
3.0 VDC
10.5 VDC | | Charging Amperage | 150 to 1000 mA | | DC Input Power | 12 to 16 VDC | | Charger Dimensions | 9.5 x 5.0 x 2.5" / 241.00 x 127.00 x 64.00 mm | | | | Box Dimensions (LxWxH) | 9.1 x 6.5 x 3.2" | - Watson AAA NiMH Rechargeable Batteries (950mAh, 1.2V, 4-Pack)
| | | Battery Type | 4 x AAA | | Battery Chemistry | NiMH | | Battery Voltage | 1.2 V | | Capacity (mAh) | 950 mAh | | Capacity (mAh) | Typical: 950 mAh | | Maximum Recharge Cycles | 500 | | | | Box Dimensions (LxWxH) | 5.5 x 3.5 x 0.1" | - Watson Battery Spacer AA to C-Size Batteries (1.2V, 2500mAh)
| | | Battery Type | 2 x AA | | Battery Chemistry | NiMH | | Battery Voltage | 1.2 V | | Capacity (mAh) | 2500 mAh | | Capacity (mAh) | Typical: 2500 mAh | | Maximum Recharge Cycles | 500 | | Battery Weight | 1.1 oz / 31 g | | | | Box Dimensions (LxWxH) | 15.7 x 5.85 x 1.35" | - Watson Battery Spacer AA to D-Size Batteries (1.2V, 2500mAh)
| | | Battery Type | 2 x AA | | Battery Chemistry | NiMH | | Battery Voltage | 1.2 V | | Capacity (mAh) | 2500 mAh | | Capacity (mAh) | Typical: 2500 mAh | | Maximum Recharge Cycles | 500 | | Battery Weight | 1.1 oz / 31 g | | | | Box Dimensions (LxWxH) | 19.2 x 8.8 x 5.2" | - 2 x Watson 9V Rechargeable NiMH Battery (250mAh)
| | | Battery Type | 1 x 9 V | | Battery Chemistry | NiMH | | Battery Voltage | 9 V | | Capacity (mAh) | 250 mAh | | Capacity (mAh) | Typical: 250 mAh | | Maximum Recharge Cycles | 500 | | | | Box Dimensions (LxWxH) | 7.3 x 6.25 x 3.95" |
