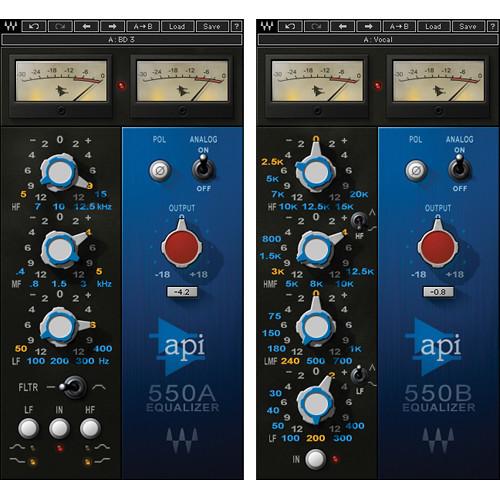

Product description The API 550 from Waves is a plug-in developed in association with API that models two classic API equalization modules. The API 550A module is modeled on the legendary late '60s hardware and provides reciprocal and repeatable equalization at fifteen points in five steps of boost, divided into three overlapping ranges. The high and low frequency ranges are individually selectable as either peaking or shelving, and a band-pass filter can be inserted independently of all other settings.
The API 550B functions both as a problem solver and a sweetening device, and provides four overlapped EQ bands with seven switchable filter frequencies spanning up to five octaves per band. "Proportional Q" automatically widens the filter bandwidth at minimal settings and narrows it at higher settings. The EQ can undo previous processing, or even perform reverse tonal modifications. - API 550A
- Five selected frequency centers per band
Maximum 12 dB of boost/cut per band in 2-3 dB steps
"Proportional Q" narrows filter Q at extremes
High headroom, +30 dB clip level - API 550B
- Seven selected frequency centers
12 dB of boost/cut per band
Bands 1 and 4 offer shelf/peak switching
High headroom, +30 dB clip level - General
- Modeled vintage EQ plug-ins
Up to 24-bit/96 kHz resolution
Mono and stereo components
SoundGrid license compatible with MultiRack Native, StudioRack Native, MultiRack SoundGrid, StudioRack SoundGrid, and eMotion ST Mixer Table of Contents
|
Upload User Manual
Have you got an user manual for the Waves API 550 - Classic Equalizer Plug-Ins in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWaves API550TDM Specs | System Requirements | Mac
Intel Core i3, i5, i7, Xeon
OS X 10.9.5 to 10.11.4
10.8.5 for Pro Tools 10 only
4 GB RAM
4 GB free hard drive space
1024x768 minimum screen resolution (1280x1024, 1600x1024 recommended)
USB displays are not supported as the primary display
For Native plug-in use, host software that supports AAX Native, Audio Units, RTAS, AudioSuite, VST, or VST3 formats
Windows
Intel Core i3, i5, i7, Xeon
Windows 7 SP1, Windows 8.1, Windows 10 (all 64-bit)
4 GB RAM
4 GB free hard drive space
1024x768 minimum screen resolution (1280x1024, 1600x1024 recommended)
For Native plug-in use, host software that supports AAX Native, RTAS, AudioSuite, VST, or VST3 formats |
