Product description The Waves Server One Combo is a SoundGrid DSP server, MultiRack software, and plug-in bundle designed to provide powerful plug-in processing capabilities for sound engineers using SoundGrid-compatible live mixing consoles in concert venues, theaters, houses of worship, clubs, and other live stage applications. It includes a SoundGrid Server One DSP server, a Gigabit Ethernet network switch, three Cat 6e Ethernet cables, and a Waves software package featuring six plug-ins and a plug-in host.The SoundGrid Server One features an Intel Skylake i5 CPU and 8GB of RAM. It handles the task of processing multiple instances of Waves plug-ins with latency as low as 0.8 ms at sample rates up to 96 kHz. It includes a power cable.The Netgear GS108 V4 switch allows you to connect multiple devices such as computers and SoundGrid interfaces to a SoundGrid audio network. It provides eight RJ45 ports and LED status indicators. A power adapter is supplied.The Waves software package includes MultiRack and six Waves plug-ins: H-Delay, Renaissance Reverb, Renaissance Axx, Renaissance Bass, Renaissance Equalizer, and eMo D5 Dynamic. The MultiRack software allows you to enjoy numerous, concurrent instances of Waves plug-ins in low latency and with sidechain functionality. - SoundGrid Server One Features
-
- Powerful low-latency DSP server
- Latency as low as 0.8 ms
- Intel Skylake i5 CPU
- 8GB RAM
- Neutrik etherCON connector
- Includes power cable
- Netgear GS108 V4 Features
-
- Gigabit Ethernet network switch
- Connects all your computers and SoundGrid devices to a SoundGrid audio network
- Eight RJ45 ports
- LED status indicators
- Includes power adapter

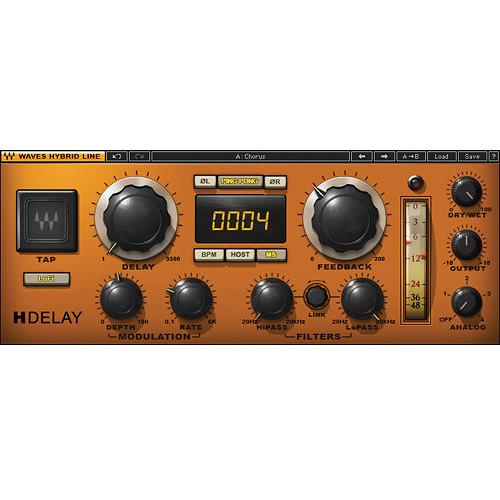

- H-Delay Features
-
- Hybrid delay plug-in
- Up to 3.5 seconds delay time
- Variable pitch delay time behavior
- Analog character and LoFi modes
- Infinite feedback support
- LFO-controlled pitch modulation
- Tap Pad for easy delay time setting
- Sync-to-host or manual BPM
- Full MIDI support
- Supports sample rates up to 96 kHz
- Mono, mono-to-stereo, and stereo components

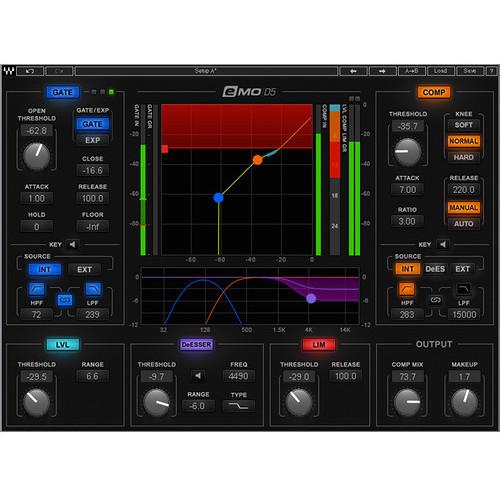

- eMo D5 Features
-
- Five dynamics processors in one plug-in with parallel detection
- Gate and compressor with dedicated high- / low-pass filters and an external sidechain option
- Limiter with zero latency and sharp attack
- DeEsser with pre- / post-compressor routing
- C-weighted leveler with an adjustable range
- Combined gain-reduction meter for the leveler, compressor, and limiter
- Zero latency
- Low CPU consumption
- Fully compatible with touchscreens
- Can be used on its own, or as part of the eMotion LV1 live mixer channel strip
- Supports sample rates up to 96 kHz
- Mono and stereo components

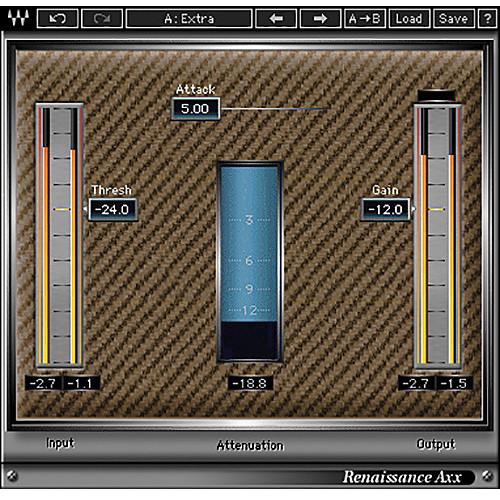

- Renaissance Axx Features
-
- Easy-to-use compressor plug-in
- Ideal for guitar and bass
- Streamlined controls
- Fixed ratio
- Automatic release value
- Built-in output limiter to prevent clipping
- Meters for input, output, and gain reduction
- Supports sample rates up to 192 kHz
- Single-window GUI
- Mono and stereo components

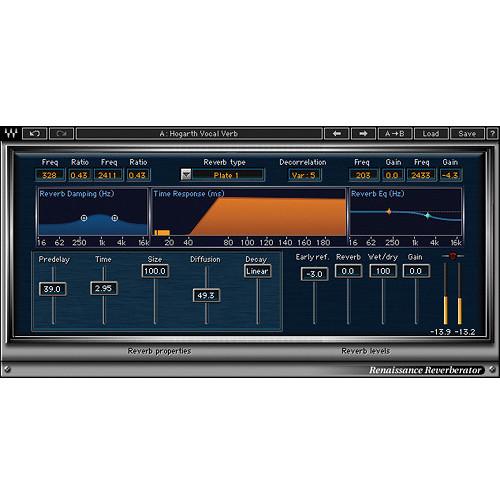

- Renaissance Reverb Features
-
- Twelve reverb types
- Decorrelation for subtle early reflections changes and fine tuning
- Negative predelay value delays the dry signal
- Supports sample rates up to 96 kHz
- Single-window GUI
- Mono to stereo and stereo components

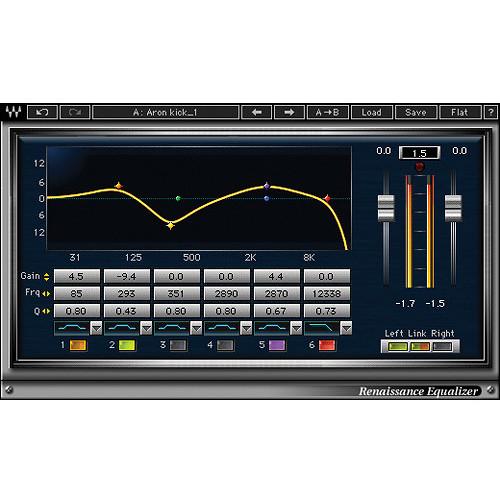

- Renaissance Equalizer Features
-
- Components with 2, 4, and 6 bands
- Filter curves based on vintage analog equalizers
- Selectable filter type per band
- Output controls
- Link/unlink option for stereo component
- Intuitive operation
- Supports sample rates up to 192 kHz
- Single-window GUI
- Mono and stereo components

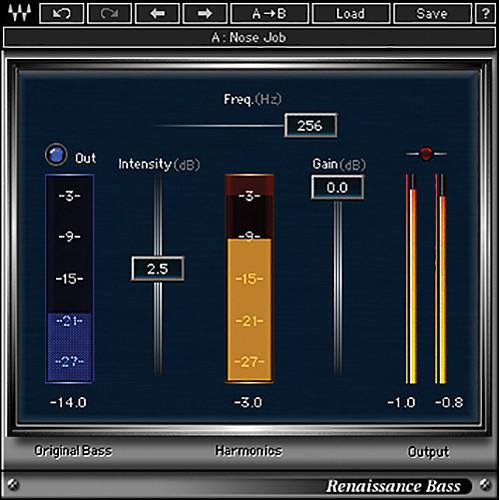

- Renaissance Bass Features
-
- Bigger, tighter bass from any system
- Extends perceived bass response by up to 1.5 octaves
- Clip-free performance
- Supports sample rates up to 192 kHz
- Single-window GUI
- Mono and stereo components

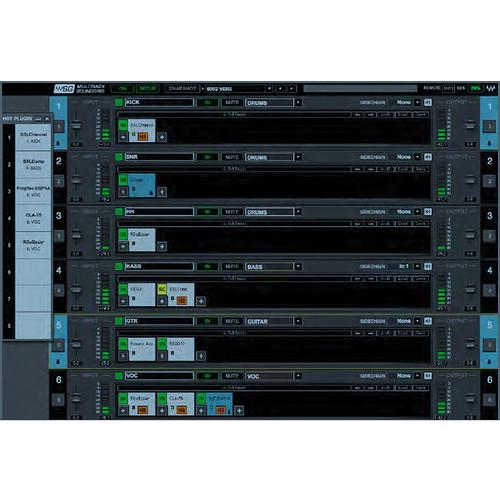

- Multirack Features
-
- Allows multiple, simultaneous instances of Waves plug-ins
- Full recall, presets, and snapshots
- Supports plug-in chains
- Sidechaining capabilities
- Simultaneous processing and recording
- Supports 5.1 and 7.1 surround sound plug-ins
- Hot Plug-in Panel displays gain reduction meters for each plug-in
In the Box Waves Server One Combo - SoundGrid Server, Multirack Software, and Plug-In Bundle MultiRack SoundGrid Software for Front Of House and Monitor Engineers (Native License Included, Download) eMO D5 Dynamics - Dynamics Processors Plug-In (Native/SoundGrid, Download) H-Delay Hybrid Delay Delay Plug-In (Native/SoundGrid, Download) Renaissance Axx - Dynamics Plug-In (Native/SoundGrid, Download) Renaissance Bass - Bass Enhancement Plug-In (Native/SoundGrid, Download) Renaissance Equalizer - EQ Plug-In (Native/SoundGrid, Download) Renaissance Reverb - Classic Reverb Plug-In (Native/SoundGrid, Download) Netgear GS108 V4 SoundGrid-Qualified Switch (8 Ports) 3 x 7' / 2.1m Cat 6e Ethernet Cables Power Cable for SoundGrid Server One Limited 1-Year Warranty for SoundGrid Server Limited Lifetime Warranty for Netgear Switch Limited 2-Year Warranty for Netgear Power Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Waves Server One Combo - SoundGrid Server, Multirack Software, and Plug-In Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWaves SG1CMB Specs | | | Rack Height | 2 RU | | Processor | Intel Skylake i5 | | Motherboard | Gigabyte GA-B150N-GSM | | RAM | 8 GB | | LAN | Intel LAN card | | Connectors | 1 x Neutrik etherCON
2 x USB Type-A
2 x HDMI | | Latency | 40 samples / 0.83 ms @ 48 kHz
80 samples / 0.83 ms @ 96 kHz | | Power Consumption | 50 W @ 120 V
46 W @ 220 V | | Dimensions (L x H x D) | 19.0 x 3.5 x 11.8" / 483 x 89 x 300 mm | | Weight | 16.7 lb / 7.6 kg | | | | Speed | 10/100/1000 Mbps | | Ports | 8 x RJ45 | | Bandwidth | 16 Gbps | | Jumbo Frame Support | Yes (up to 9K packet size) | | Acoustic Noise (ANSI-S10.12) | 0 | | MAC Table Size | 4K | | Packet Buffer Size | 192 kB | | IEEE Standards | IEEE 802.1p Class of Service
IEEE 802.3x full-duplex flow control
IEEE 802.3az (Energy Efficient Ethernet) | | QoS (Quality of Service) | DSCP
IEEE 802.1p CoS
WRED (Weighted Deficit Round Robin)
1:2:4:8 (WRR queue ratio) | | Forwarding Mode | Store and forward | | MTBF | 9,727,733 hours | | Class | FCC Class B | | Certifications | CE mark, commercial
CSA certified (CSA 22.2 #950)
UL listed (UL 1950)
cUL IEC 950
EN 60950 | | LEDs | Power status
Speed, link, and activity (per port) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% maximum relative humidity (non-condensing) | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 95% maximum relative humidity (non-condensing) | | Altitude | 10,000' / 3048 m (operating and storage) | | Power Requirement | Power adapter (12 V, 0.5 A) | | Power Consumption (Maximum) | 4.9 W | | Dimensions (W x D x H) | 6.2 x 4.0 x 1.1" / 158 x 101 x 27 mm | | Weight | 1.1 lb / 0.5 kg | | | | System Requirements | Mac
Intel Core i5, i7, Xeon
OS X 10.10.5 to 10.12.6
8 GB RAM
8 GB free hard-drive space on system drive
1024 x 768 minimum screen resolution (1280 x 1024 or 1600 x 1024 recommended)
USB displays are not supported as the primary display
For Native plug-in use, host software that supports AAX Native, Audio Units, AudioSuite, VST, or VST3 formats
Windows
Intel Core i3, i5, i7, and Xeon; AMD Quad-Core
Windows 7 SP1, Windows 8.1, Windows 10 (all 64-bit)
4 GB RAM
8 GB free hard-drive space on system drive
1024 x 768 minimum screen resolution (1280 x 1024 or 1600 x 1024 recommended)
For Native plug-in use, host software that supports AAX Native, AudioSuite, VST, or VST3 formats
Support for Visually Impaired Users
Mac OS X Sierra 10.12.4
VoiceOver Utility enabled
Pro Tools 12.7
Logic 10.3.1
Preset management via the WaveSystem Toolbar is currently not supported | | Sample Rate | Up to 192 kHz (Renaissance Equalizer/Compressor/Axx/Bass plug-ins)
Up to 96 kHz (H-Delay, eMo D5, and Renaissance Reverb plug-ins) | | | | Package Weight | 27.45 lb | | Box Dimensions (LxWxH) | 22.9 x 16.2 x 9.9" |
