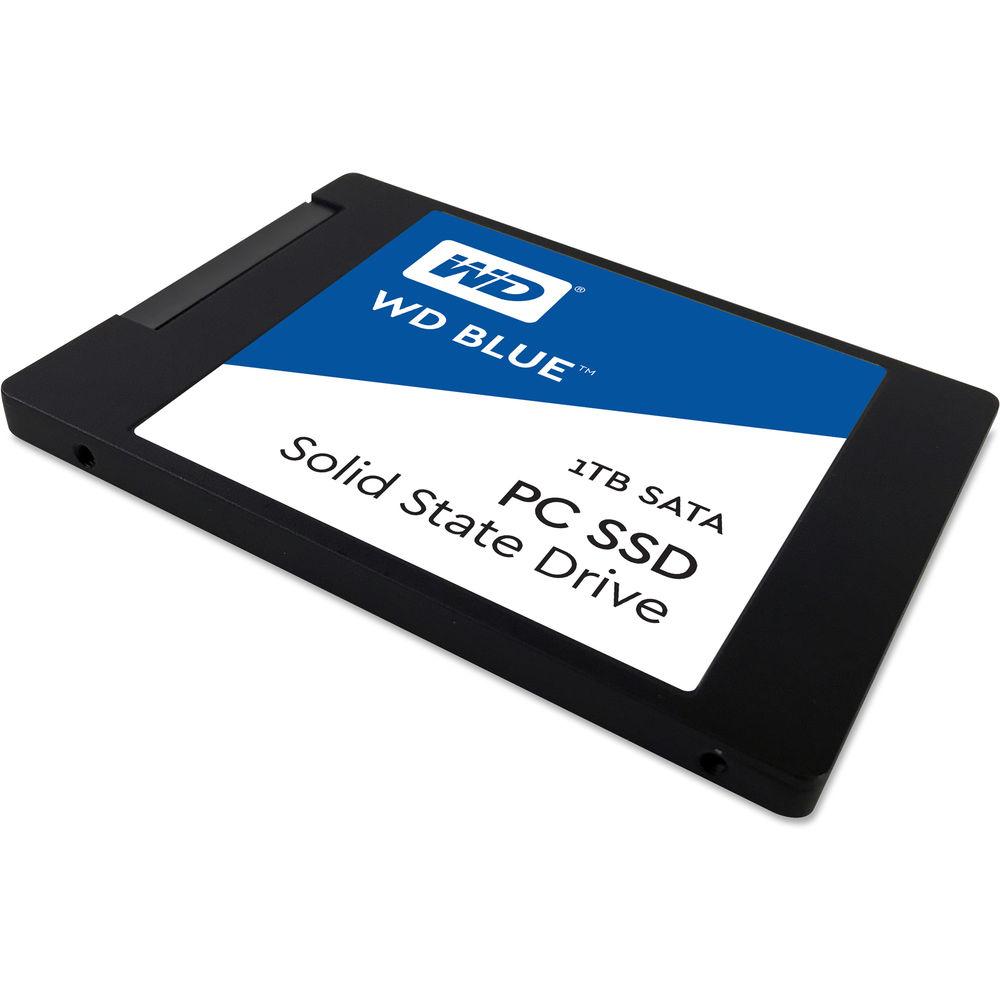

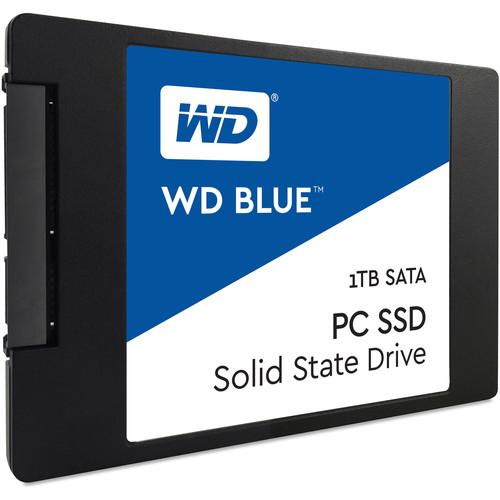

User Manual for WD 1TB Blue SATA III 2.5" Internal SSD Click to enlarge the picture
Contents of the user manual for the WD 1TB Blue SATA III 2.5"
- Product category: Internal Drives WD
- Brand: WD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WD Internal Drives
 |
User manual for the WD 1TB Blue SATA III 2.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WD product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More Upgrade or build a computer with the 1TB Blue SATA III 2.5" Internal SSD from WD to provide your system with fast boot times and quick access to data. The WD Blue SSD delivers 1TB of storage capacity for storing your apps, multimedia content, and files. This internal SATA-based SSD is 7mm high and fits in an available 2.5" drive bay, making it well suited for compact systems such as notebooks, NUCs, and SFF desktops. For performance, it comes armed with Tiered Caching technology that utilizes SLC and TLC flash technologies to enable up to sequential 545 MB/s read and 525 MB/s write speeds. Aside from performance, WD includes free downloadable WD SSD Dashboard software, so you can monitor the health of this solid-state drive. - Performance for High-End Computing
- For high-end computing applications such as gaming, HD media playback, or creative software, WD Blue solid-state drives have 545 MB/s read and 525 MB/s write speeds you need for the performance you want. Tiered caching technology utilizes SLC (single-level cell) and TLC (triple-level cell) flash technology to enable these impressive sequential read and write speeds, allowing for fast system boot up, quick application response, and rapid transfer of data.
- Reliability
- With no moving parts, a solid-state drive is designed to help protect against data loss if a drive is accidentally bumped or dropped. With 1.75M hours of MTTF (mean time to failure) and an endurance rating of up to 400 TBW (terabytes written), WD Blue SSDs can help guard data for years to come. WD Blue solid-state drives also use several leading error-correction technologies to help prevent data loss and provide lasting reliability.
- Maximized Multitasking
- WD Blue SSDs are optimized for multitasking and can easily run several resource-heavy applications simultaneously. This feature lets you run a background virus scan, play a 4K video, and check an email message.
- Compatibility
- This WD Blue SSD features a 2.5" storage drive form factor and has a height of 7mm to make it compatible with compact notebooks, NUCs, and desktops.
- Free WD SSD Dashboard
- The downloadable WD SSD Dashboard software program provides a suite of tools so you're always able to check on the health of your solid-state drive. This free program helps you track things such as disk model, firmware version, S.M.A.R.T. attributes, or simply monitor how much space you have left on your WD Blue SSD.

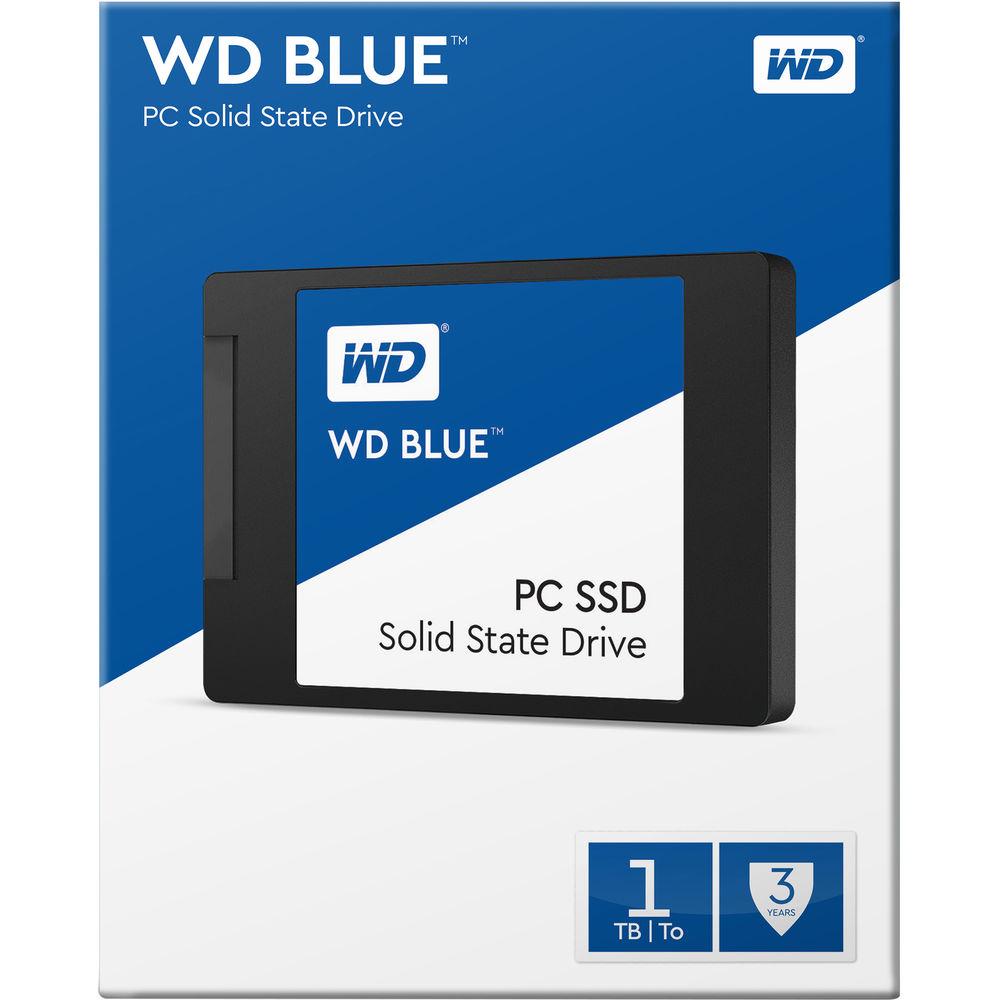

UPC: 718037852904 In the Box WD 1TB Blue SATA III 2.5" Internal SSD Limited 3-Year Warranty Specification PDF 607kbcwazxaee Table of Contents
|
Upload User Manual
Have you got an user manual for the WD 1TB Blue SATA III 2.5" Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWD WDS100T1B0A Specs | | | Drive Capacity | 1.0 TB | | Cache Memory | None | | | | Interface | SATA III (6 Gb/s) | | Random Read Speed | 100,000 IOPS | | Random Write Speed | 83,000 IOPS | | Sequential Read Speed | 545 MB/s | | Sequential Write Speed | 525 MB/s | | | | Drive Type | SSD | | Form Factor | 2.5" (7 mm) | | | | Endurance (Total Bytes Written) | 400 TB | | Mean Time Between Failures (MTBF) | 1.75 Million Hours | | | | Power Draw | 4.4 W (Active)
9.7 mW (Standby) | | | | Operating Shock | 1500 G / 0.5 ms | | Operating Vibration | 5 G / 10 to 2000 Hz | | Storage Vibration | 4.9 G / 7 to 800 Hz | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | -67 to 185°F / -55 to 85°C | | | | Certifications | UL, TUV, Kcc, BSMI, FCC, VCCI, as per Manufacturer | | Dimensions (W x H x D) | 3.9 x 2.8 x 0.3" / 100.2 x 69.9 x 7.0 mm | | Weight | 2.1 oz / 59.7 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.1 x 4.7 x 0.7" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
