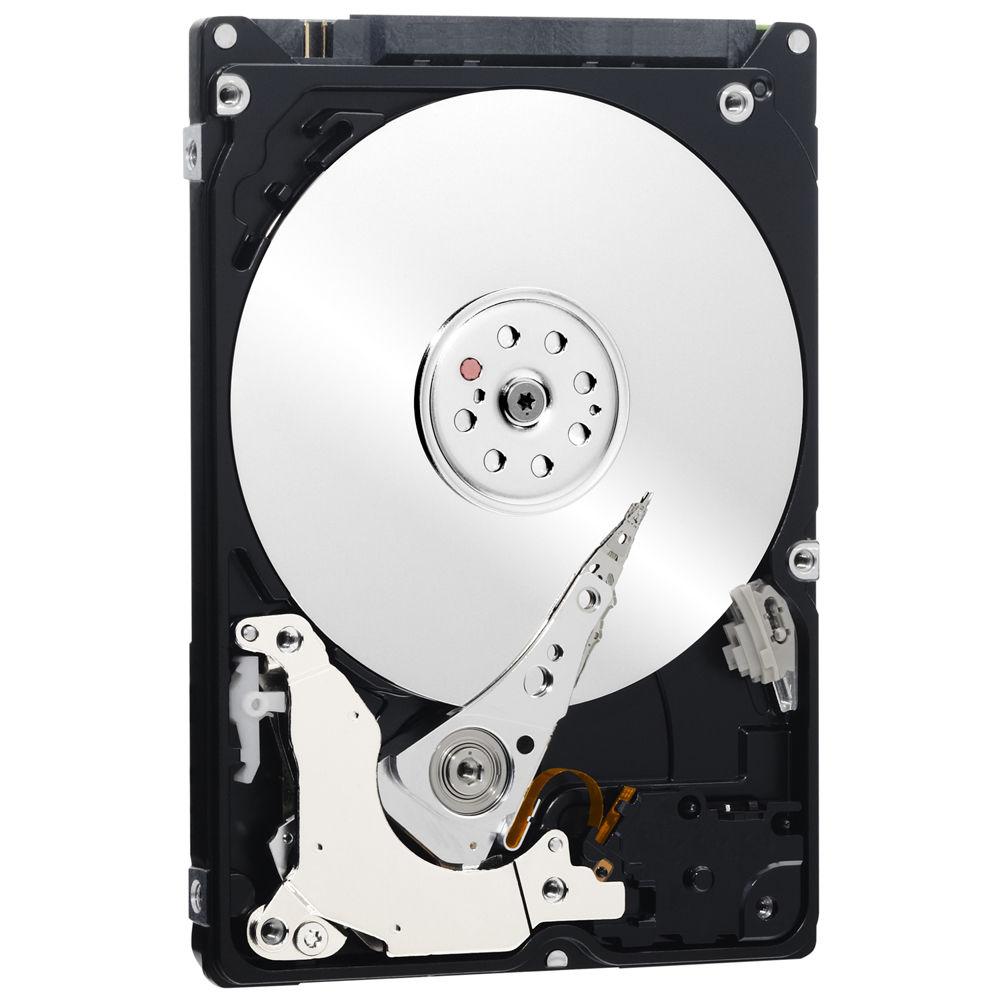

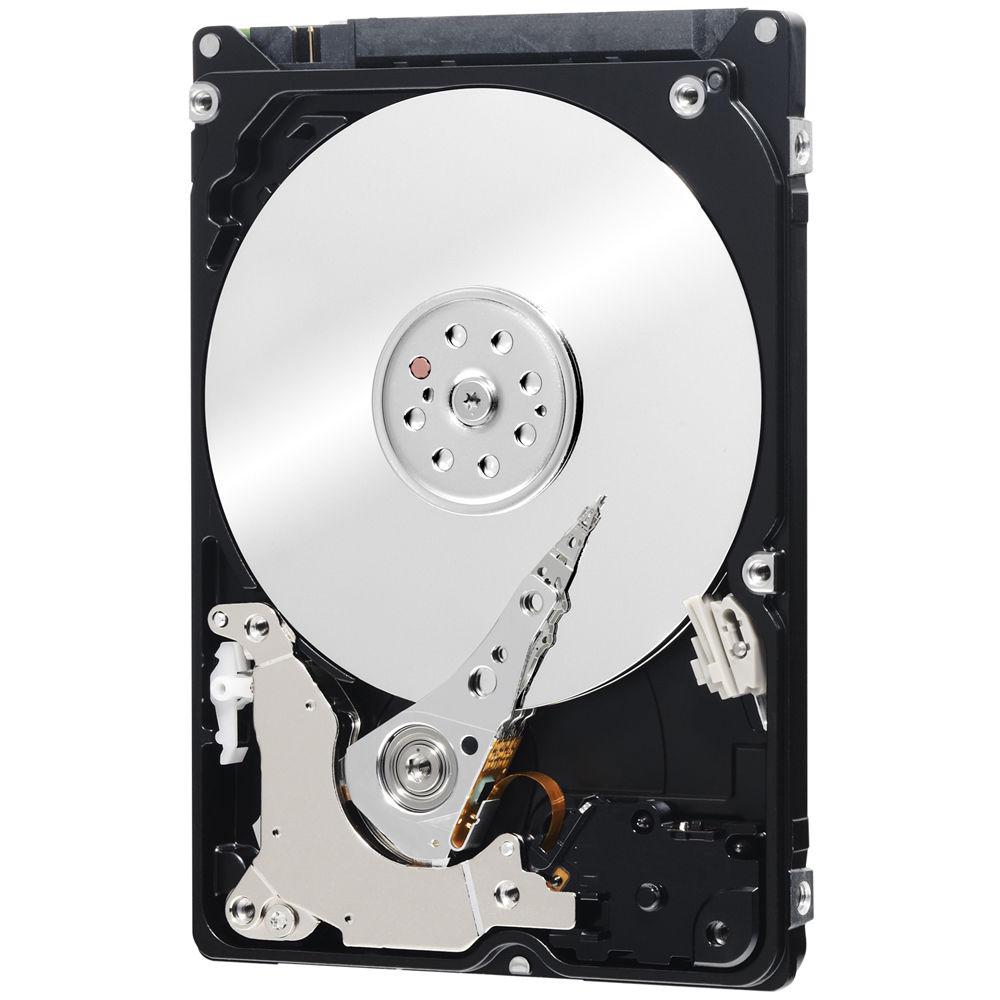

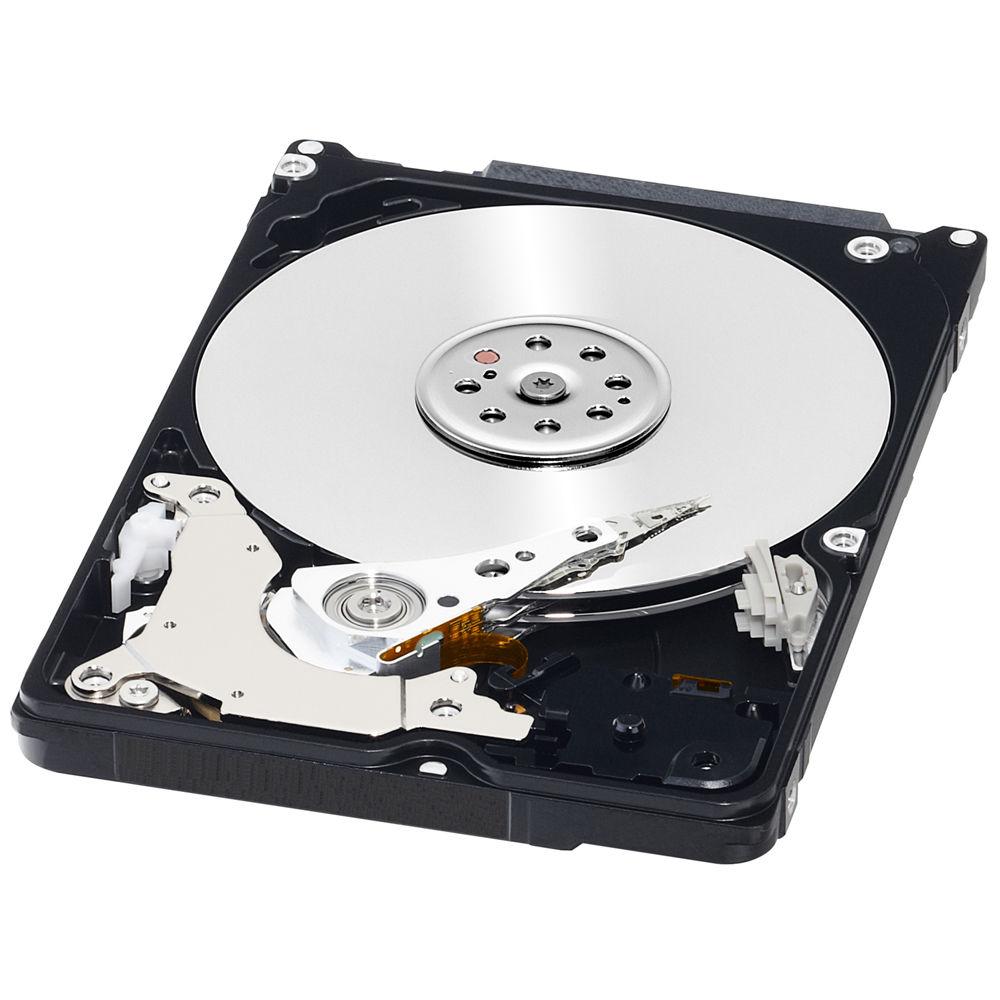

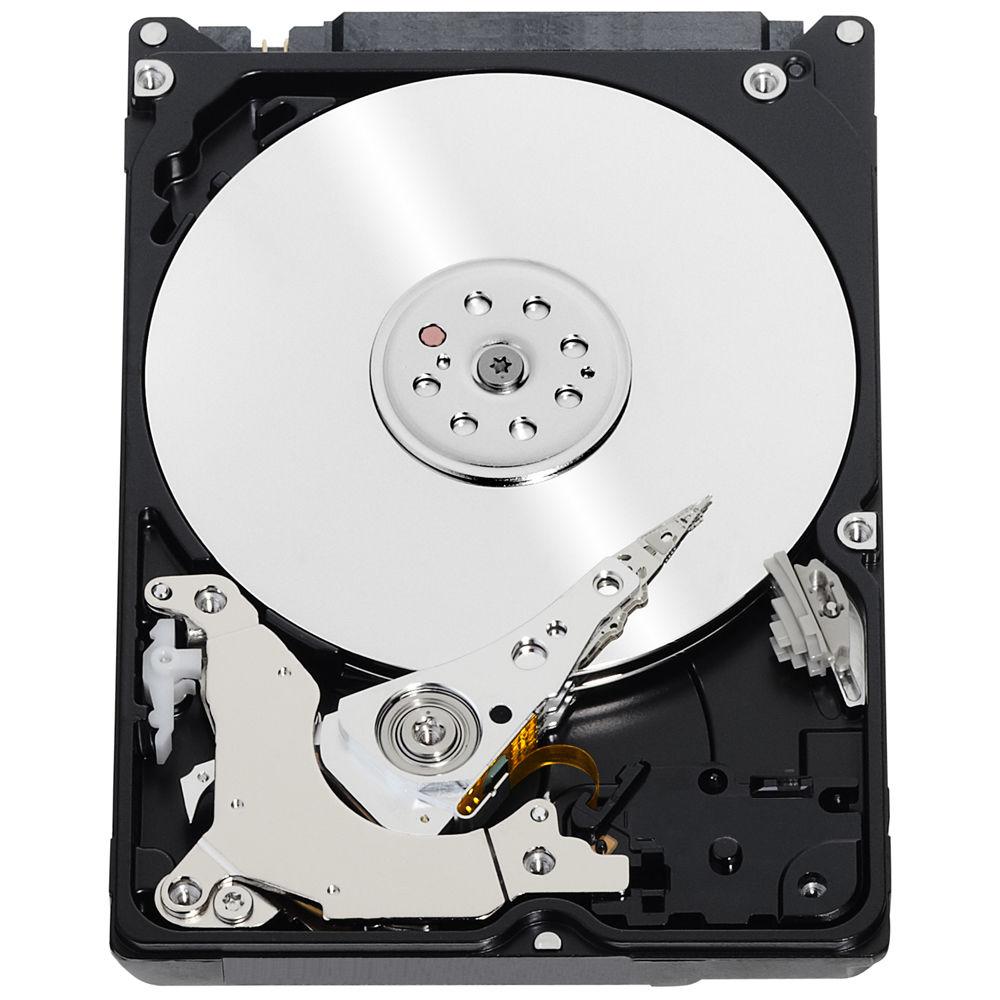

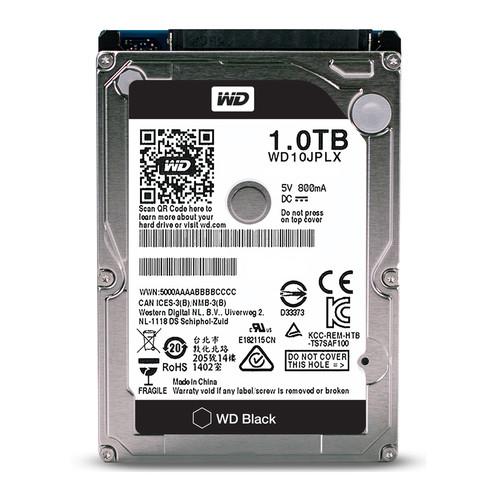

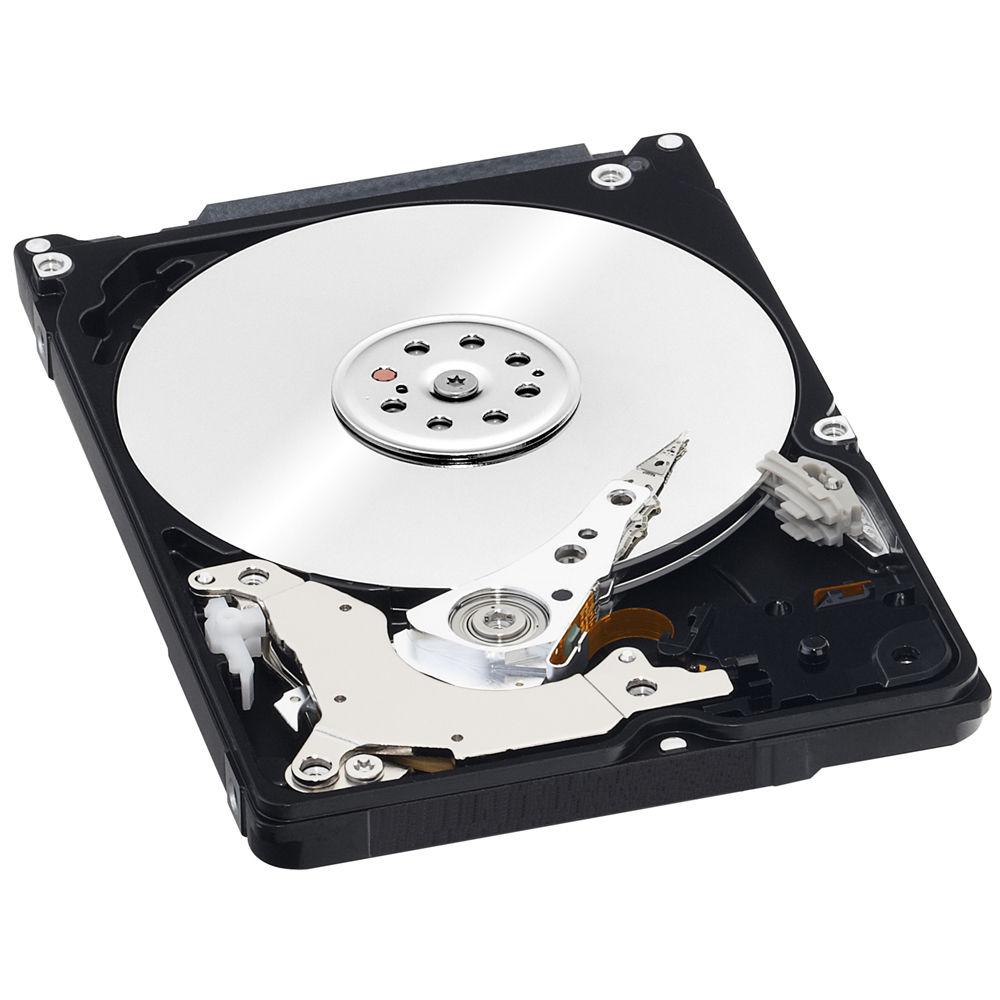

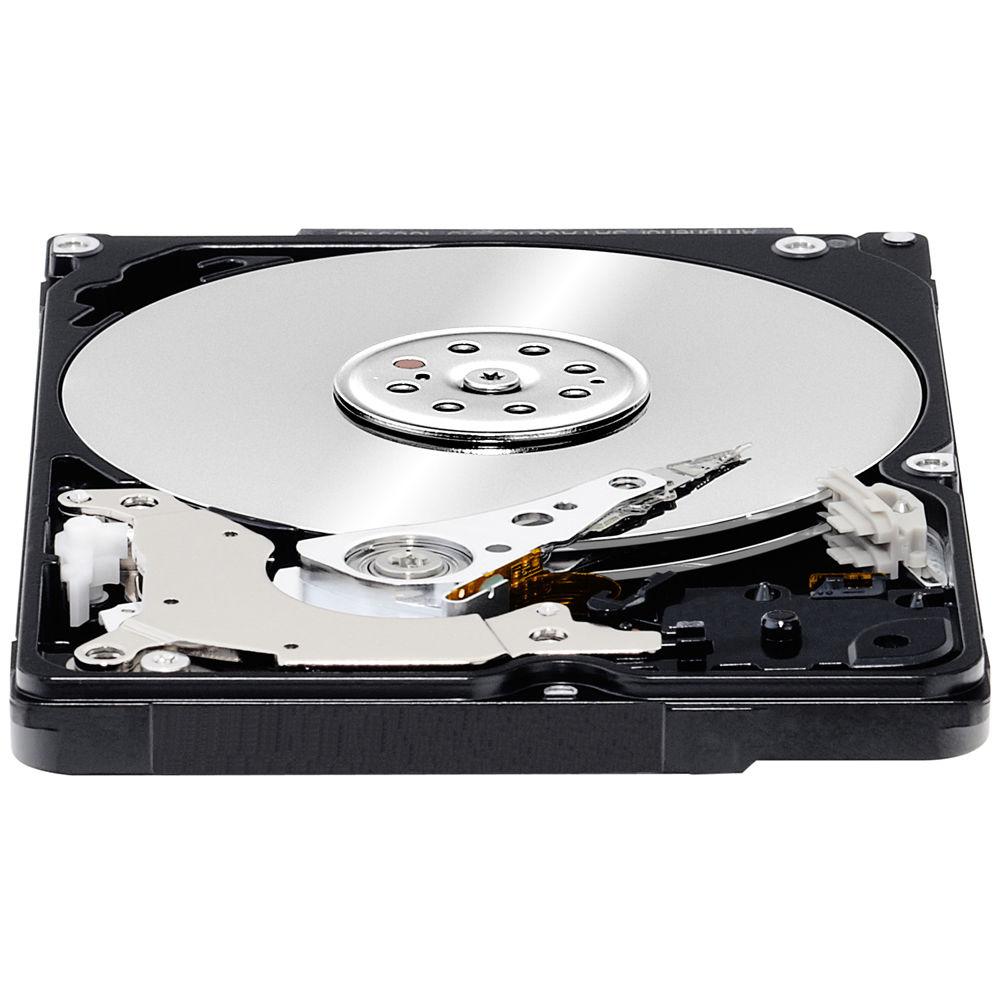

Product description With a 2.5" form factor, the 1TB WD Black Mobile OEM Hard Drive from WD is designed to suit the needs of both creative professionals and gamers. Whether this drive is used in an all-in-one computer or a notebook users benefit from a SATA 6 Gb/s interface along with a 7200 rpm rotational speed for optimal performance. The WD Black mobile hard drive is designed for a variety of high performance applications from photo and video editing to gaming as it comes equipped with 32MB cache memory for faster load and data access times. - Maximum Performance
- Performance enhancing features deliver the speed you need for demanding applications such as photo and video editing and Internet gaming.
- No Compromises
- High performance, high capacity, and high reliability
- Dual Processor and Rock-Solid Mechanical Architecture
- Twice the processing power to maximize performance
- Dynamic Cache
- WD's dynamic caching algorithm improves performance in real time by optimizing cache allocation between reads and writes. For example, if there is an overwhelming percentage of read traffic as opposed to write traffic, the drive automatically allocates more cache for read data, which reduces congestion and improves overall drive performance.
- Available SATA 6 Gb/s Interface
- The SATA 6 Gb/s interface provides backwards compatibility to legacy systems with SATA 3 Gb/s requirements.
- NoTouch Ramp Load Technology
- The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
- Tested for Compatibility
- Tests are performed on hundreds of systems and platforms in the FIT Lab to check that this drive will work in any system.
UPC: 718037846729 In the Box WD 1TB WD Black Mobile OEM Hard Drive (WD10JPLX) Limited 5-Year Warranty Spec sheet PDF 486.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the WD 1TB WD Black Mobile OEM Hard Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWD WD10JPLX Specs | | | Drive Capacity | 1.0 TB | | Cache Memory | 32 MB | | | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 115 MB/s | | Maximum Write Speed | 115 MB/s | | | | Drive Type | HDD | | Form Factor | 2.5" | | Noise Level | 27.0 dB (Active)
25.0 dB (Idle) | | | | Spindle Speed (RPM) | 7200 RPM | | | | Load/Unload Cycles | 600,000 | | Non-Recoverable Read Errors per Bits Read | < 1 in 10 | | | | Power Draw | 1.8 W (Active)
0.8 W (Idle)
0.2 W (Standby) | | Current | 1.1 A at 5 VDC | | | | Operating Shock | 400 G / 2.0 ms | | Storage Shock | 1000 G / 2.0 ms | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Dimensions (W x H x D) | 0.4 x 3.9 x 2.8" / 9.5 x 100.2 x 69.8 mm | | Weight | 0.2 lb / 0.1 kg | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 8.74 x 6.142 x 2.913" |
