User Manual for WD 4TB Purple 3.5" Surveillance Internal Retail Hard Drive Click to enlarge the picture
Contents of the user manual for the WD 4TB Purple 3.5" Surveillance Internal
- Product category: Internal Drives WD
- Brand: WD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WD Internal Drives
 |
User manual for the WD 4TB Purple 3.5" Surveillance Internal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WD product will considerably shorten its lifespan!
|

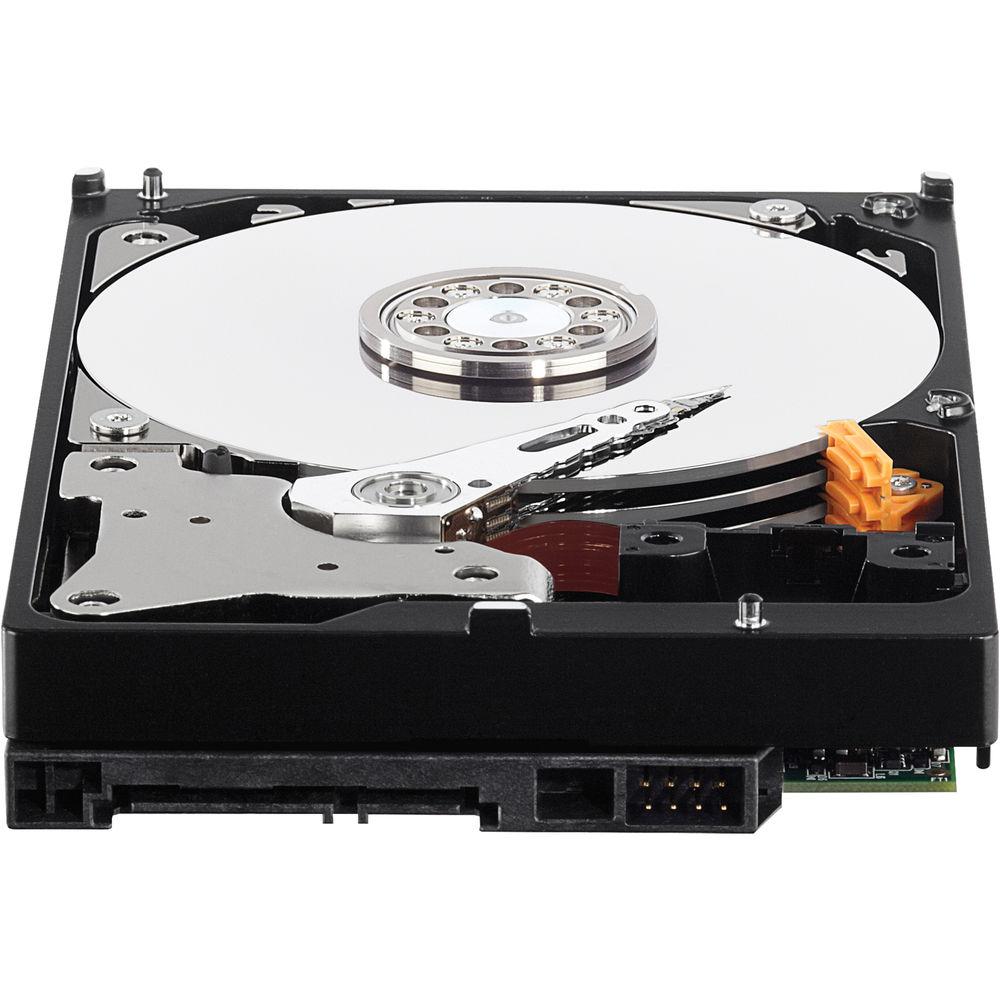

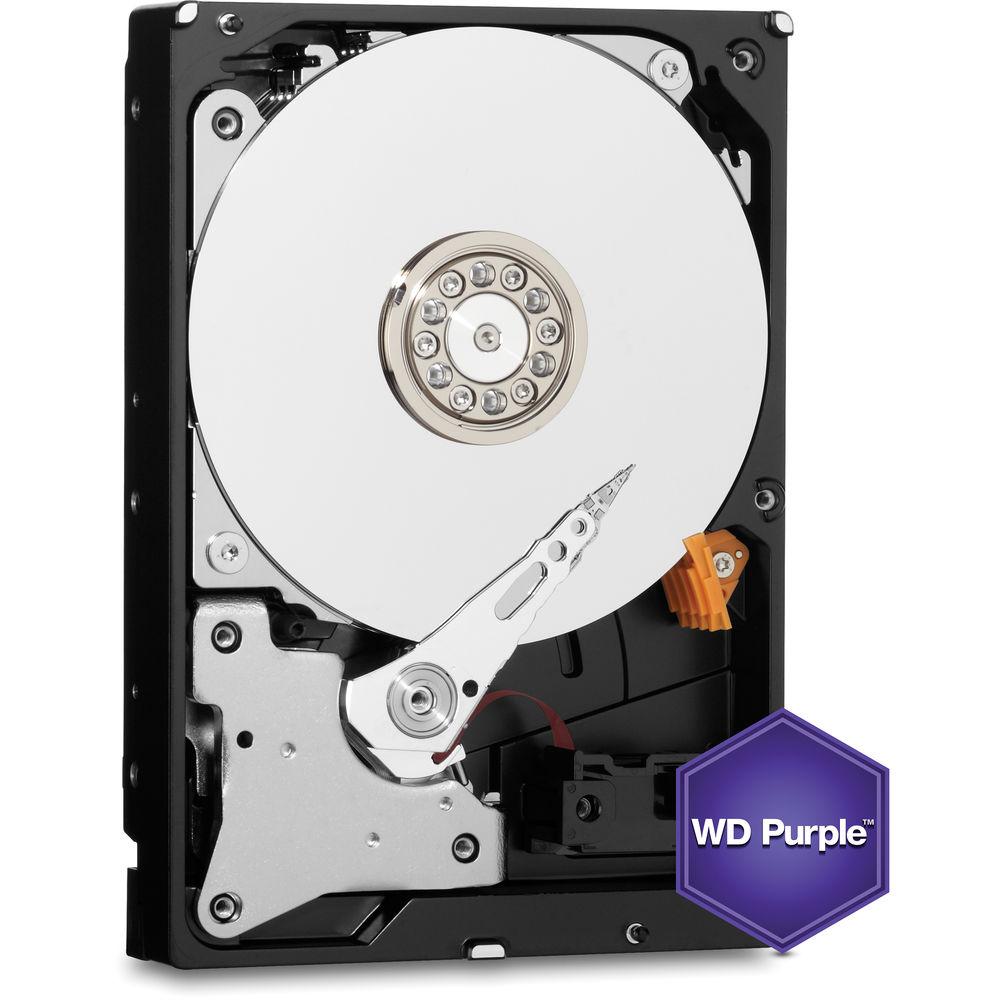

Product description The 4TB Purple 3.5" Surveillance Internal Retail Hard Drive (WD40PURX) from Western Digital is a 3.5" SATA drive with a data transfer rate of 6 Gb/s that is designed to withstand the stresses placed on it in a 24/7 surveillance system. With support for up to 32 high-definition surveillance cameras, this 4TB hard drive can hold a large amount of data and gives you the ability to easily upgrade and expand your security system.
A 64MB cache helps to ensure uninterrupted data transfers and the drive's 300,000 load/unload cycles, combined with its 1 million hours MTBF helps ensure the drive will have a strong operational life. This drive is compatible with both Windows and Macintosh operating systems and includes mounting screws. - Surveillance-Class Drive
- WD Purple surveillance-class storage has been tested to be compatible in a wide-range of security systems. These drives are designed to replace standard desktop drives that were not designed for the 24/7 always-on, high-definition surveillance environment. Desktop drives are built to run for only short intervals and are not engineered to withstand high-temperature fluctuations and equipment vibrations found in a typical surveillance application.
- Surveillance Storage
- The WD Purple Surveillance Hard Drive is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video play back when you need it most.
- Improve Performance with AllFrame
- This WD Purple Surveillance-class hard drive is equipped with AllFrame technology which works with ATA streaming to reduce frame loss, improve playback and increase the number of drive bays supported. AllFrame reduces video interruptions that commonly occur when desktop hard drives are incorrectly used as storage in security systems. Missed frames and lost footage can be a problem when an event occurs and surveillance footage needs to be retrieved. WD Purple with AllFrame provides the confidence you should expect when it's time to play back and review critical surveillance footage.
- Optimized Performance for Up to 32 Cameras
- With support for up to 32 high-definition surveillance cameras, this WD Purple hard drive gives you the flexibility to upgrade and expand your security system in the future.
- IntelliPower Rotational Speed
- In terms of speed, this drive operates using WD's IntelliPower rotational speed. This means that the rpm speed of the drive depends on the operations being performed. If the drive is performing mostly sequential reads and writes, its speed will be increased as compared to if it were performing mostly random mode operations. This 6TB drive also features a 64MB cache helps ensure uninterrupted data transfers.
- Low Power Consumption
- With integrated IntelliSeek technology, this WD Purple drive calculates the optimum seek speed which lowers power consumption, noise and vibration that can damage and cause drives to wear out more quickly.
- Windows and Mac Compatible
- Compatible with Windows 8, 7, Vista, and XP
Compatible with Mac OS X Mountain Lion, Lion, and Snow Leopard
Please bear in mind that Windows XP does not support drives with capacities greater than 2TB. Compatibility may vary depending on user's hardware configuration and operating system - 1 million hours MTBF
- 1 million hours mean time between drive failures

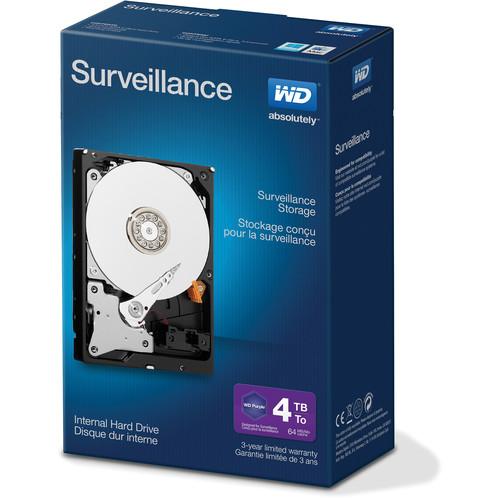

UPC: 718037828725 In the Box WD 4TB Purple 3.5" Surveillance Internal Retail Hard Drive (WD40PURX) Mounting Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WD 4TB Purple 3.5" Surveillance Internal Retail Hard Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWD WDBGKN0040HNC Specs | | | Drive Capacity | 4.0 TB | | Cache Memory | 64 MB | | | | Interface | SATA III (6 Gb/s) | | Sequential Read Speed | 150 MB/s | | Sequential Write Speed | 150 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | Noise Level | 26.0 dB (Active)
25.0 dB (Idle) | | | | Spindle Speed (RPM) | 5400 RPM | | | | Load/Unload Cycles | 300,000 | | Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | | | | Power Draw | 5.1 W (Active)
4.5 W (Idle)
0.5 W (Standby) | | | | Operating Shock | 65 G / 2.0 ms | | Storage Shock | 250 G / 2.0 ms | | Operating Temperature | 32 to 149°F / 0 to 65°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Certifications | RoHS, as per Manufacturer | | Dimensions (W x H x D) | 1.0 x 4.0 x 5.8" / 26.1 x 101.6 x 147.0 mm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 7.5 x 5.0 x 3.5" |
