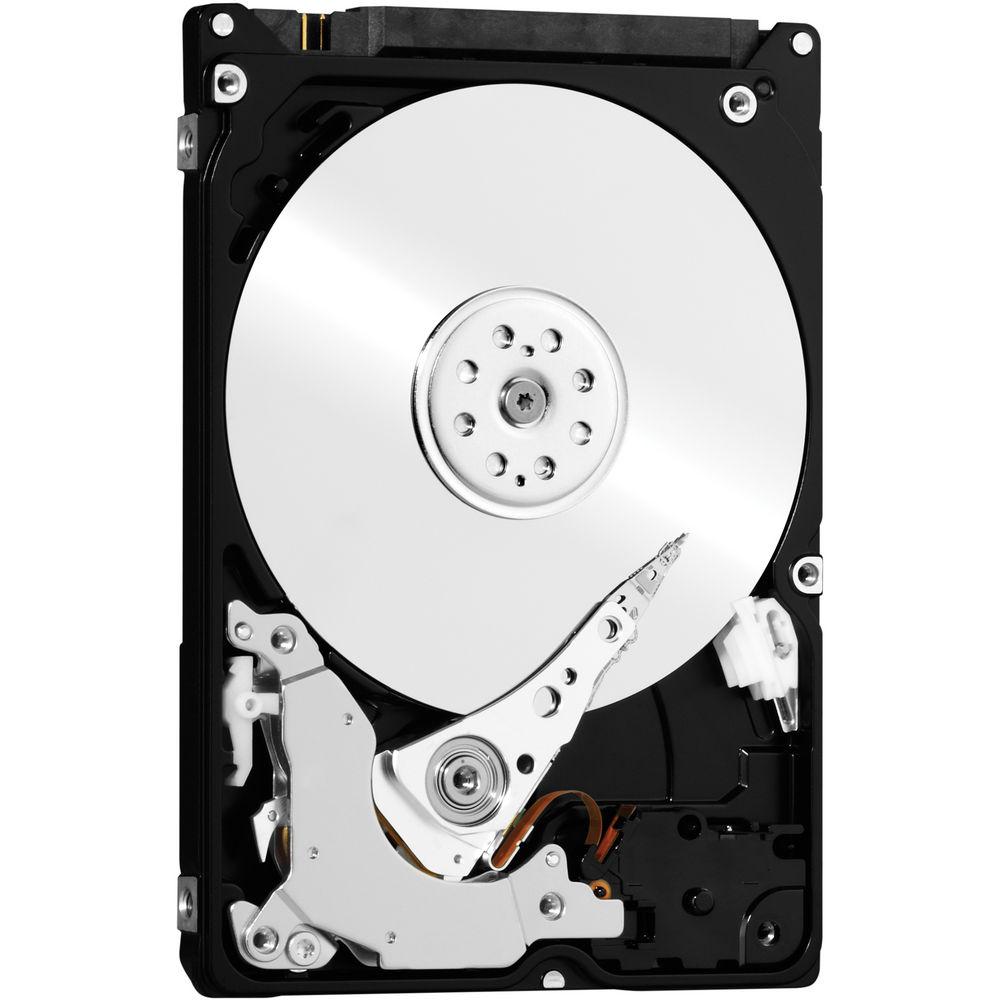

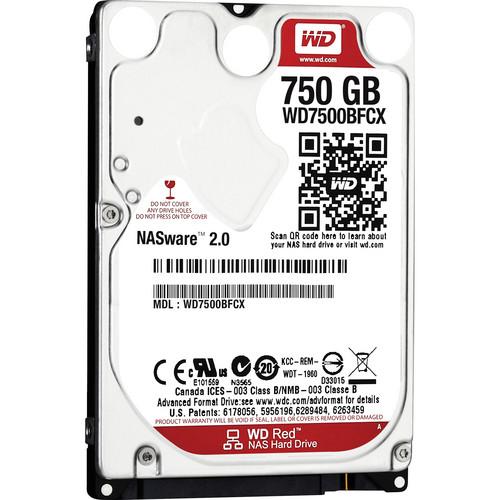

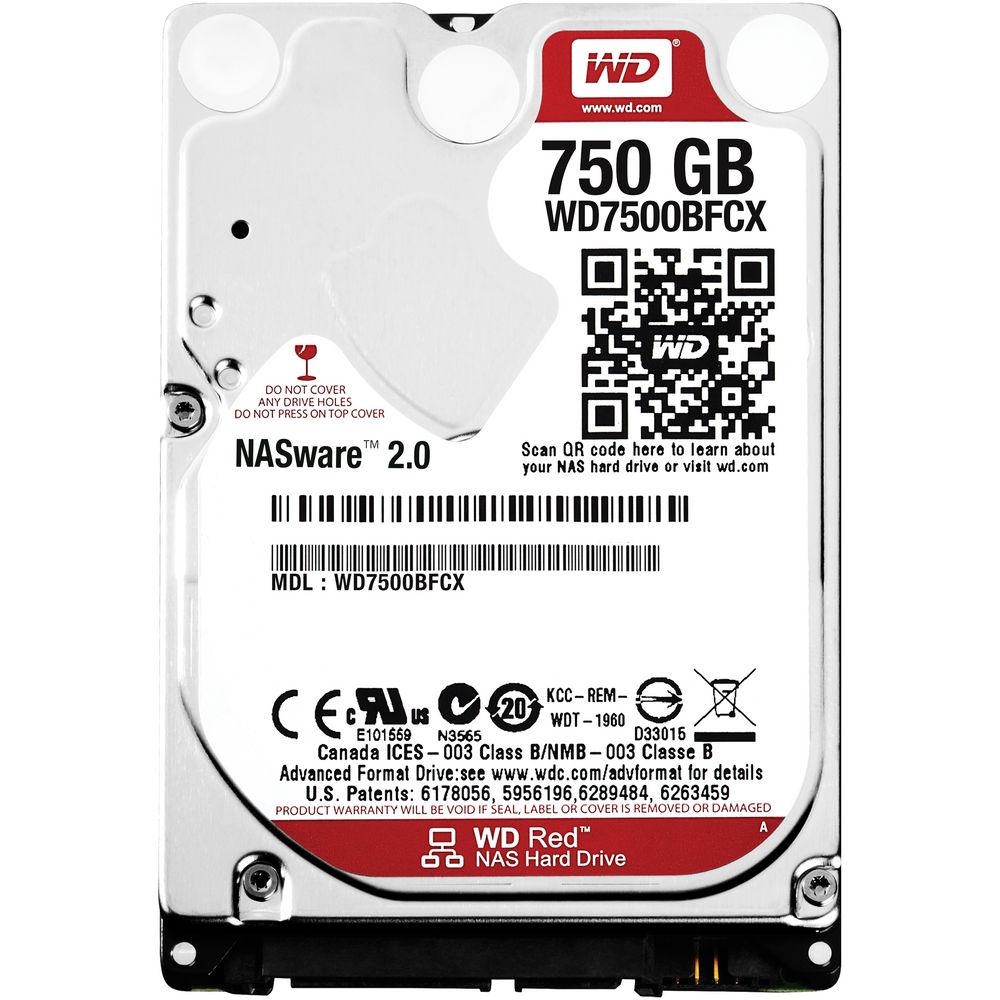

User Manual for WD 750GB Red 5400 rpm SATA III 2.5" Internal NAS HDD Click to enlarge the picture
Contents of the user manual for the WD 750GB Red 5400 rpm SATA
- Product category: Internal Drives WD
- Brand: WD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WD Internal Drives
 |
User manual for the WD 750GB Red 5400 rpm SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WD product will considerably shorten its lifespan!
|
Product description - WD Red, Re and Se Drives Demo
Designed with home and small office/business customers in mind, the 750GB Red 5400 rpm SATA III 2.5" Internal NAS HDD from WD is well-suited for NAS environments with up to eight 2.5" drive bays. Engineered to handle increased workloads, this 1TB drive operates using a SATA III 6 Gb/s interface, a 16MB cache, and a rotational speed of 5400 rpm, all of which help to ensure uninterrupted data transfers with a sustained rate of up to 144 MB/s. This drive also features high levels of reliability, with 600,000 load/unload cycles, <10 in 1014 non-recoverable read errors per bits read, error recovery controls, and 1,000,000 hours MTBF for 1-8 bay NAS systems. Also built into this drive are noise and vibration protection and WD's NASware 3.0 helps increase system compatibility, allowing WD Red drives to be more easily integrated with your existing network infrastructure. General Features - NASware Grows to 3.0
- WD Red now supports small NAS systems from 1 to 8 bays, thanks to NASware 3.0, which further improves drive compatibility and reliability.
- Enhanced Reliability
- Since your NAS system is always on, a highly reliable drive is essential. With a 35% MTBF improvement over standard drives, the WD Red drive with NASware 3.0 is designed for the 24/ environment.
- Lower Operating Temperatures
- Innovative technology reduces power consumption and lowers the operating temperature, resulting in a more reliable and affordable solution for always on NAS environments.
- Limited 3-Year Warranty
- The WD Red drive is backed by a 3-year limited warranty for greater peace of mind.
- Premium Support
- Every WD Red hard drive comes professional support services, including a premium dedicated 24/7 support line.
UPC: 718037804132 In the Box WD 750GB Red 5400 rpm SATA III 2.5" Internal NAS HDD Limited 3-Year Warranty User Manual PDF 594.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the WD 750GB Red 5400 rpm SATA III 2.5" Internal NAS HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWD WD7500BFCX Specs | | | Drive Capacity | 750.00 GB | | Cache Memory | 16 MB | | | | Interface | SATA III (6 Gb/s) | | Sequential Read Speed | 144 MB/s | | Sequential Write Speed | 144 MB/s | | | | Drive Type | HDD | | Form Factor | 2.5" (9.5 mm) | | Noise Level | 25.0 dB (Active)
24.0 dB (Idle) | | | | Spindle Speed (RPM) | 5400 RPM | | | | Load/Unload Cycles | 600,000 | | Mean Time Between Failures (MTBF) | 1.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | | | | Power Draw | 1.4 W (Active)
0.6 W (Idle)
0.2 W (Standby) | | Current | 1.0 A at 5 VDC | | | | Operating Shock | 400 G / 2.0 ms | | Storage Shock | 1000 G / 2.0 ms | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Certifications | RoHS, as per Manufacturer | | Dimensions (W x H x D) | 2.8 x 0.4 x 3.9" / 69.9 x 9.5 x 100.2 mm | | Weight | 0.3 lb / 0.1 kg | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 9.0 x 6.1 x 3.0" |
