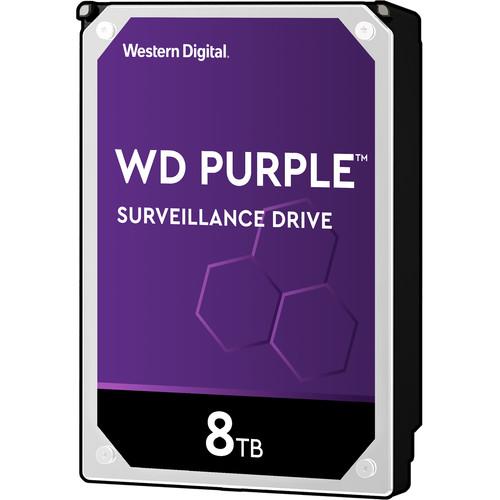

User Manual for WD 8TB Purple 5400 rpm SATA III 3.5" Internal Surveillance Hard Drive Click to enlarge the picture
Contents of the user manual for the WD 8TB Purple 5400 rpm SATA
- Product category: Internal Drives WD
- Brand: WD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WD Internal Drives
|
User manual for the WD 8TB Purple 5400 rpm SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WD product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More - Beyond Surveillance WD Purple
- WDPurple Store
The 8TB Purple 5400 rpm SATA III 3.5" Internal Surveillance Hard Drive from WD is designed to withstand the stresses placed on it in a 24/7, always-on, high-definition surveillance system with 8+ drive bays. With support for up to 64 high-definition surveillance cameras, this 8TB hard drive can hold a large amount of data and gives you the ability to easily upgrade and expand your security system. Furthermore, AllFrame 4K technology helps improve video capturing and reduces errors, pixelation, and video interruptions that could happen in a video recorder system.
A SATA III 6 Gb/s interface, sustained data transfer speeds of up to 213 MB/s, and a 256MB cache all help to ensure uninterrupted data transfers. Furthermore, the drive's 300,000 load/unload cycles, annualized workload rating of 180TB per year, MTBF rating of 1 million hours, and <1 in 1014 non-recoverable read errors per bit read also help to ensure a strong operational life. General Features - Surveillance Storage
- With WD Purple surveillance storage, you have a hard drive engineered for high temperature, always-on surveillance systems so you can rely on quality video playback whether you're protecting loved ones or monitoring your business.
- AllFrame 4K Technology
- This WD Purple drive is equipped with AllFrame 4K technology, which improves ATA streaming to help reduce frame loss, improve overall video playback, and increase the number of hard drive bays supported within a NVR. AllFrame 4K technology enables high-quality recording for up to 64 cameras.
- Enhanced Workload Rating
- With a workload rating of 180TB per year, WD Purple is designed to handle the unique demands of modern video surveillance DVR and NVR systems.
- Expand Your View to 64
- Each WD Purple drive is optimized to support up to 64 cameras, allowing users the flexibility to upgrade or expand their security system in the future.
- Designed for the Surveillance Solutions of Today and Tomorrow
- With an MTBF of up to 1 million hours, WD Purple is engineered for 24/7 operating in all sizes of mainstream surveillance DVRs and NVRs. With support for 8+ drive bays and tarnish-resistant components, WD Purple drives deliver reliable operation in larger scale surveillance systems in harsher environments.
- HelioSeal Technology
- HelioSeal technology delivers high-capacity WD Purple storage for the massive capacity requirements of 4K surveillance video.
- Compatibility & Integration
- WD Purple drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of enclosures and chipsets supported, you're sure to find a DVR or NVR configuration that's right for you.
- Less Power, More Efficient
- With WD's IntelliSeek technology, Purple drives are able to calculate optimum seek speeds. This helps keep power consumption low so ambient noise and vibrations are at a minimum.
UPC: 718037863078 In the Box WD 8TB Purple 5400 rpm SATA III 3.5" Internal Surveillance Hard Drive (OEM) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WD 8TB Purple 5400 rpm SATA III 3.5" Internal Surveillance Hard Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWD Purple Specs | | | Drive Capacity | 8.0 TB | | Cache Memory | 256 MB | | | | Interface | SATA III (6 Gb/s) | | Sequential Read Speed | 213 MB/s | | Sequential Write Speed | 213 MB/s | | | | Drive Type | HDD | | Form Factor | 3.5" | | Noise Level | 29.0 dB (Active)
27.0 dB (Idle) | | | | Spindle Speed (RPM) | 5400 RPM | | | | Endurance (Total Bytes Written) | 180 TB | | Load/Unload Cycles | 300,000 | | Mean Time Between Failures (MTBF) | 1.0 Million Hours | | Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | | | | Power Draw | 9.0 W (Active)
8.12 W (Idle)
0.8 W (Standby) | | | | Operating Shock | 30 G / 2.0 ms | | Storage Shock | 250 G / 2.0 ms | | Operating Temperature | 32 to 149°F / 0 to 65°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Certifications | RoHS, as per Manufacturer | | Dimensions (W x H x D) | 1.0 x 4.0 x 5.8" / 26.1 x 101.6 x 147.0 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 1.83 lb | | Box Dimensions (LxWxH) | 8.9 x 6.0 x 3.0" |
