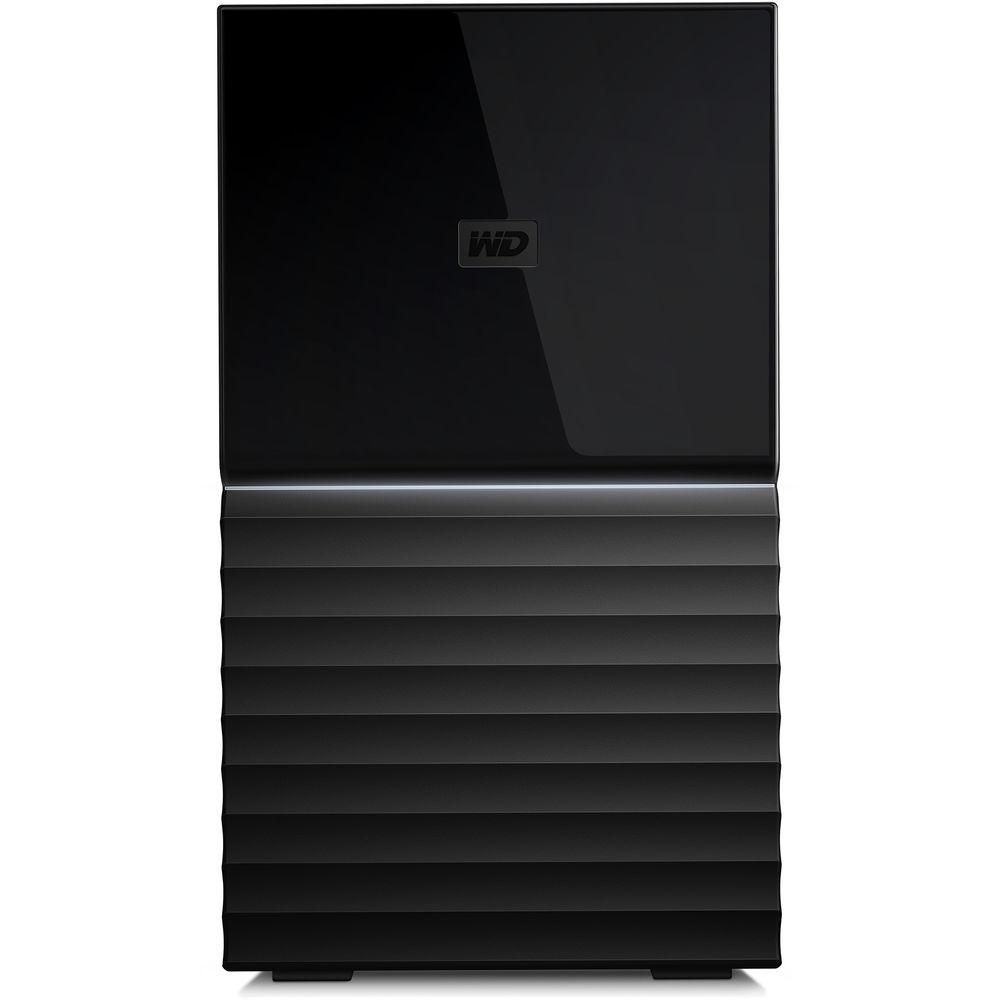

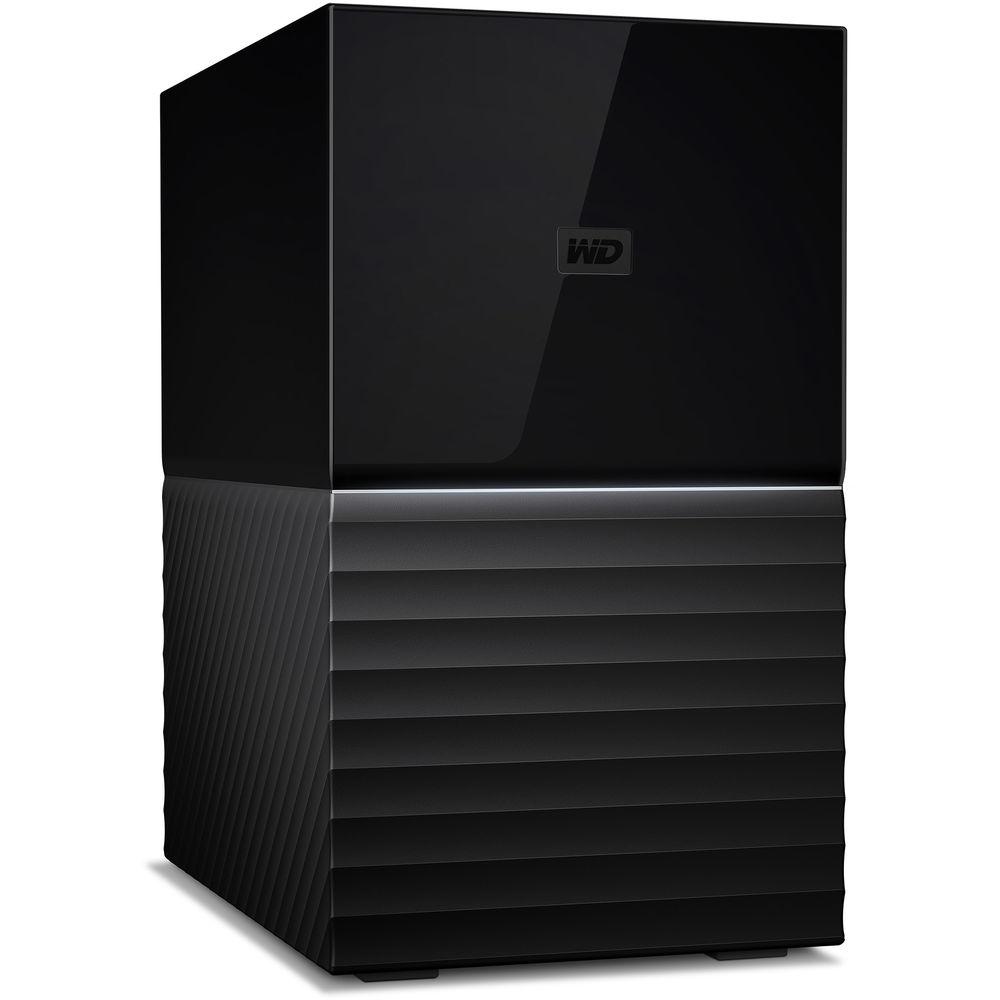

User Manual for WD My Book Duo 8TB Two-Bay USB 3.0 Type-C RAID Array Click to enlarge the picture
Contents of the user manual for the WD My Book Duo 8TB Two-Bay
- Product category: Hard Drive Arrays WD
- Brand: WD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for WD Hard Drive Arrays
 |
User manual for the WD My Book Duo 8TB Two-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any WD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official WD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a WD product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The WD My Book Duo 8TB USB 3.0 RAID Array features two 3.5" drive bays that each sport a 4TB hard drive to provide a total capacity of 8TB for USB Type-C and USB Type-A systems. The two included hard drives are WD Red drives designed for high-performance and reliability. WD has configured the drives in RAID 0 and lets you reconfigure them in RAID 1 or JBOD, using the included WD Drive Utilities software program. The My Book Duo comes with a USB 3.0 Type-C port along with two USB cables that allow you to connect to a typical USB port or a reversible USB Type-C port on the host system. With RAID 0 and USB 3.0 technology, the My Book Duo delivers sequential read speeds of up to 360 MB/s.
Other notable features include a 2-port USB 3.0 hub, which expands the host system's connections, and AES hardware encryption that helps prevent unauthorized access to sensitive data. In addition, the My Book Duo is pre-formatted in NTFS for Windows systems and requires a reformat for use with Mac. - Capacity
- The My Book Duo drive provides 8TB of storage capacity with a single connection. This amount of digital storage space lets you hold and back up your photos, videos, documents, and songs.
- RAID 0
- The My Book Duo is preconfigured in a RAID 0 array that grants maximum speed and capacity. Utilizing the included WD Drive Utilities software, you can reconfigure the drives in a RAID 1 for redundancy or JBOD array as two independent drives.
- WD Red Drives
- Two WD Red drives are included to provide high-speed and reliable storage. To help ensure read/write cycle data integrity, RAID-optimized firmware is suitable for a two-disk array system with auto management of drive operations.
- Compatibility
- With the included USB Type-C to Type-C and USB Type-C to Type-A cables, the My Book Duo supports a wide-variety of systems.

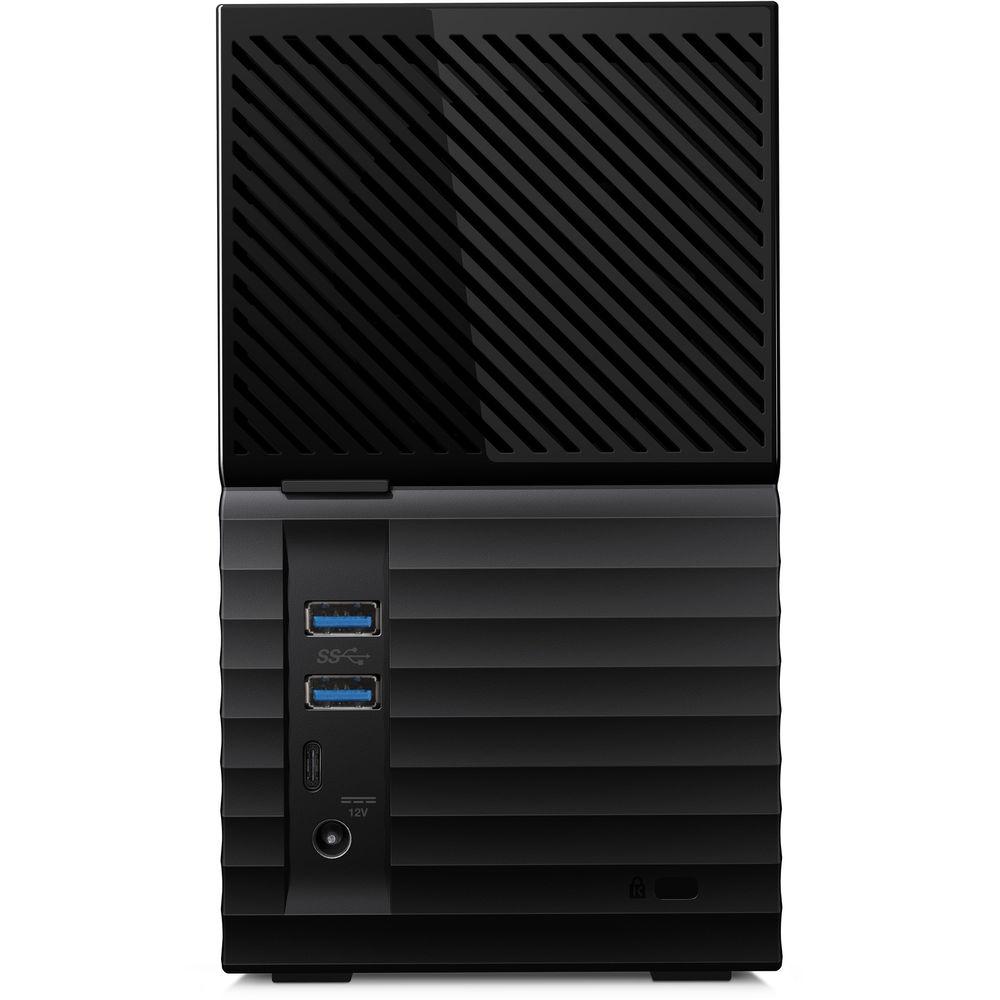

- Two-Port USB 3.0 Hub
- The My Book Duo drive can serve as a quasi-docking station with two USB 3.0 Type-A ports designed for accessories, such as an additional storage device, keyboard and mouse set, card reader, and mobile devices.
- Encryption
- The My Book Duo drive comes with 256-bit AES hardware encryption with WD Security software built in to help keep private content secure. You can set a personalized password to activate hardware encryption and data protection.
UPC: 718037856605 In the Box WD My Book Duo 8TB Two-Bay USB 3.0 Type-C RAID Array (2 x 4TB) USB Type-C to Type-C Cable USB Type-C to Type-A Cable AC Adapter Disk Replacement Tool Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WD My Book Duo 8TB Two-Bay USB 3.0 Type-C RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWD WDBFBE0080JBK-NESN Specs | | | Number of Bays | 2 x 3.5" | | Connections | 1 x USB Type-C (USB 3.1 Gen 1 (5 Gb/s))
2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 360 MB/s (Read) | | RAID Modes | RAID 0, 1, JBOD | | OS Compatibility | macOS 10.9 or Later
Windows 7 or Later | | | | Total Raw Capacity | 8 TB (2 x 4 TB) | | Initial RAID Configuration | None | | Pre-Format | NTFS | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 149°F / -20 to 65°C | | Certifications | NRCAN, RoHS, as per Manufacturer | | | | Dimensions (W x H x D) | 6.3 x 3.9 x 7.1" / 160.0 x 100.0 x 180.0 mm | | Weight | 5.2 lb / 2.4 kg | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 11.3 x 8.8 x 6.1" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
