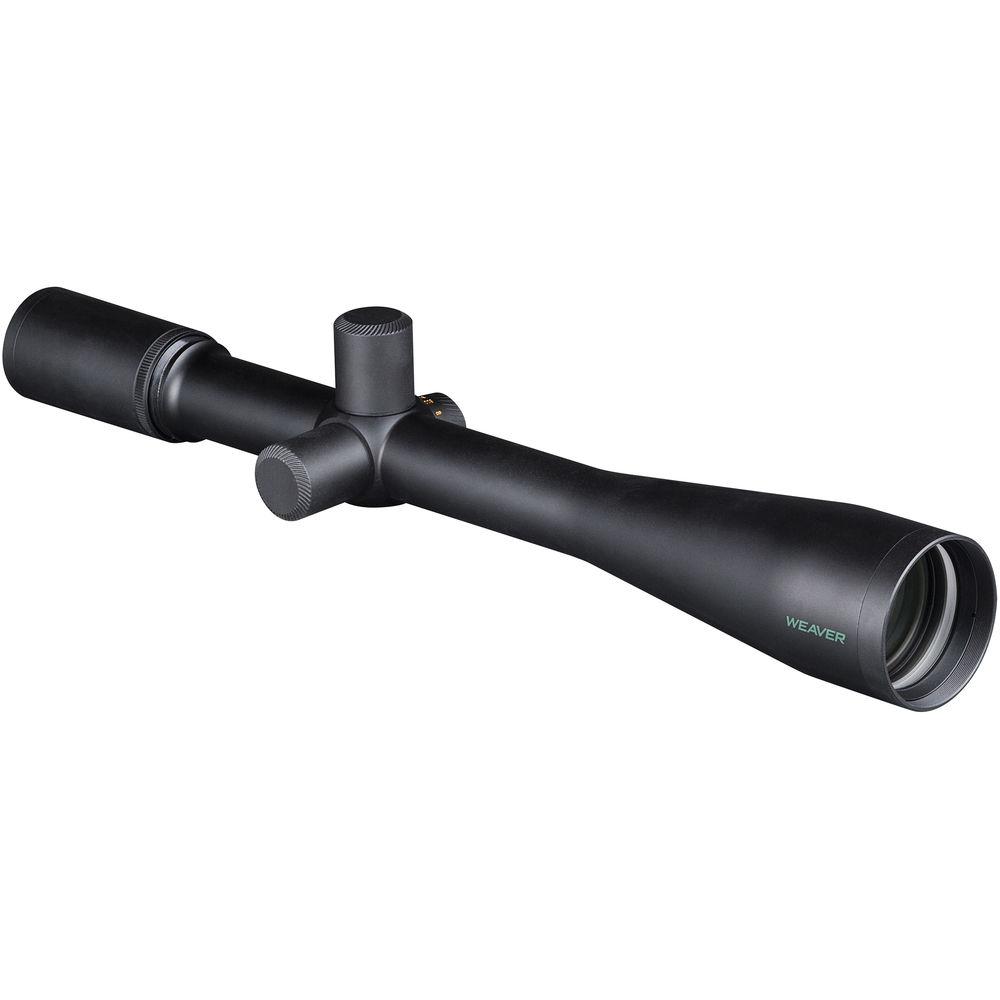

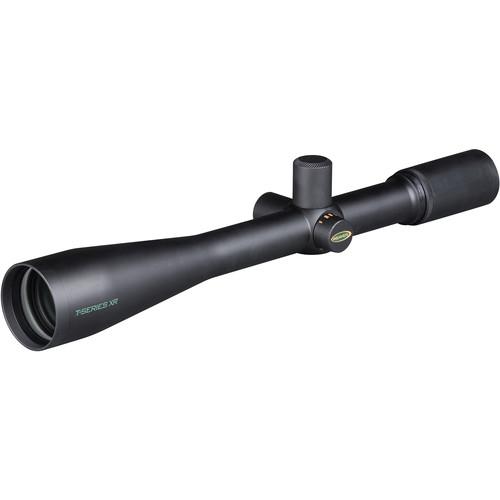

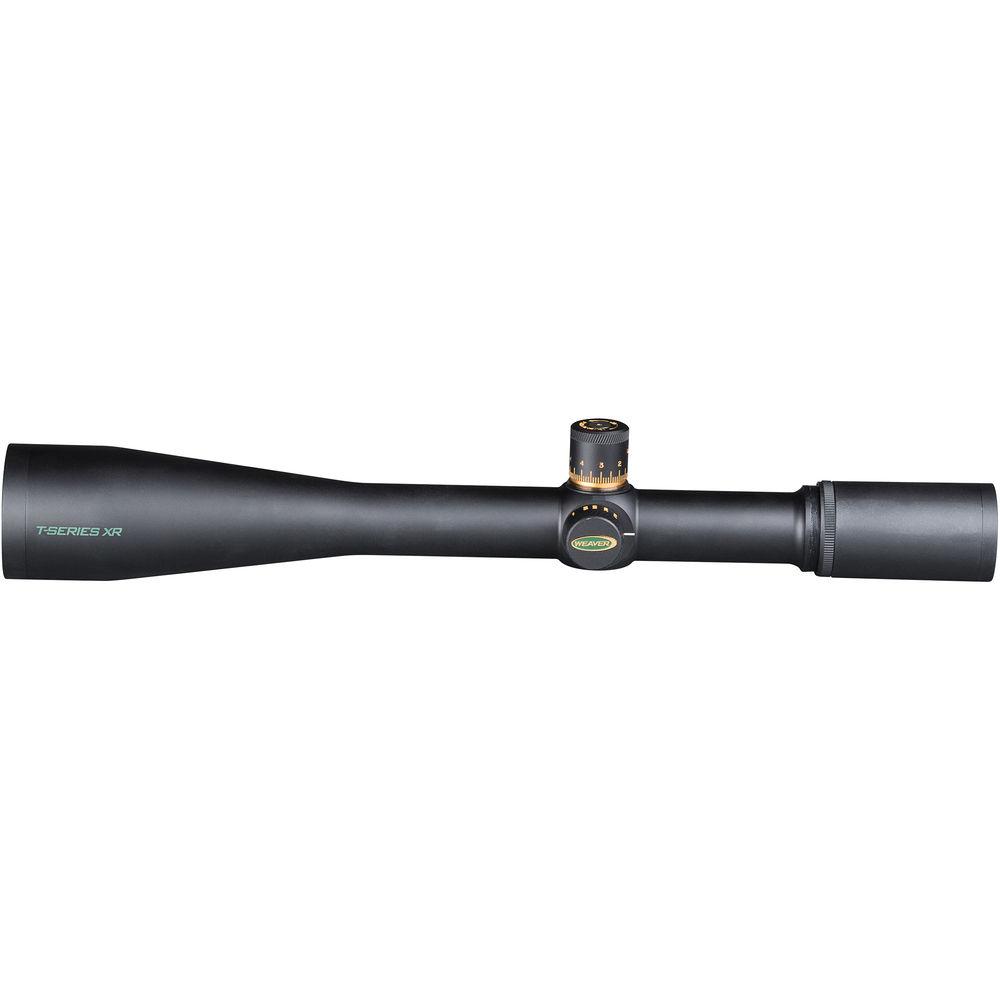

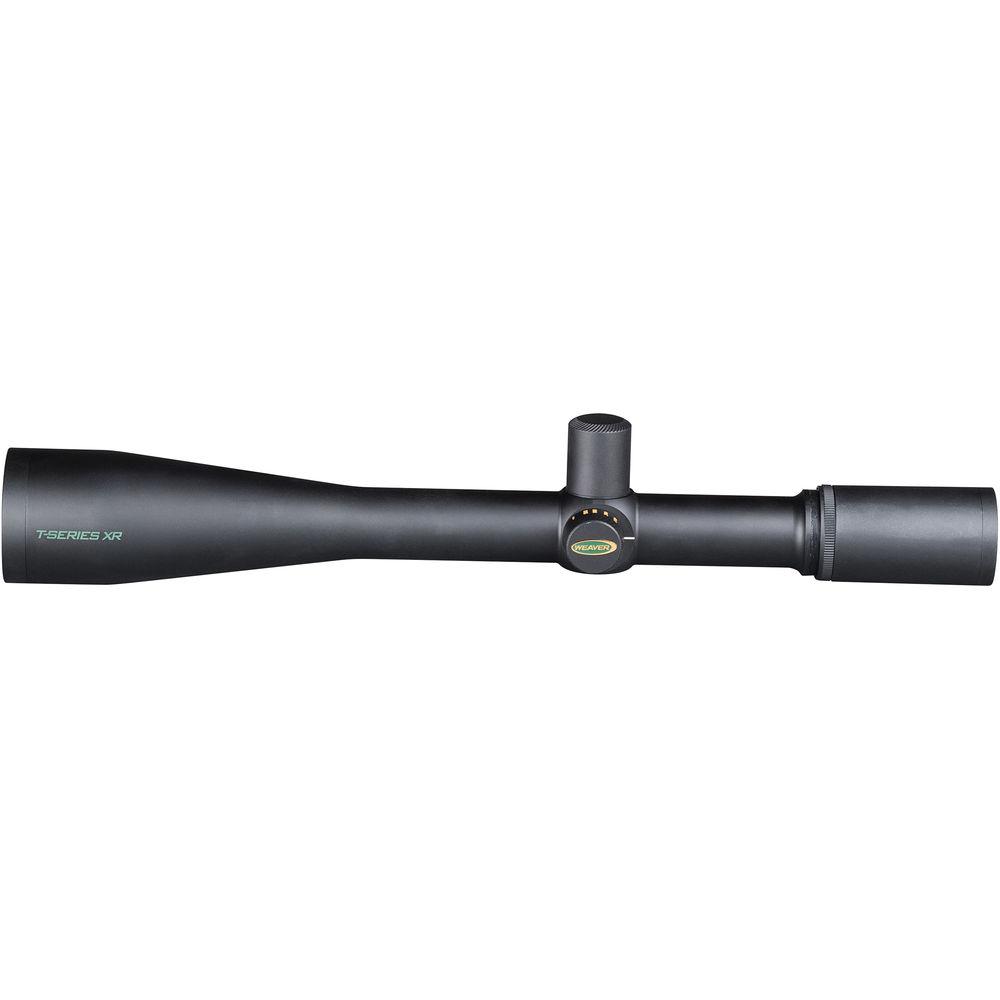

Product description Designed specifically to address the needs of long range precision shooting, the matte black T-Series XR 24x40 Side Focus Riflescope from Weaver features a Micro-Trac Adjustment system for competition-level precision, tall windage and elevation adjustments with completely independent control and 1/8 MOA per click interments, and a side focus parallax adjustment. The fully multicoated optics provide maximum possible transmission of light, improve contrast and detail, and reduce glare. To reduce glare from the sun, you can attach the included sunshade to the objective bell. To help you compensate for wind drift and ballistic bullet drop, the scope offers 40 MOA windage elevation adjustment ranges.
The Target Dot reticle features a thin crosshair and 1/16 MOA center dot. It provides a clear and unobstructed view of your target yet allows for precise target acquisitions.
The housing with 1" main tube is durable, waterproof, and shock-resistant. To prevent inner optical surfaces from fogging-up when you are moving through environments with changing temperatures, the housing is purged with argon gas and sealed. Also included with this riflescope is a sunshade. - Optical Performance
-
- Fully multi-coated
- 24x magnification
- 40mm objective
- 4.3' linear field of view
- 3.3" eye relief
- Target Dot Reticle
-
- Fine crosshair with a 1/16 MOA center dot
- Use and Handling
-
- 1/8 MOA impact point correction
- 40 MOA windage and elevation ranges
- Construction Details
-
- Micro-Trac adjustment system for competition-level precision
- 1" single-piece aluminum main tube
- Tall windage and elevation knobs
- Side focus parallax correction
- Sunshade included
- Argon-purged, fogproof
- Shock-resistant
- Waterproof
UPC: 076683899408 In the Box Weaver 24x40 T-Series XR Side Focus Riflescope (Target Dot Reticle, Matte Black) Sunshade Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weaver 24x40 T-Series XR Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeaver 849940 Specs | | | Magnification | 24x | | Objective Lens Diameter | 40 mm | | Field of View | 4.3' @ 100 yd / 1.4 m @ 100 m | | Exit Pupil Diameter | 1.7 mm | | Eye Relief | 3.2" / 83 mm | | | | Reticle Type | 1/16 MOA Center Dot Reticle | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14.7" / 37 cm | | Weight | 13.2 oz / 374 g |
