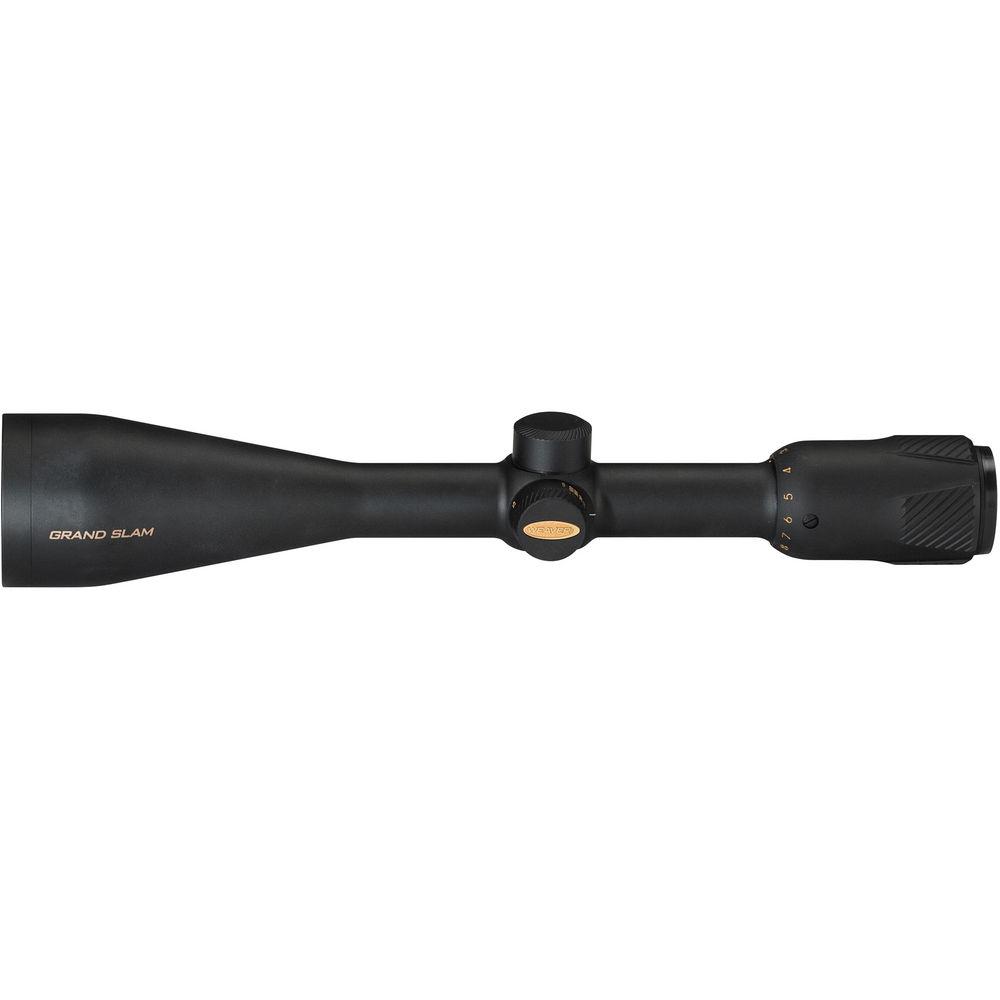

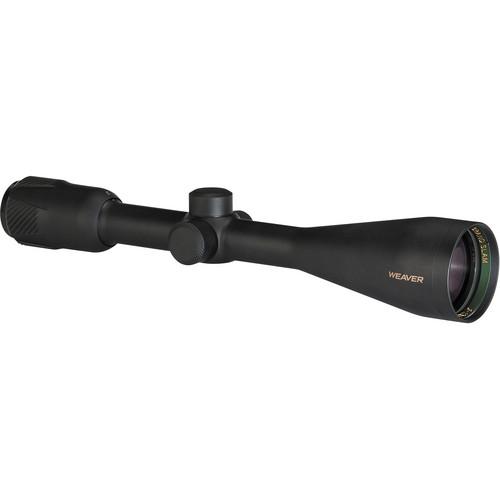

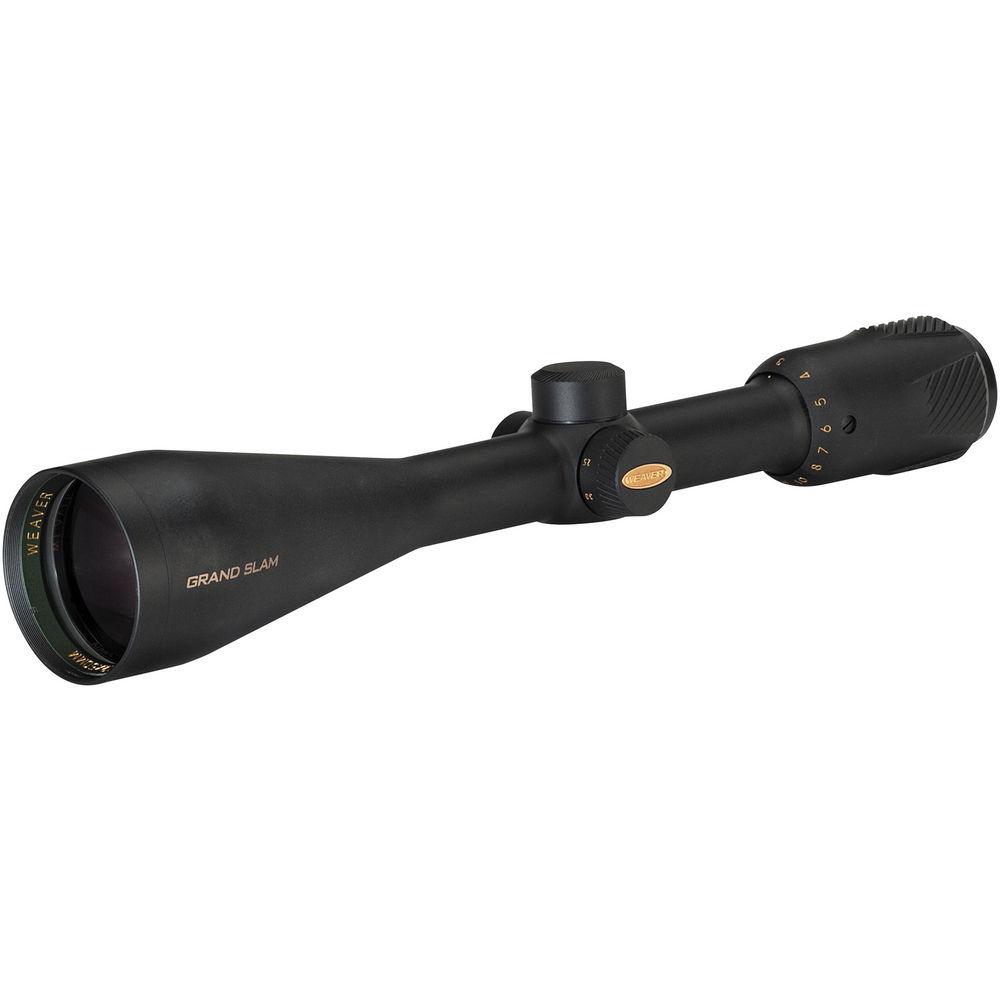

User Manual for Weaver 3-12x50 Grand Slam Riflescope Click to enlarge the picture
Contents of the user manual for the Weaver 3-12x50 Grand Slam Riflescope
- Product category: Riflescopes Weaver
- Brand: Weaver
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weaver Riflescopes
 |
User manual for the Weaver 3-12x50 Grand Slam Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weaver product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weaver user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weaver product will considerably shorten its lifespan!
|
Product description The Dual-X reticle configuration 3-12x50 Grand Slam Riflescope from Weaver is a weatherproof optic designed for close to mid-range hunting. The Dual-X reticle has a fine crosshair with four heavy posts, and is useful for targets less than 100 yd away. This refined model of the Grand Slam series includes features that offer improved handling and functionality compared to previous Grand Slam riflescope versions. As the flagship series of Weaver's riflescope line, the Grand Slam delivers fully multicoated optics and shockproof construction at a reasonable price.Weaver's proprietary Micro-Trac windage and elevation adjustment system has been improved to deliver more consistent performance and precise 1/4 MOA aiming point correction. Two springs on each correction axis deliver enhanced durability, and improve the scope's ability to maintain zero even when used on heavy caliber firearms. Curved grooves on the scope's turret caps and ocular focus dial are designed to provide sleek aesthetics, as well as tactile feedback when wearing gloves.This configuration of the Grand Slam series features a 3-12x magnification range that is well-suited for most shooting distances at the target range or on the hunt. For improved accuracy at the higher end of the magnification range, this riflescope includes a parallax adjustment knob for setting the target distance beyond a 40-yard (36m) range.Complementing the durability and functionality of the 3-12x Grand Slam is a 50mm objective lens and fully multicoated optical path that transmit sufficient light to help a shooter acquire their target during the final hour of daylight. The argon-filled fogproof housing, single-piece aluminum tube, and 3" long eye relief and make the Grand Slam a well-equipped riflescope for a wide range of shooting tasks. - Optical Performance
-
- 3-12x magnification, 50mm objective
- 33- 8 ft (10 - 2.6 m) at 100 yd field of view
- Fully multicoated optics
- 40 yd (36m) to infinity parallax adjustment range
- Dual-X reticle with fine crosshair and four heavy posts
- Use and Handling
-
- 1/4 MOA windage/elevation adjustments
- 60/60 MOA W/E adjustment range
- Construction Details
-
- Single-piece 1" aluminum tube
- Argon-filled fogproof housing
- Shockproof four-point W/E erector mechanism
- Machined aluminum grip on turret caps and eyepiece
- Matte black finish
In the Box Weaver 3-12x50 Grand Slam Riflescope (Dual-X) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weaver 3-12x50 Grand Slam Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeaver 800640 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 32.7' @ 100 yd / 10 m @ 100 m
12x: 8.4' @ 100 yd / 2.6 m @ 100 m | | Exit Pupil Diameter | 3x: 13.6 mm
12x: 4.2 mm | | Eye Relief | 3.2 to 3.5" / 81.3 to 88.9 mm | | | | Reticle Type | Dual-X Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 40 yd / 36.6 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.6" / 32 cm |
