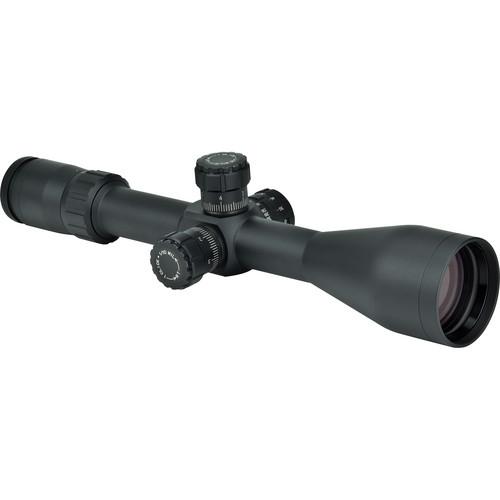

User Manual for Weaver 3-15x50 Tactical Riflescope Click to enlarge the picture
Contents of the user manual for the Weaver 3-15x50 Tactical Riflescope
- Product category: Riflescopes Weaver
- Brand: Weaver
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weaver Riflescopes
|
User manual for the Weaver 3-15x50 Tactical Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weaver product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weaver user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weaver product will considerably shorten its lifespan!
|
Product description The 3-15x50 Tactical Riflescope (Matte Black) from Weaver has been specially engineered for tactical applications. It has been manufactured to the strictest tolerances in order to perform in the harshest environments. The 3-15x50 Tactical riflescope is waterproof, fogproof and shockproof. It has a 30mm, single piece tube construction. This riflescope is endowed with a glass-etched, illuminated, "Enhanced Mil-Dot Ranging" reticle and is provisioned with fully multicoated lenses that contribute to the brightness and contrast of the optics. By locating the reticle in the first focal plane the size of the pattern increases as the magnification is increased. This is preferred by many tactical groups for use as a point of aim and as a means of measurement. The side focus feature allows parallax adjustment to keep the reticle and target aligned regardless of the shooters head position. An extra-hard coating on the exterior lens surfaces protects the optics from the scratches and abrasions that all too often occur in the rough and tumble world of tactical endeavors. With a comfortable eye relief of approximately 4 inches and a ¼ MOA click value for the windage and elevation turret adjustments, this riflescope is furnished with all the features required for tactical work. This is a serious glass for serious situations. - Argon purged to eliminate internal fogging
- Reset-to-zero turrets allow consistently accurate and precise target acquisition
- Waterproof, shockproof and fogproof provide rugged and durable protection to the scope
- Powerful 5 times magnification to move quickly from a wider to a more defined field of view
- Reticle located in the first focal plane allows the size of the pattern to increase as the magnification is increased
- Fully multicoated optics: multiple layers on all air to glass surfaces for a brighter, higher-contrast image with less eyestrain
- Side focus parallax adjustment provides compensation for the shooters head movement as it affects the apparent movement of the target relative to the reticle
- The Illuminated Enhanced Mil-Dot Ranging Reticle has four heavy weight posts immediately morphing into 4 light weight posts. There is an open-center subtention at the intersection of the cross hairs so that the target is not blocked. All four stadia have alternating open dots and hash marks for bullet drop and the proper hold over for accurate long range shot placement. The EMDR is a first focal plane, glass-etched, reticle
UPC: 076683803634 In the Box Weaver 3-15x50 Tactical Riflescope (Matte Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weaver 3-15x50 Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeaver 800363 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 33.9' @ 100 yd / 11.3 m @ 100 m
15x: 6.8' @ 100 yd / 2.3 m @ 100 m | | Exit Pupil Diameter | 3x: 16.7 mm
15x: 3.3 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | Enhanced MIL Ranging Dot Reticle | | Illumination | Illuminated | | | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 34.3 cm | | Weight | 27.3 oz / 773.9 g | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 16.9 x 4.3 x 3.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
