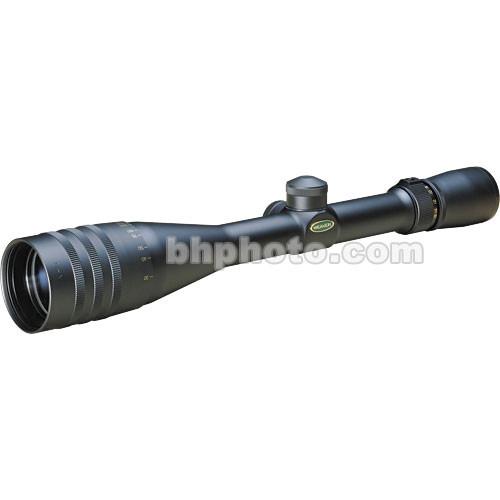

User Manual for Weaver 4-16x42 V-16 V-Series Riflescope Click to enlarge the picture
Contents of the user manual for the Weaver 4-16x42 V-16 V-Series Riflescope
- Product category: Riflescopes Weaver
- Brand: Weaver
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weaver Riflescopes
|
User manual for the Weaver 4-16x42 V-16 V-Series Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weaver product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weaver user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weaver product will considerably shorten its lifespan!
|
Product description Ideally suited for mid to long-range use in all lighting conditions, the Weaver Optics 4-16x42 V-16 V-Series Riflescope is outfitted with a wide and versatile zoom range and an objective that draws in a generous amount of light while still capable of being mounted relatively low to the rifle. Its classic design and ease-of-use is carried through with textured zoom and adjustable objective parallax correction collars, low-profile capped turrets, and an uncluttered reticle. To get you on-target faster and easier, impact point correction is made at 1/4 MOA per click with a total adjustment range of 40 MOA on both the windage and elevation. Its aluminum housing features a 1" one-piece main-tube with a corrosion and scratch-resistant matte-black anodized finish. The optical tube is nitrogen-filled and O-ring sealed for water and fogproof performance in all weather and conditions. - Optical Performance
-
- 4-16x zoom magnification
- 42mm objective lens
- Fully multi-coated optics increases light transmission while improving color rendition and contrast
- Exterior lens hard-coat protects against scratches and abrasions
- 26-6.8' field of view at 100 yards
- 3.23-3.15" eye relief
- 10.5-2.7 exit pupil
- Reticle
-
- Fine crosshair
- Clean and uncluttered field of view
- Thin hairs across both axes won't obstruct targets
- 1/4 MOA center aiming dot presents a clear and easy-to-see aiming point
- Use and Handling
-
- Turrets:
- Low-profile semi-target turrets
- Finger adjustable - requires no tools
- Resettable to zero after initial sighting
- Caps keep dirt out and prevent accidental adjustment when moving through heavy brush
- 1/4 MOA per click impact point correction
- ±20 windage and elevation adjustment range
- Textured zoom collar
- Adjustable objective parallax correction
- Construction Details
-
- 1" one-piece main-tube
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant matte-black anodized finish
- Nitrogen-filled for water and fogproof performance
- Weight: 16.8 ounces
UPC: 076683494108 In the Box Weaver 4-16x42 V-16 V-Series Riflescope (Fine Crosshair Dot Reticle, Matte Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weaver 4-16x42 V-16 V-Series Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeaver 849410 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 42 mm | | Field of View | 4x: 26' @ 100 yd / 8.6 m @ 100 m
16x: 6.8' @ 100 yd / 2.3 m @ 100 m | | Exit Pupil Diameter | 4x: 10.5 mm
16x: 2.7 mm | | Eye Relief | 3.1 to 3.2" / 80 to 82 mm | | | | Reticle Type | Crosshair-Dot Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment |
