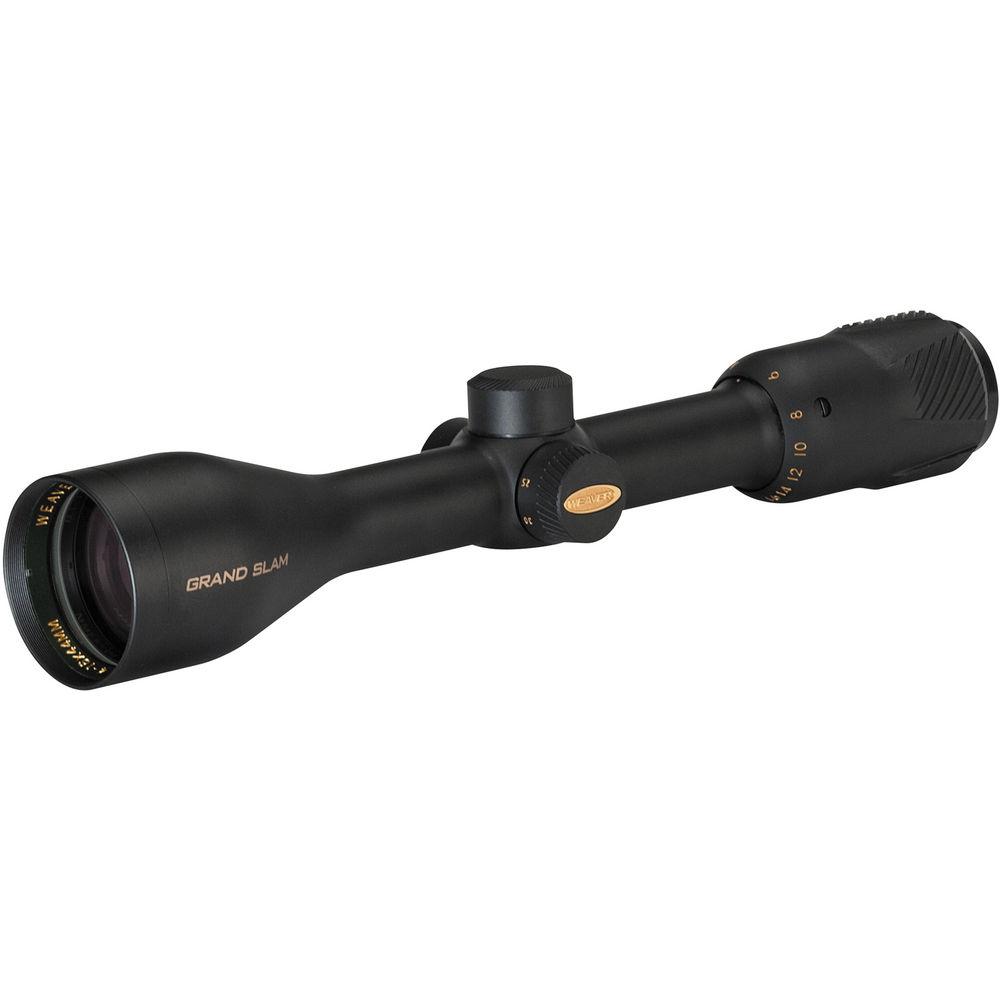

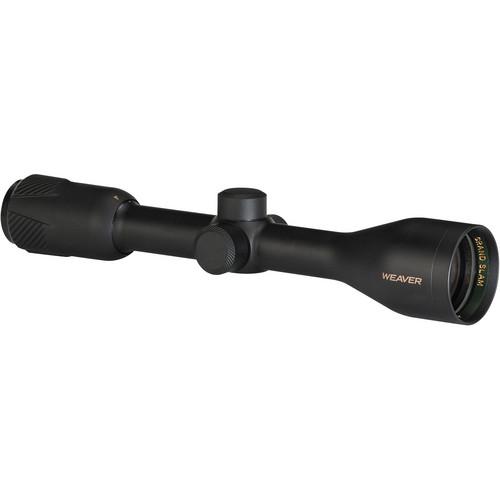

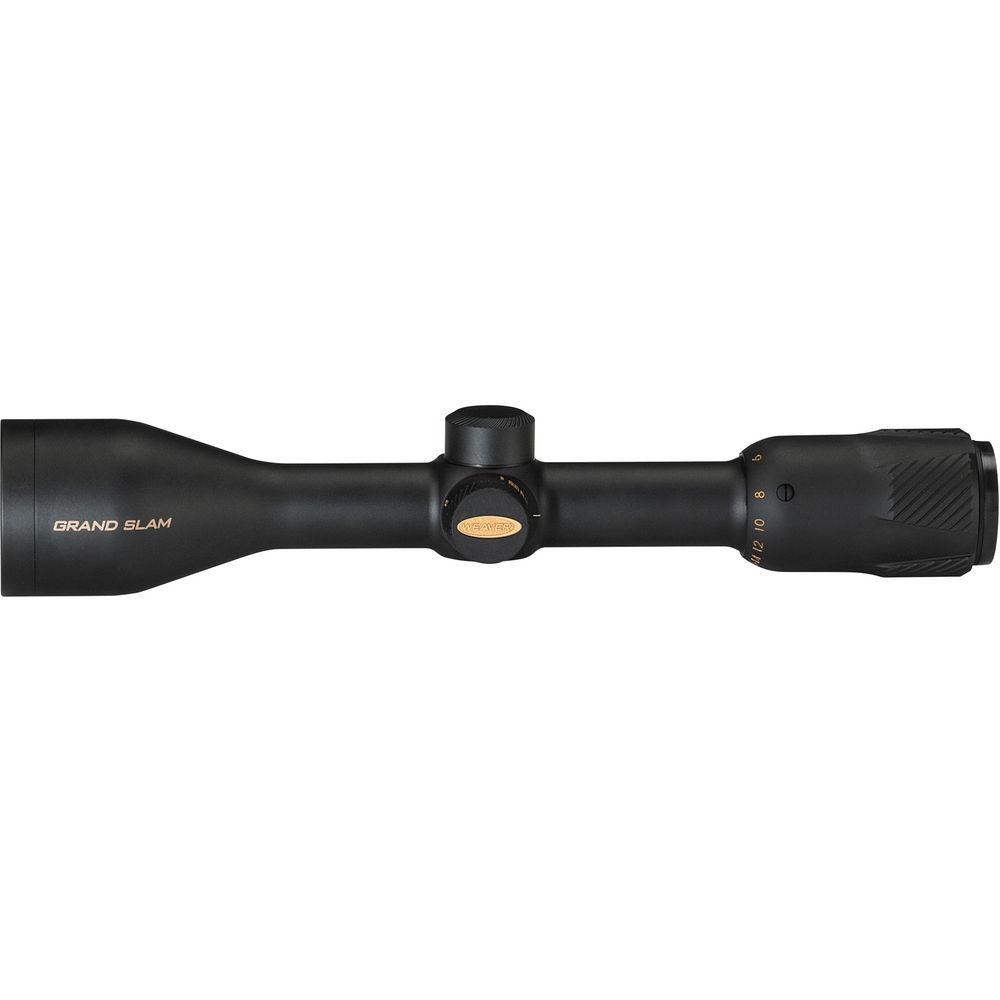

User Manual for Weaver 4-16x44 Grand Slam Riflescope Click to enlarge the picture
Contents of the user manual for the Weaver 4-16x44 Grand Slam Riflescope
- Product category: Riflescopes Weaver
- Brand: Weaver
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weaver Riflescopes
 |
User manual for the Weaver 4-16x44 Grand Slam Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weaver product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weaver user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weaver product will considerably shorten its lifespan!
|
Product description Designed for close to mid-range use, the Weaver 4-16x44 Grand Slam Riflescope is outfitted with a wide and versatile zoom range, an objective with competent light gathering ability without being oversized, and fully multi-coated optics help to improve overall image brightness while boosting contrast and color fidelity. Its duplex crosshair reticle presents a simple and uncluttered aiming point for easy use at all distances. Windage, elevation, and parallax-adjustment turrets are capped to prevent dirt, dust, water, and grime from getting into the mechanism while also preventing accidental adjustments when moving through dense foliage. Made of a lightweight and durable aluminum alloy with a 1" one-piece main-tube, the scope's exterior has a matte-black anodized finish to protect it from corrosion and abrasion. To withstand the rigors of the outdoors, the housing is argon-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 4-16x zoom magnification
- 44mm objective lens
- Fully multi-coated optics improves color rendition, contrast, and overall image brightness
- 23-6' field of view at 100 yards
- 3.5-3.2" eye relief
- 11-3mm exit pupil
- Reticle Details
-
- Conventional duplex crosshair
- Simple and clean reticle design with limited obstruction
- Long and thick outer posts
- Short thin center hairs
- Use posts or long-range shooting
- Center hairs provide precise aiming points for close or small targets without obstructing them
- Use and Handling
-
- Textured and rubberized fast zoom collar
- Capped turrets
- Help keep dirt and grime out while preventing accidental adjustments
- Textured caps for easy removal even in cold or wet conditions
- 1/4 MOA per click impact point correction
- 40 MOA windage and elevation adjustment range
- Side parallax adjustment turret
- Construction Details
-
- One-piece 1" main-tube
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant matte-black anodized finish
- Argon-filled for water and fogproof performance
UPC: 076683806505 In the Box Weaver 4-16x44 Grand Slam Riflescope (Dual-X) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weaver 4-16x44 Grand Slam Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeaver 800650 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 44 mm | | Field of View | 4x: 23.4' @ 100 yd / 7.8 m @ 100 m
16x: 6.3' @ 100 yd / 2.1 m @ 100 m | | Exit Pupil Diameter | 4x: 11 mm
16x: 2.75 mm | | Eye Relief | 3.2 to 3.5" / 81.3 to 88.9 mm | | | | Reticle Type | Dual-X Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 11" / 28 cm | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 16.8 x 3.5 x 3.2" |
