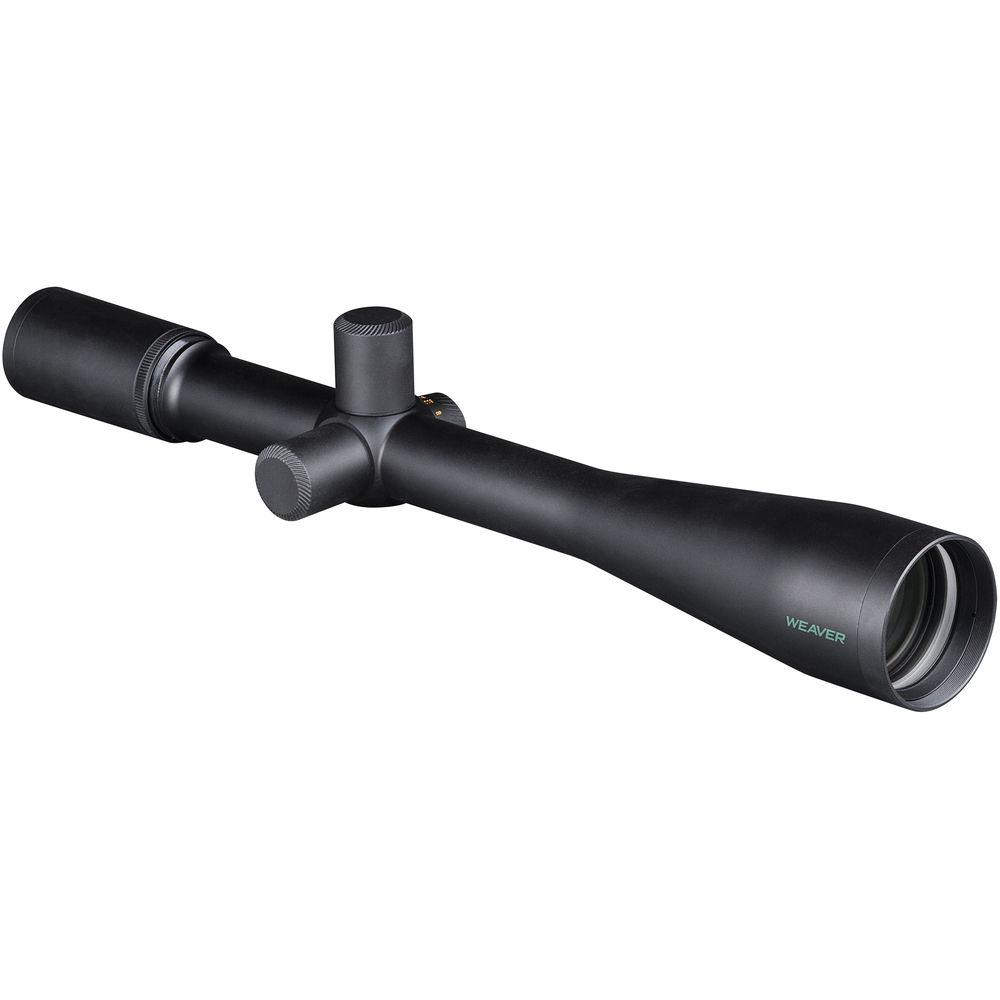

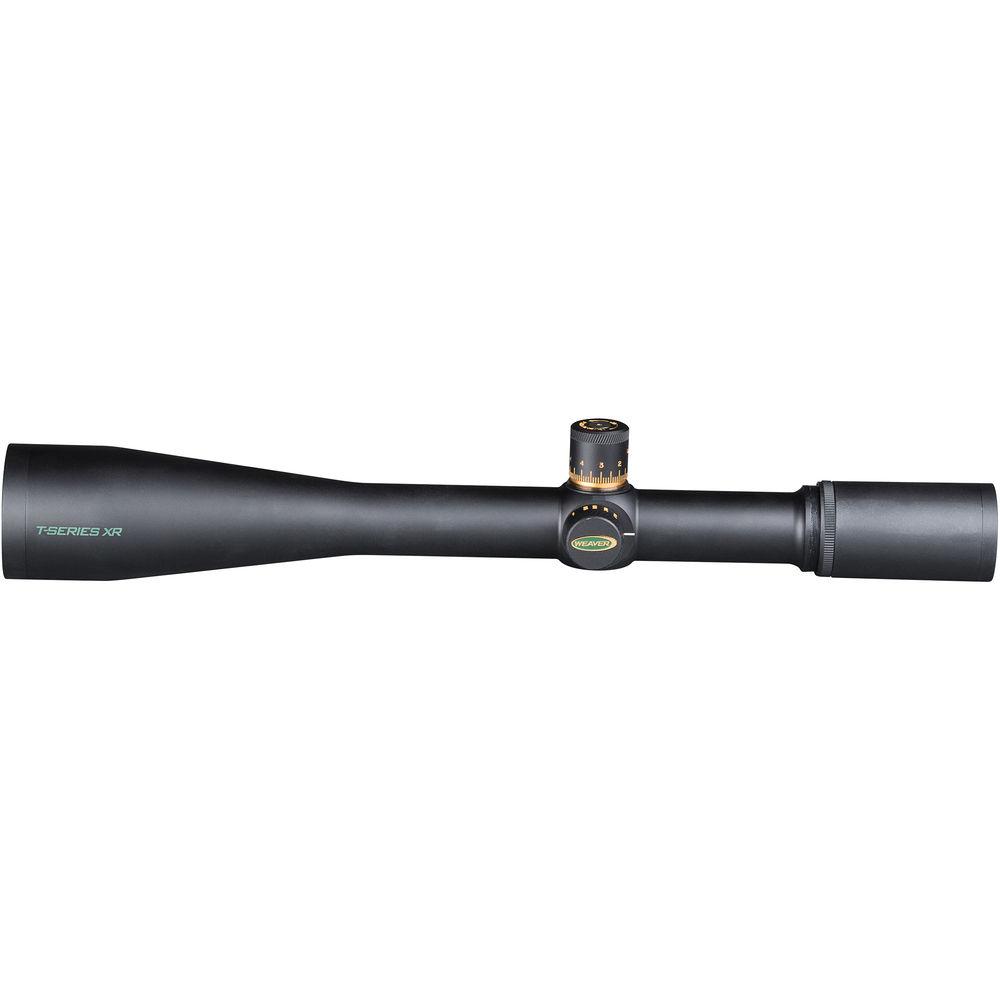

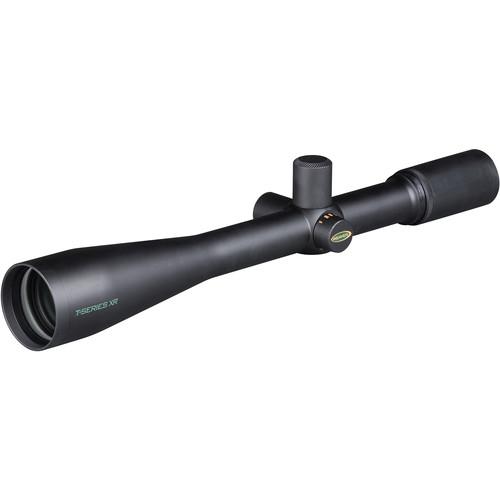

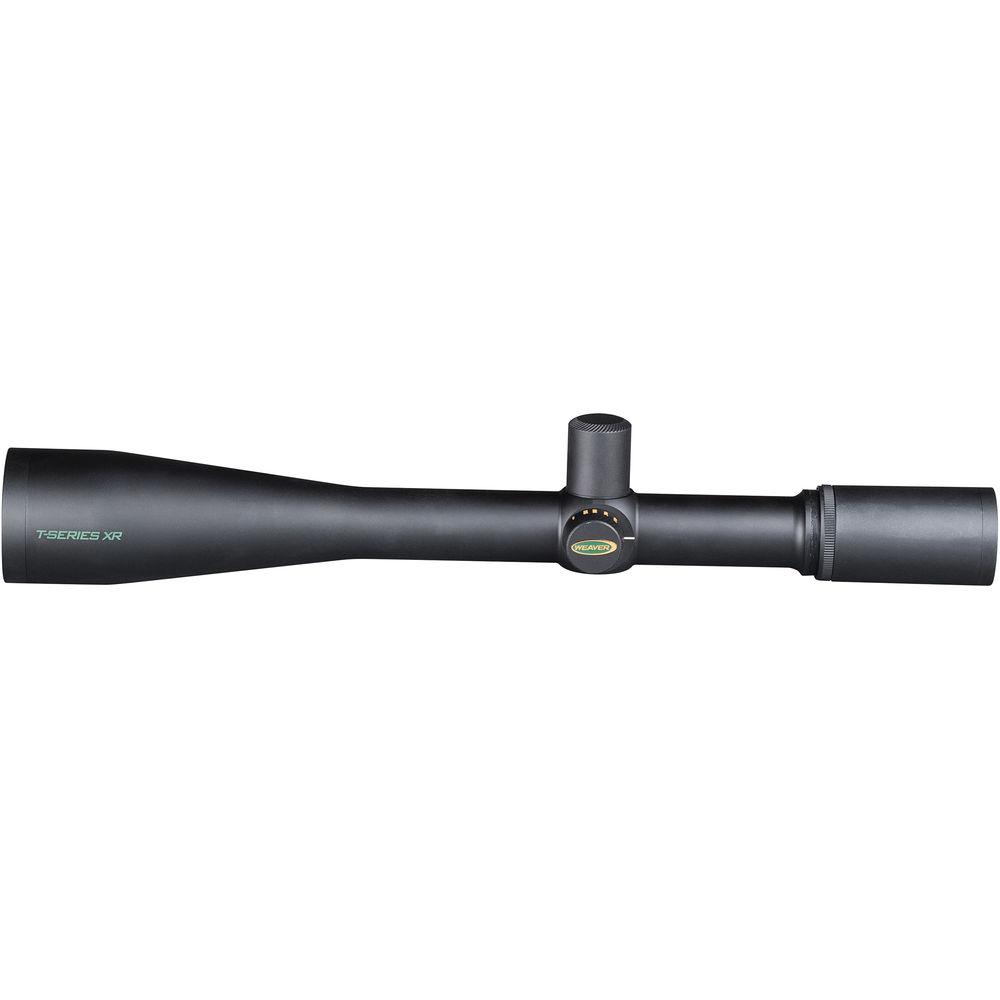

User Manual for Weaver 46x48 T-Series XR Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Weaver 46x48 T-Series XR Side Focus
- Product category: Riflescopes Weaver
- Brand: Weaver
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weaver Riflescopes
 |
User manual for the Weaver 46x48 T-Series XR Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weaver product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weaver user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weaver product will considerably shorten its lifespan!
|
Product description Designed specifically to address the needs of long range precision shooting, the matte black 46x48 T-Series XR Side Focus Riflescope from Weaver features a Micro-Trac adjustment system for competition-level precision, tall windage and elevation adjustments with completely independent control, 1/8 MOA per click increments, and a side-focus parallax adjustment. The fully multi-coated optics provide maximum possible transmission of light, improve contrast and detail, and reduce glare. To reduce glare from the sun, you can attach the included sunshade to the objective bell. To help you compensate for wind drift and ballistic bullet drop, the scope offers 44 MOA windage elevation adjustment ranges.
The Fine Crosshair Reticle features a thin crosshair, provides a clear unobstructed view of your target, and allows for precise target acquisitions.
The housing with 30mm main tube is durable, waterproof, and shock-resistant. To prevent inner optical surfaces from fogging-up when you are moving through environments with changing temperatures, the housing is purged with argon gas and sealed. - Optical Performance
-
- Fully multi-coated
- 46x magnification
- 48mm objective
- 2.3' at 100 yd linear field of view
- 3.5" eye relief
- Use and Handling
-
- 1/8 MOA impact point correction
- 44 MOA windage and elevation ranges
- Construction Details
-
- Micro-Trac adjustment system improves competition-level precision
- 30mm single-piece aluminum main tube
- Tall windage and elevation knobs
- Side focus parallax correction
- Sunshade included
- Argon-purged, fogproof
- Shock-resistant
- Waterproof
UPC: 076683899873 In the Box Weaver 46x48 T-Series XR Side Focus Riflescope (Fine Crosshair Reticle, Matte Black) Sunshade Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weaver 46x48 T-Series XR Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeaver 849987 Specs | | | Magnification | 46x | | Objective Lens Diameter | 48 mm | | Field of View | 2.3' @ 100 yd / 0.8 m @ 100 m | | Exit Pupil Diameter | 1 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | Crosshair Reticle | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 44 MOA | | Elevation Adjustment | 44 MOA | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 16.1" / 410 mm | | Weight | 23.8 oz / 675 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 19.0 x 6.9 x 4.1" |
