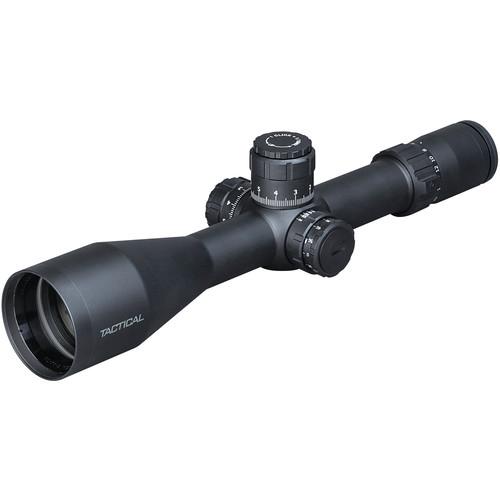

User Manual for Weaver 6-30x56 Tactical Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Weaver 6-30x56 Tactical Side Focus Riflescope
- Product category: Riflescopes Weaver
- Brand: Weaver
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weaver Riflescopes
|
User manual for the Weaver 6-30x56 Tactical Side Focus Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weaver product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weaver user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weaver product will considerably shorten its lifespan!
|
Product description Designed specifically to address the needs of low-light, long range, and precision shooting, the 6-30x56 Tactical Side Focus Riflescope from Weaver features the widest-in-its-class 56mm objective aperture, wide zooming range, and a red illuminated Improved Mil-Dot Ranging reticle. The optics are fully multi-coated with a scratch-resistant exterior layer. They provide maximum possible transmission of light, improve contrast and detail, and reduce glare. To reduce glare from the sun, you can attach the included sunshade to the objective bell. To help you compensate for wind drift and ballistic bullet drop, the scope offers 40 MOA windage and 80 MOA elevation adjustment ranges with 1/10 mil per click increments.
Located in the first focal plane is a unique, improved Mil-Dot Ranging reticle with adjustable red illumination. It assists with precision target acquisition and features a thin illuminated cross-hair with major and minor marks. On the periphery, there are four short square posts. The illumination is powered by the included CR-2032 battery and has five brightness levels.
The matte black housing is durable, waterproof, and shock-resistant. It features a single-piece 34mm maintube, locking resettable turrets, and a locking zoom eyepiece. To prevent fogging-up of optics on the inside, when you are moving through environments with changing temperatures, the housing is purged with argon gas and sealed. All knobs and adjustments on this riflescope are knurled for slip-free operation. - Optical Performance
-
- Fully multi-coated
- Scratch-resistant exterior coating layer
- 6-30x magnification
- 56mm objective
- 3.1-0.6° angle of view
- 3.6" eye relief
- Improved Mil Dot Ranging Reticle
-
- 1st focal plane keeps reticle features scaled with targets
- Red-illuminated crosshair and marks
- SmartZero
-
- Mechanical Zero
- Make swift, accurate elevation adjustments
- Easily reset turrets to zero
- Use and Handling
-
- 1/10 mil impact point correction
- 40 MOA windage and 80 MOA elevation ranges
- Construction Details
-
- 34mm single-piece aluminum maintube
- Resettable turrets with knurled knobs
- Side focus parallax correction
- Sunshade included
- Argon-purged fogproof
- Shock-resistant
- Waterproof
UPC: 007668380390 In the Box Weaver 6-30x56 Tactical Side Focus Riflescope (IMDR) - CR-2032 Battery
- Sunshade
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Weaver 6-30x56 Tactical Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeaver 800390 Specs | | | Magnification | 6 to 30x | | Objective Lens Diameter | 56 mm | | Field of View | 6x: 16.3' @ 100 yd / 5.4 m @ 100 m
30x: 3.2' @ 100 yd / 1.1 m @ 100 m | | Exit Pupil Diameter | 6x: 8.2 mm
30x: 1.9 mm | | Eye Relief | 3.6" / 91 mm | | | | Reticle Type | MIL Ranging Dot Reticle (First Focal Plane) | | Illumination | Illuminated | | Illuminated Color | Red | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 80 MOA | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.5" / 36.8 cm | | Weight | 40.1 oz / 1.1 kg |
