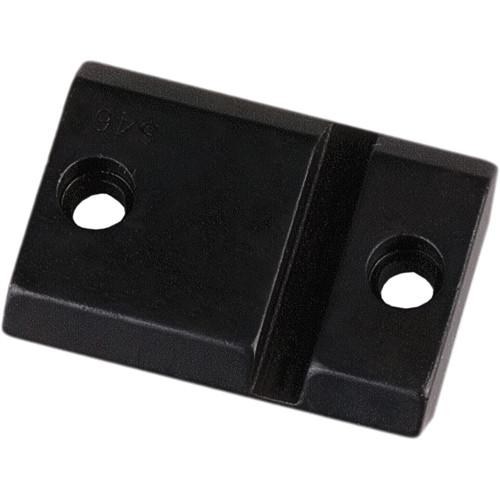

User Manual for Weaver Grand Slam Steel Top Mount Base #S402 Click to enlarge the picture
Contents of the user manual for the Weaver Grand Slam Steel Top Mount
- Product category: Bases & Mounts Weaver
- Brand: Weaver
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weaver Bases & Mounts
|
User manual for the Weaver Grand Slam Steel Top Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weaver product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weaver user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weaver product will considerably shorten its lifespan!
|
Product description The matte black Grand Slam Steel Top Mount Base #S402 from Weaver has been machined to tight tolerances for a custom fit. A square-cut notch mates to the sturdy cross bolt in every Weaver top mount ring. - Extension Rear Base for:
- Navy Arms Country Boy Muzzleloader
- Savage Axis Series, 10, 12, 110, 112 (all long action AccuTrigger); 10, 12, 110, 112 (all short action AccuTrigger); 10 ML II
- Stevens Savage/Stevens 200
Extension Front Base for: - Anschutz 1568
- Browning Bolt Action BBR, Hi-Power, Other Caliber (older models), BBR (Bolt Action), long and short actions
- Churchill 950, 950-C, 972-C
- Marlin 455, MR7
- Mauser 1.4" diameter receiver ring 98FN, 1.3" diameter receiver ring (Swedish 96)
- Musgrave Mark I, II, III, IV
- Navy Arms Country Boy Muzzleloader
- Parker-Hale 1000, 1000C, 1100, 1200, 1700
- Colt 57
- Cooey 71
- Enfield with receiver cut down like Winchester 70
- H&R 300, 301, 330, 370 (pre-1973); 300, 301 L.A. in 270, 30-06, 7mm, 300 Win (1973+)
- Herters J9
- Interarms Viscount
- Savage Axis Series, 10, 12, 16 (short actions); Striker; Pistol; 510, 512, 516 S/A, 10 ML (2-piece only) pre-2003 models; 110, 112, 116 (long actions ); 210 Shotgun (use X-high rings) pre-2003 models; 10, 12, 110, 112 (all long action AccuTriggers); 10, 12, 110, 112 (all short action AccuTriggers); 10 ML II
- Schultz & Larsen
- Sears 50, 51, 51L, 53
- Smith & Wesson Mauser Actions with small 1.3" diameter receiving ring
- Stevens 110E, Savage/Stevens 200
- Voere 2150, 2165/1, 2165/2, 2165/3, 2165/4 (Mauser Action)
- Weatherby FN Mauser-style actions
- Winchester 52 with same hole spacing, 70 Long Action with same hole spacing, 670, 770, 70 Long Action with different hole spacing, 70 Super Express, 70 Short Action (1984+)
Note: For the Mauser Receiver Ring with a 1.4" diameter (98FN) and Receiver Ring with a 1.3" diameter (Swedish 96) shimming is probably required for perfect scope alignment. The rear base may require modifications for correct fit to military actions.
Note: For the Interarms Viscount, shimming is probably required for perfect scope alignment.
Note: For the front extension base Savage Axis Series, 10, 12, and 16 (short actions); Striker; Pistol; 510, 512, 516 S/ A, 10 ML (2-piece only) pre-2003 models; 110, 112, 116 (long actions); and 210 Shtg (use X-high rings) pre-2003 models shorter tube scopes or red dot scopes use #402 extension front base or one-piece base if available. Extension base allows an extra 0.689".
Note: The front and rear extensions for the Savage 10, 12, 110, 112 (all long action AccuTriggers), 10, 12, 110, 112 (all short action AccuTrigger), and Stevens Savage/Stevens 200 can be used with the tactical multi-slot base.
Note: For the Winchester 52 with the same hole spacing, 70 Long Action with the same hole spacing, 670, 770, 70 Long Action with the different hole spacing, and 70 Super Express, the handiest way to pinpoint the correct base for the Winchester 52 & Winchester 70 Long action Rifles is to check the spacing of the tapped holes for the rear base and compare it to the hole spacing for the front base. If the hole spacing is the same, then for model 52 use 46+ 46 and for model 52 use 25+ 57. If the hole spacing is different, then for model 70 use 47+ 46 and for model 70 use 49A+ 46. May require bolt and/or safety alterations to function safely and properly. Consult with a qualified gunsmith. UPC: 076683482471 In the Box Weaver Grand Slam Steel Top Mount Base #S402 (Matte Black) 2 x Custom-Hardened Fastening Screws Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weaver Grand Slam Steel Top Mount Base #S402 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeaver 48247 Specs | | | Package Weight | 0.04 lb | | Box Dimensions (LxWxH) | 2.0 x 1.0 x 0.2" |
