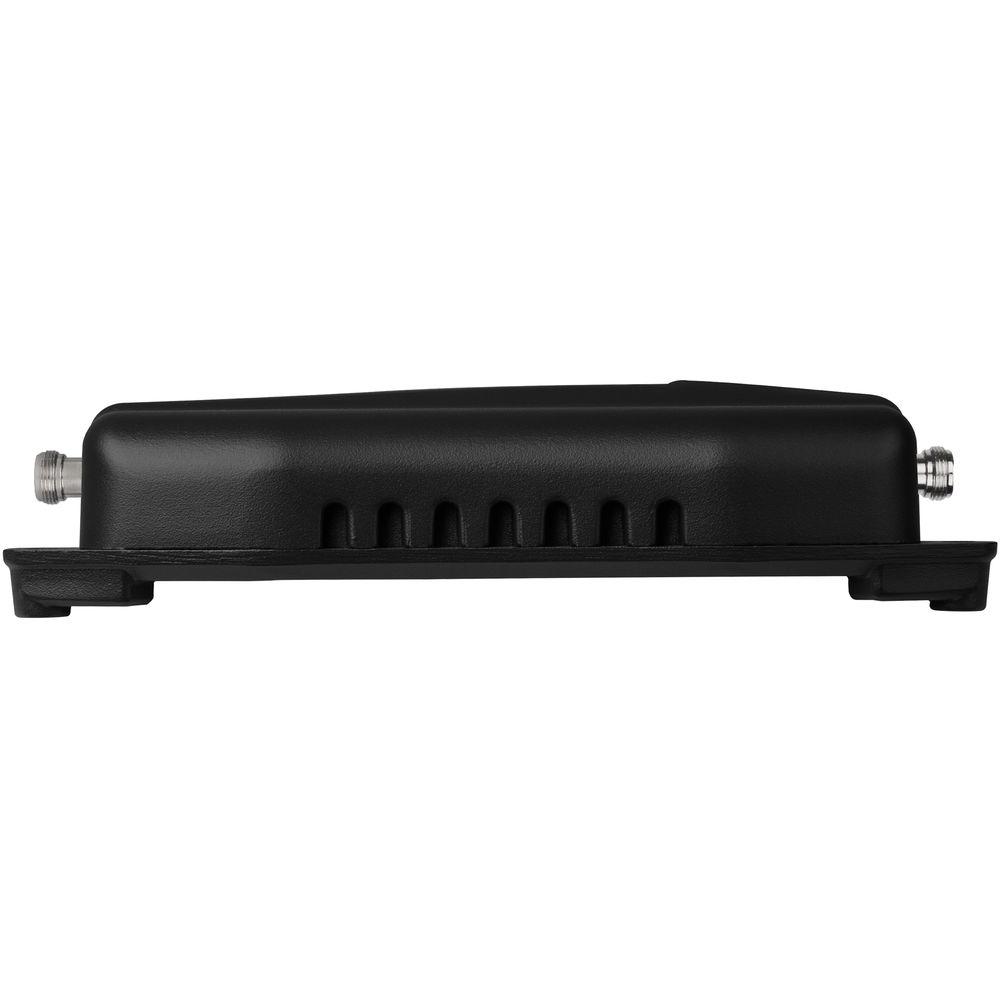

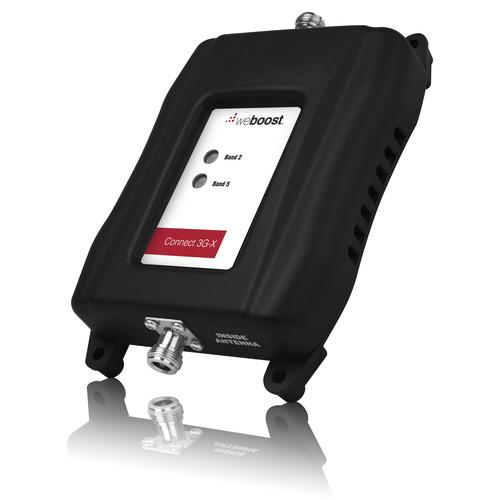

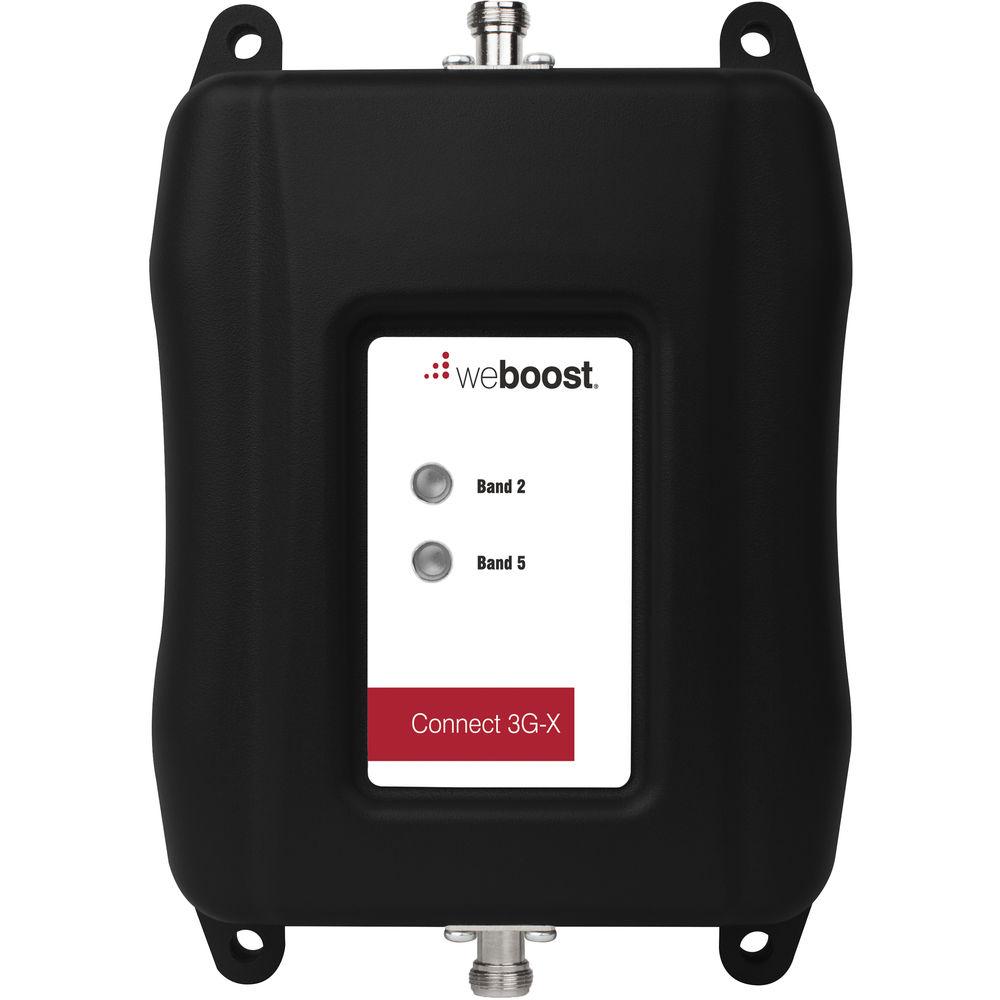

User Manual for weBoost Connect 3G-X Cellular Signal Booster for Large Homes and Offices Click to enlarge the picture
Contents of the user manual for the weBoost Connect 3G-X Cellular Signal Booster
- Product category: Home/Office Cell Phone Signal Boosters weBoost
- Brand: weBoost
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for weBoost Home/Office Cell Phone Signal Boosters
 |
User manual for the weBoost Connect 3G-X Cellular Signal Booster contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any weBoost product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official weBoost user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a weBoost product will considerably shorten its lifespan!
|
Product description Boost the 3G cellular signal strength of your large home or office environment with the Connect 3G-X Cellular Signal Booster from weBoost. This amplifier kit includes the 3G-X signal amplifier, an indoor panel antenna, and an outdoor antenna. Once connected via the included coax cables, these devices work together to boost the 3G cellular signal from most U.S. carriers by up to 70 dB for a coverage area of 7500 sq. ft. In addition to boosting 3G data speeds, the 3G-X is backwards compatible, which means it can also amplify the signal for talk, text, and 2G data. This increased signal means faster data downloads, more reliable coverage, and extended range for all your cellular devices, including smartphones, tablets, and laptops. Additionally, the Connect 3G-X features dynamic, self-adjusting gain controls that automatically customize the gain level on each frequency band as conditions require.
The Connect 3G-X includes everything you need for a quick and easy DIY installation. Before you install and use the Connect 3G-X, you should verify you have consent from you carrier to use a signal booster and that the frequency bands your carrier uses are supported. - Boosts 3G signal from most U.S. cell carriers
- Extends cellular signal range
- Reliable cell signal and more consistent data speeds
- FCC & Industry Canada Certified
- All components needed for installation in one package
UPC: 811815024361 In the Box weBoost Connect 3G-X Cellular Signal Booster for Large Homes and Offices Panel Antenna Kit Outside Antenna Power Supply Mounting Brackets and Hardware Limited 2-Year Warranty More info from weBoost rqbqrwd Table of Contents
|
Upload User Manual
Have you got an user manual for the weBoost Connect 3G-X Cellular Signal Booster for Large Homes and Offices in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

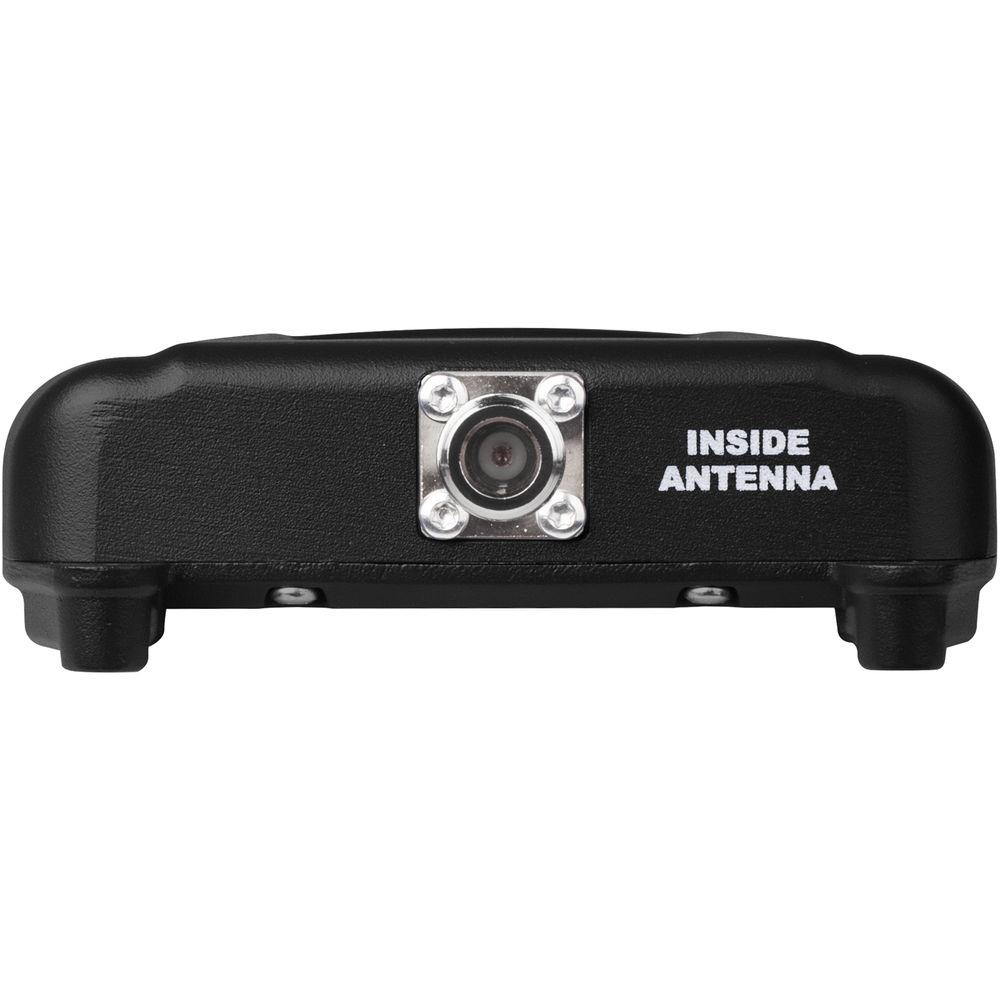

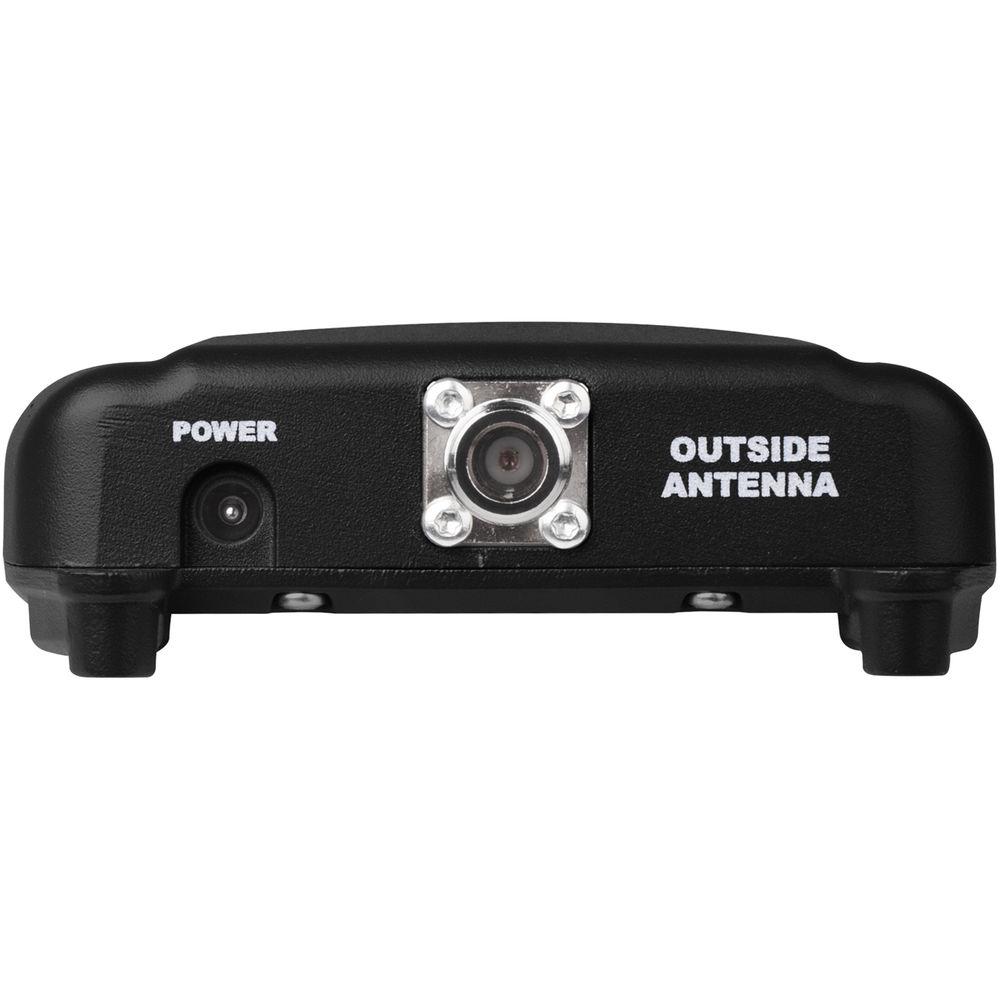

Technical parametersweBoost 470105 Specs | Connectors | Inside Antenna: F-female
Outside Antenna: F-female | | Impedance | Inside Antenna: 50 ohms
Outside Antenna: 50 ohms | | Frequency | 824-894 MHz
1850-1990 MHz | | Frequency Bands | 5, 2 | | Gain | 70 dB | | Power Output | Uplink:
800/1900 MHz: 24.9/22.5 dBm
Downlink:
800/1900 MHz: -2.2/-2.1 dBm | | Noise Figure | Typical Downlink/Uplink: 3 dB nominal/6 dB nominal | | Isolation | > 90 dB | | Power Requirements | AC/DC 6 V, 2.5 A | | Dimensions | 6.75 x 4.2 x 1.25" / 17.1 x 10.8 x 3.17 cm | | Weight | 1.27 lb / 0.54 kg |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
