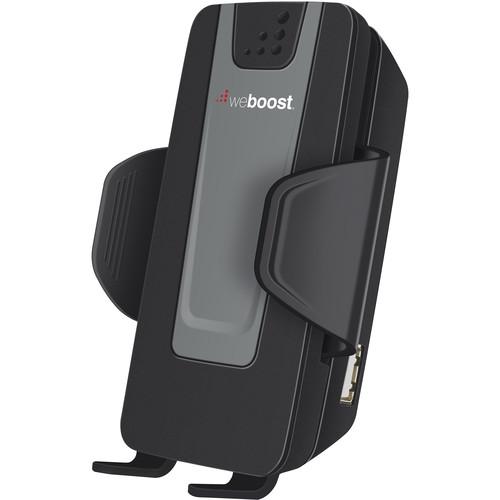

User Manual for weBoost Drive 3G-S Cellular Signal Booster Click to enlarge the picture
Contents of the user manual for the weBoost Drive 3G-S Cellular Signal Booster
- Product category: Home/Office Cell Phone Signal Boosters weBoost
- Brand: weBoost
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for weBoost Home/Office Cell Phone Signal Boosters
|
User manual for the weBoost Drive 3G-S Cellular Signal Booster contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any weBoost product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official weBoost user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a weBoost product will considerably shorten its lifespan!
|
Product description Boost your 3G cellular signal while you're on the road with the Drive 3G-S Cellular Signal Booster from weBoost. This booster kit includes the Drive 3G-S signal amplifier and an outside mini-magnet antenna. Once connected, these work together to boost the 3G cellular signal from most U.S. carriers by up to 23 dB. In addition to boosting data speeds, the Drive 3G-S is backwards compatible, which means it can also amplify the signal for talk, text, and 2G data. The increased signal means faster downloads, more reliable coverage, and extended range for all your cellular devices, including smartphones, tablets, and laptops. The Drive Booster can even deliver up to 2 hours of additional talk time in weak signal areas.
The Drive 3G-S is a single-user booster, meaning it's designed to enhance the cellular signal of the device held inside its cradle. The kit includes everything you need for a quick and easy DIY installation. Before you install and use the Drive 3G-S, you should verify you have consent from you carrier to use a signal booster and that the frequency bands your carrier uses are supported. - Boosts signal for most U.S. cell carriers
- Extends cellular signal range
- Reliable cell signal and more consistent data speeds
- FCC & Industry Canada Certified
- All components needed for installation in one package
UPC: 811815024972 In the Box weBoost Drive 3G-S Cellular Signal Booster Mini-Magnet Mount Outside Antenna Vehicle Dash Adhesive Mounting Bracket DC Plug-In Power Supply & USB Cable Limited 2-Year Warranty More info from weBoost eayaexyasawcbbcazbzdr Table of Contents
|
Upload User Manual
Have you got an user manual for the weBoost Drive 3G-S Cellular Signal Booster in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersweBoost Drive 3G-S Specs | Connectors | SMA-female | | Frequencies | 824-894 MHz/1850-1990 MHz | | Frequency Bands | 5, 2 | | Impedance | 50 ohms | | Gain | 23 dB (max) | | Power Output | Uplink (800/1900 MHz): 22.9/25.2 dBm
Downlink (800/1900 MHz): -28.0/-29.1 dBm | | Noise Figure | 3 dB nominal | | Isolation | > 40 dB | | Power Requirements | 5.5 V, 1 A | | Dimensions | 2.75 x 4.4 x 2.25" / 7 x 11.2 x 5.7 cm | | Weight | 2.5 oz / 0.07 kg | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.9 x 6.1 x 2.8" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
