User Manual for Weldex 10.4" Industrial TFT LCD Rack Mountable Monitor Click to enlarge the picture
Contents of the user manual for the Weldex 10.4" Industrial TFT LCD Rack
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex 10.4" Industrial TFT LCD Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|

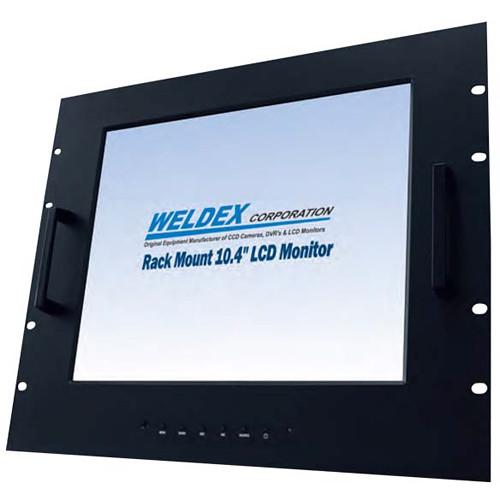

Product description View vibrant, dynamic pictures with the 10.4” Industrial TFT LCD Rack Mountable Monitor from Weldex. Featuring 800 x 600 resolution and 16.7M colors with 300 cd/m² brightness, the monitor depicts the finest details accurately and clearly. The on-screen display menu provides feature and video adjustments for quick changes to contrast, color, language, and video and input selection. With multiple inputs and compatibility with NTSC, PAL, and SECAM formats, the monitor can be used with almost any security video recorder. - Design fits in a standard 19" rack mount housing
- Displays images with resolutions up to 800 x 600 pixels
- Composite video, S-video, and VGA PC inputs for video signals
- Features audio (left / right) line inputs and built-in speaker
- Supports 16.7 million colors for true color rendition
- Automatic switching between NTSC, PAL, and SECAM formats
- Wide viewing angle of 120° horizontal and 100° vertical
- On-screen menu display for feature and video adjustments
In the Box Weldex 10.4" Industrial TFT LCD Rack Mountable Monitor Power Supply Wirless Remote Control PC Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 10.4" Industrial TFT LCD Rack Mountable Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-1040MR Specs | Display Type | Active matrix color TFT LCD | | Diagonal Screen Size | 10.4" (26.4 cm) | | Viewable Size | 8.9 x 6.8 x 0.2" (22.8 x 17.5 x 0.6 cm) | | Viewing Angle | Up: 50° / Down: 60° / Right: 75° / Left: 75° | | Pixel Pitch (H x V) | 0.264 x 0.264 mm | | Brightness | 300 cd/m2 | | Contrast Ratio | 500:1 | | Resolution | SVGA (800 x 600) | | Colors | 16.7M | | Pixel Format | RGB stripe | | Interface | Analog | | Video Input | Analog RGB (0.7 Vpp), S-video, composite (0.7 Vpp) | | Input Connectors | 1 x DC power in (12 VDC), 1 x VGA 15pin D-sub, 1 x audio L/R in & speaker out & speaker in TV In(option), 1 x video 1/2, S-VHS, external source signal (option) | | Speaker | 2 W x 2 stereo | | Plug & Play | VESA DDC 1/2B | | System Compatibility | NTSC, PAL, SECAM (auto detection) | | Power | 100 to 240 VAC, 60/50 Hz, 12 VDC / 3 A | | Power Requirements | Maximum: 30 W
Saving Mode: 5 W | | Response Time | tb+tr: 10 ms (typical) / 20 ms (maximum) | | Video Source | Composite, S-VHS | | Dimensions (WxHxD) | 19.0 x 2.0 x 8.7" (48.3 x 5.1 x 22.2 cm) | | Weight | 15.4 lb (6.9 kg) |
