User Manual for Weldex 10.4" Wall-Mountable TFT LCD CCTV Monitor Click to enlarge the picture
Contents of the user manual for the Weldex 10.4" Wall-Mountable TFT LCD CCTV
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex 10.4" Wall-Mountable TFT LCD CCTV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|

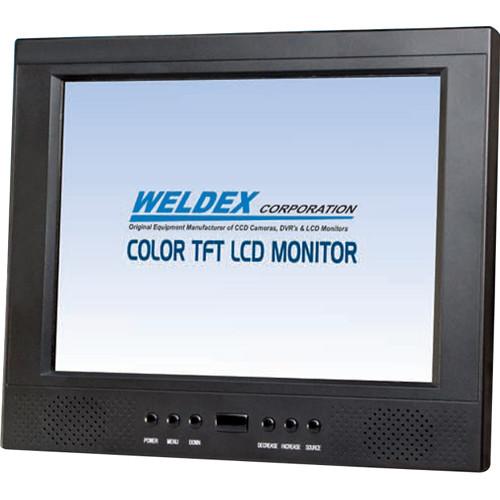

Product description The 10.4" Wall-Mountable TFT LCD CCTV Monitor from Weldex supports up to 800 x 600 resolution and features multiple video inputs including composite video, HDMI, and VGA. This industrial monitor displays images with a contrast ratio of 350:1 and a brightness of 300 cd/m2.
It offers viewing angles of up to 110° horizontally and 150° vertically. It also has an on-screen menu display for feature and video adjustments. The built-in speakers can be used to monitor audio from incoming video feeds. - 800 x 600 resolution supported
- Thin cross section of less than 2.5" deep panel
- Multiple video inputs including composite, HDMI, and VGA
- Features audio line inputs and built-in speakers
- Viewing angle of 110° horizontally and 150° vertically
- On-screen display menu for feature and video adjustments
UPC: 850246008007 In the Box Weldex 10.4" Wall-Mountable TFT LCD CCTV Monitor Wireless Remote Control PC Cable Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 10.4" Wall-Mountable TFT LCD CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-1040M Specs | Display Type | Active matrix color TFT LCD | | Diagonal Screen Size | 10.4" (26.4 cm) | | Viewable Size | 8.9 x 6.9 x 0.2" (22.8 x 17.5 x 0.6 cm) | | Viewing Angle | Up: 50°
Down: 60°
Right: 75°
Left: 75° | | Pixel Pitch | 0.264 x 0.264 mm | | Mounting | Supports wall mounting | | Brightness | 300 cd/m2 | | Resolution | SVGA (800 x 600) | | Display Color | 16.7 M colors | | Pixel Format | RGB stripe | | Interface | Analog | | Video Output | Analog RGB (0.7 Vp-p), composite (0.7 Vp-p) | | Contrast Ratio | 350:1 | | Response Time | 10 ms (typical) / 20 ms (maximum): tb+tr | | Video Inputs | Composite, HDMI, VGA | | Power Requirements | Normal Mode: 30 W
Saving Mode: 5 W | | Power Supply | 100-240 VAC, 60/50 Hz
12 VDC @ 3 A | | Speakers | Built-in 2 x 2 W stereo speakers | | Plug & Play | VESA DDC 1/2B | | I/O Connectors | 1 x DC power in (12 VDC)
1 x 15-pin VGA
1 x audio L/R in, speaker out, speaker in, TV in (option)
1 x video BNC
1 x HDMI, rear gear signal, external source signal (option) | | Signal Type | NTSC / PAL / SECAM / auto | | Dimensions (W x D x H) | 10.6 x 9 x 1.2" (27 x 23 x 3 cm) | | Weight | 2.6 lb (1.2 kg) | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 13.386 x 13.228 x 6.614" |
