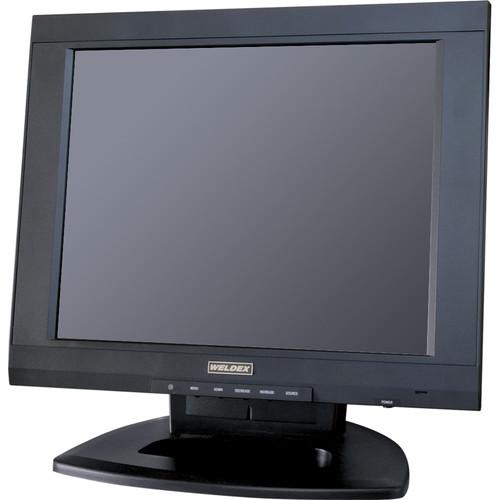

User Manual for Weldex 17" Sun Readable TFT LCD Monitor with Housing Click to enlarge the picture
Contents of the user manual for the Weldex 17" Sun Readable TFT LCD
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex 17" Sun Readable TFT LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 17" Sun Readable TFT LCD Monitor from Weldex displays video at up to 1280 x 1024. It has a contrast ratio of 500:1 and brightness level of 1200 cd/m2. The monitor features multiple inputs, such as composite video, HDMI, and D-sub. It also features audio (left/right) line inputs and a built-in speaker. This monitor offers viewing angles of up to 110° horizontally and up to 130° vertically. It also has an on-screen menu display for feature and video adjustments. The built-in speaker can be used to monitor audio from incoming video feeds. - Displays images with resolutions of up to 1280 x 1024
- Less than 2.5" deep panel
- 16.2 million colors for true color rendition
- Contrast ratio of 500:1 and brightness of 1200 cd/m2
- Multiple inputs, including composite video, HDMI, and D-sub
- Viewing angle of 140° horizontally and 150° vertically
- On-screen display menu for feature and video adjustments
In the Box Weldex 17" Sun Readable TFT LCD Monitor with Housing Power Supply Wireless Remote Control PC Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 17" Sun Readable TFT LCD Monitor with Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-1700SRM Specs | Display Type | Active matrix color TFT LCD | | Diagonal Screen Size | 17" (43.2 cm) | | Viewable Size | 337.92 x 270.336 mm | | Viewing Angle (H x V) | 140 x 150° | | Pixel Pitch | 0.264 x 0.264 mm | | Brightness | 1200 cd/m2 | | Resolution | 1280 x 1024 (SXGA) | | Display Color | 16.2 million | | Pixel Format | RGB vertical stripe | | Contrast Ratio | 500:1 | | Response Time | TR 3 ms / TF 12 ms | | Interface | Analog | | Video Input | Analog RGB (0.7 V p-p)
HDMI
Composite BNC (0.7 V p-p) | | Video Source | Composite, HDMI, VGA | | Built-In Speakers | 2 x 2 W stereo speakers | | I/O Connectors | 12 VDC power in
VGA 15-pin D-sub
Audio L/R in, speaker out, speaker in
Video: 1 x BNC, HDMI, rear gear signal, BNC loop out | | Power Supply | 100 to 240 VAC, 50 / 60 Hz
12 VDC / 4.58 A | | Power Consumption | Normal Mode: 48 W
Saving Mode: 25 W | | Plug & Play | VESA DDC 1/2B | | Signal Type | NTSC / PAL / SECAM / auto | | Operating Temperature | 14 to 86°F (-10 to 30°C) | | Mounting | Supports wall mounting | | Dimensions | 16.9 x 9 x 16.2" (42.9 x 22.9 x 41.1 cm) | | Weight | 13.2 lb (6 kg) | | | | Box Dimensions (LxWxH) | 21.25 x 21.25 x 12.0" |
