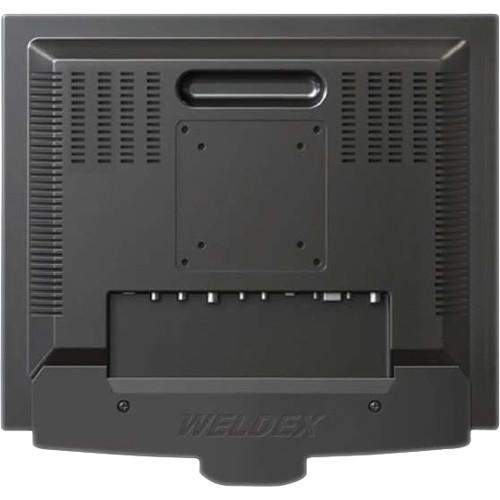

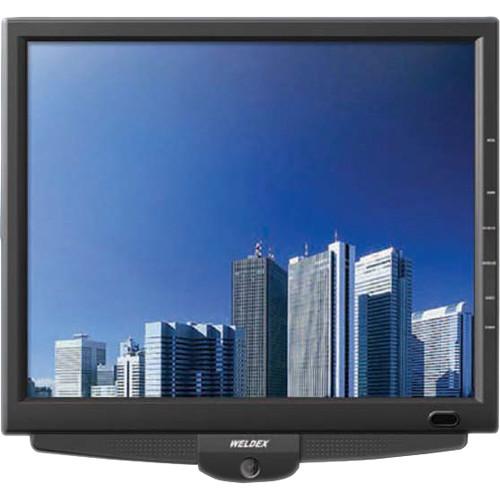

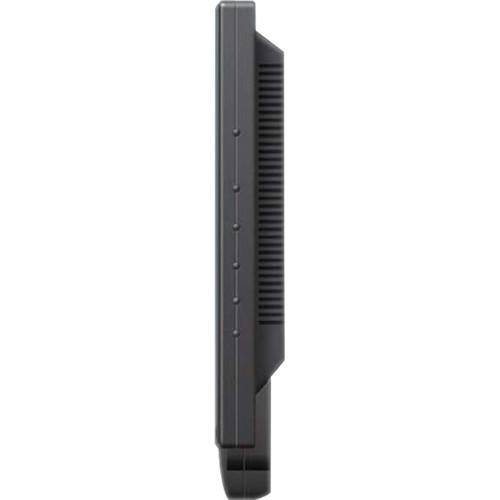

User Manual for Weldex 19" HD Public View Monitor System Click to enlarge the picture
Contents of the user manual for the Weldex 19" HD Public View Monitor
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
 |
User manual for the Weldex 19" HD Public View Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 19” HD Public View Monitor System from Weldex features an integrated 2.4MP HD camera, and is an effective theft deterrent tool creating awareness that a security surveillance system is in place. The camera records images up to 720p HD and the monitor is capable of displaying images with resolutions up to 1280 x 1024. The IR remote control and on-screen display menu provide feature and video adjustments for quick changes to camera settings, contrast, color, video, and input selection. - 19" flat-panel LCD display
- Integrated high-definition 2.4MP camera
- Captures 720p resolution videos (1280 x 720 video output)
- Adjustable camera allows for easy installation
- Multi sampling technology optimizes the image to remain clear in various lighting conditions
- Features a high dynamic range of up to 120dB
- IR remote control and on-screen display for easy setup and control
In the Box Weldex 19" HD Public View Monitor System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 19" HD Public View Monitor System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-1900PVM-HD Specs | | | Imaging Sensor | 1/3", 2.4 MP Sony CMOS sensor | | Video Output | 720p (1280 x 720) | | Electronic Shutter Speed | NTSC: 1/60 to 1/120,000 sec
PAL: 1/50 to 1/120,000 sec | | Minimum Illumination | 0.5 lux (color), 0.1 lux (B/W), 0.02 (sens-up x 30) | | Day & Night | Auto | | Other Display Settings | Adaptive Color & Contrast: Low / middle / high / off | | Noise Reduction | 2DNR / 3DNR / smart NR | | Lens | 3.6 mm, 92° viewing angle, F2.0 fix board lens | | AGC | Middle | | Motion Detection | On / off selectable | | White Balance | Automatic | | Power Source | 12 VDC, 150 mA | | Ambient Temperature | -4 to 122°F (-20 to 50°C) | | | | LCD Panel | 19.0" (48.3 cm) TFT | | Voltage Range | 100 to 240 VAC | | Power | 12 VDC / 100 W | | Format | NTSC/PAL | | Resolution (H x V) | 1280 x 1024 | | Display Colors | Dual channel LVDs 16.7M colors | | Response Time | Rising Time: 3.6 ms
Falling Time: 1.4 ms | | Luminance | 350cd/m2 | | Contrast Ratio | 1000:1 | | Viewing Angle | Vertical: 160°
Horizontal: 170° | | Operating Temperature | 23 to 122°F (-5 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (WxD) | 16.7 x 2.2" (42.4 x 5.5 cm) |
