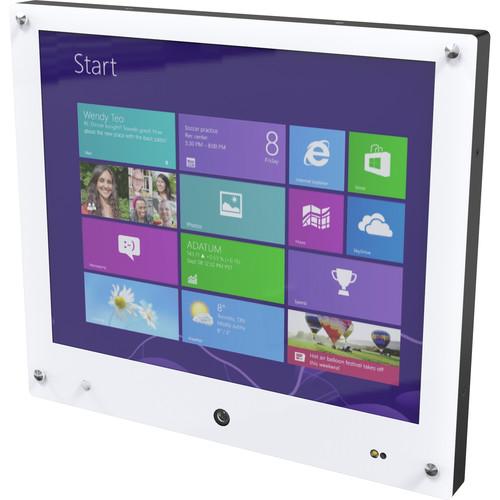

User Manual for Weldex 19" IP Public View Monitor with 1080p Camera Click to enlarge the picture
Contents of the user manual for the Weldex 19" IP Public View Monitor
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex 19" IP Public View Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 19" IP Public View Monitor with 1080p Camera from Weldex is equipped with a built-in 1920 x 1080 WDR camera. It is fully integrated with Verint, March Networks, and 3VR. This monitor has a 1280 x 1024 resolution display and features a 3D comb filter, HD analog video output (3 x CVBS loopout BNC), and multiple video inputs (3 x CVBS BNC, D-SUB, HDMI, DVI-D). This camera also supports ONVIF profile S, version 2.2. - 19" 5:4 1280 x 1024 LCD Panel
- Changeable logo clip / video clip (SD memory)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 19" IP Public View Monitor with 1080p Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-1900PVM-IP Specs | | | Screen Size | 19" (48.3 cm) | | Resolution | 1280 x 1024 | | Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Response Time | 5 ms (maximum 8 ms) | | Viewing Angle (H/V) | 170/160 | | Aspect Ratio | 5:4 | | | | Image Sensor | 2.38 MP 1/2.8" Sony progressive CMOS | | Lens | 2.9mm fixed | | Active Pixels | H x V: 1920 x 1080 | | Frame Rate | 30 fps | | Backlight Compensation | WDR (HDR) | | Compression | H.264 at HP, MJPEG | | Streaming | Multiple simultaneous H.264 streams over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS | | Resolution | 1920 x 1080 | | Frame Rate | Up to 30 fps at 1080p | | Interface | 10/100 Mbps Ethernet, RJ45 | | ONVIF | Profile S, version 2.2 support | | Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, Bonjour, RTP/RTSP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP | | Users | 8 clients monitoring at the same time | | Security | Multi-level user access with password protection
IP address filtering HTTPS encrypted data transmission | | Firmware | Supports firmware upgrade | | Booting | Dual booting for firmware recovery | | Reset to Factory Default | Factory reset | | Operation | Embedded Linux | | | | Monitor Output | CVBS (BNC) | | Camera | Loopout: CVBS (BNC) | | | | CVBS | NTSC/PAL multi (BNC 75 Ohms) | | Analog RGB | PC VGA: D-SUB15P connector | | DVI | DVI-D connector | | HDMI | HDMI connector | | | | Input | 12 VDC / 5 A | | Output | 12 V / 0.5 A (for external camera) | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 10 to 90% RH, non-condensing | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
