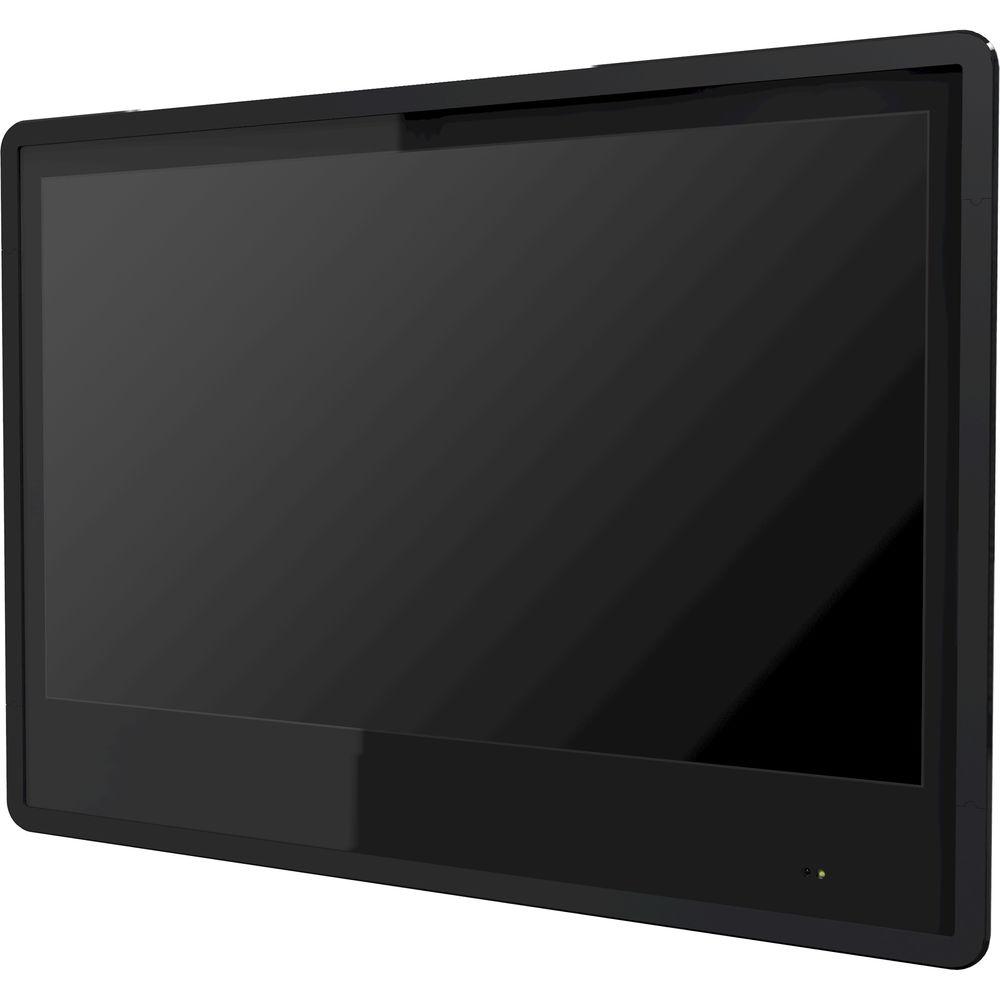

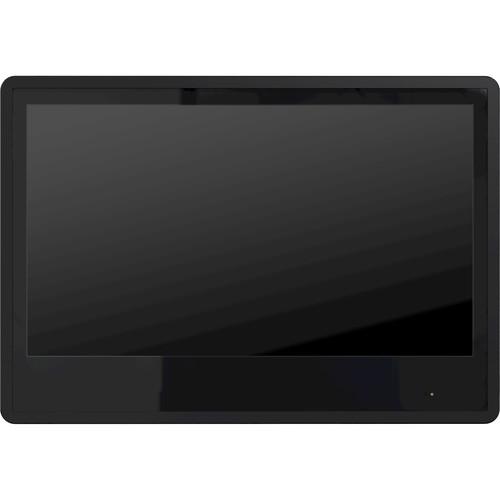

User Manual for Weldex 27" 1920 x 1080 LCD Security Monitor Click to enlarge the picture
Contents of the user manual for the Weldex 27" 1920 x 1080 LCD
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
 |
User manual for the Weldex 27" 1920 x 1080 LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|

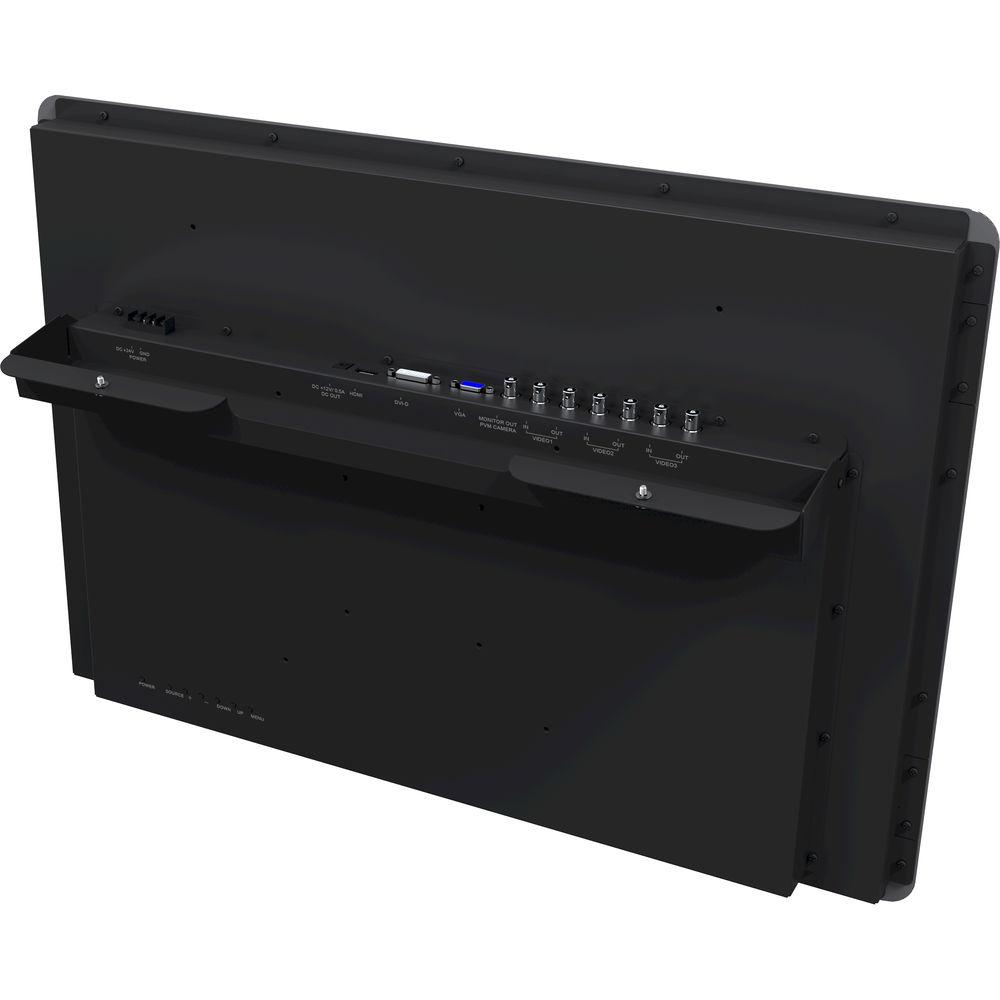

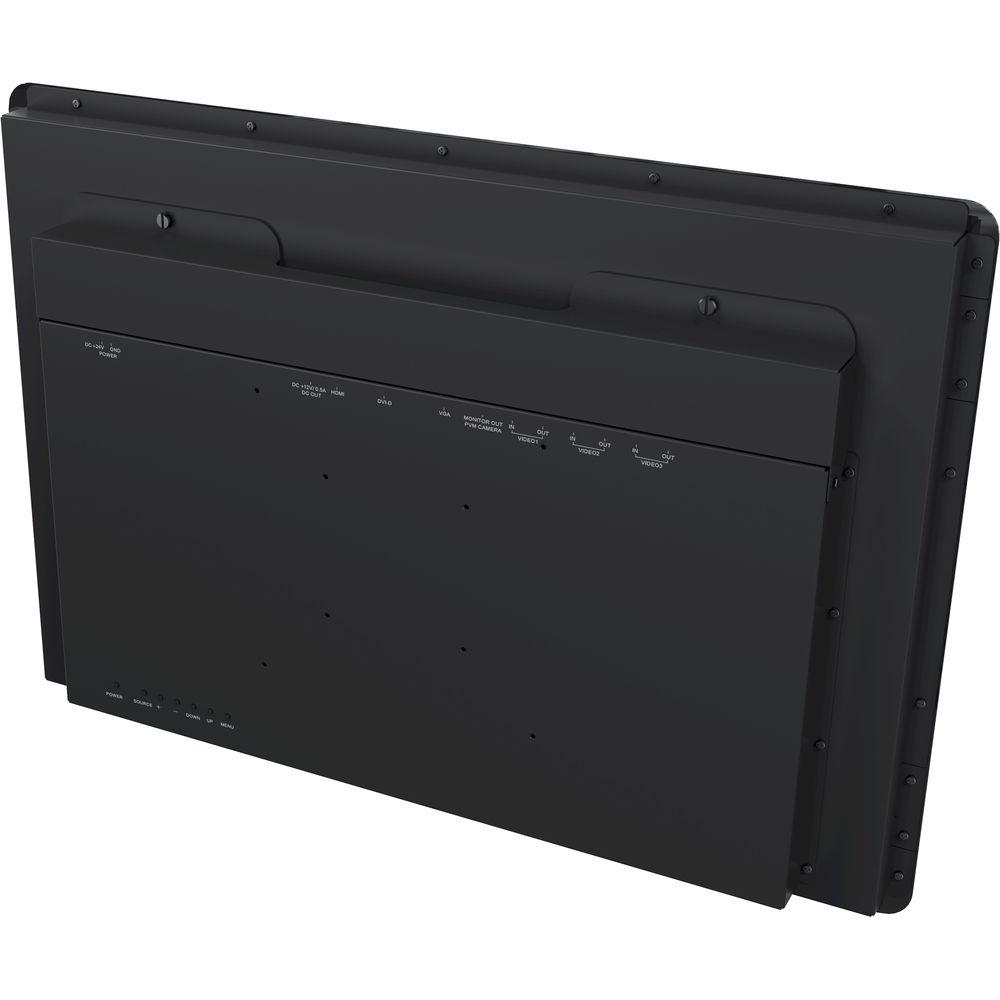

Product description The 27" 1920 x 1080 LCD Security Monitor from Weldex displays video at up to 1920 x 1080. It has a contrast ratio of 1200:1 and brightness level of 300 cd/m2. It features three composite video loop outputs and multiple video inputs, including three composite video, HDMI, VGA, and DVI-D. - Displays video at resolutions up to 1920 x 1080 in 16:9 aspect ratio
- Wide viewing angles of 170/178°
- Multiple inputs, including three composite video, HDMI, VGA, and DVI-D
- Three composite video outputs (loopout BNC)
- Controlled via OSD (on-screen display), control button panel, or IR remote control (included)
- 3D motion adaptive de-interlace
- Accepts 24 VDC / 2.5A power input
- Outputs 12 VDC / 0.5A power to external cameras
- Supports 100 x 100 and 200 x 200 VESA wall mounting
In the Box Weldex 27" 1920 x 1080 LCD Security Monitor Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 27" 1920 x 1080 LCD Security Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-2700M Specs | | | Diagonal Screen Size | 27" (68.6 cm) | | Resolution | 1920 x 1080 | | Viewing Angle (H/V) | 170/178° | | Aspect Ratio | 16:9 | | Brightness | 300 cd/m2 | | Contrast Ratio | 1200:1 | | Response Time | 5 ms (maximum 8 ms) | | | | Video Input | 3 x composite video (NTSC/PAL multi, BNC 75 Ohms)
1 x analog RGB / PC VGA (15-pin D-sub)
1 x DVI-D
1 x HDMI | | Video Output | 3 x composite video (loopout BNC) | | | | Power Input | 24 VDC / 2.5 A | | Maximum Power Consumption | 32 W | | Power Output | 12 VDC / 0.5 A for external cameras | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 10 to 90% RH, non-condensing | | Dimensions | 26.4 x 18.4 x 2.7" (671 x 467.5 x 69.6 mm) | | Weight | Not specified by the manufacturer |
