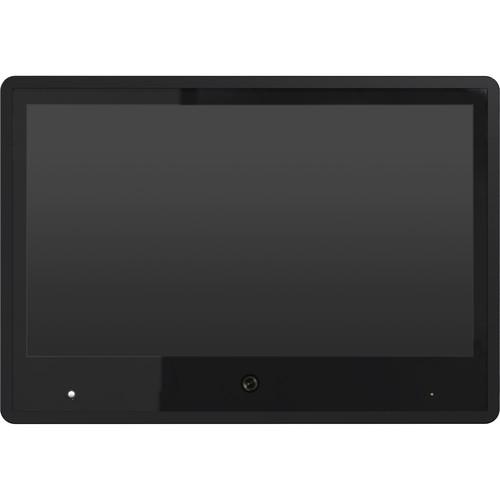

User Manual for Weldex 27" Public View 1080p Monitor with 1080p Camera Click to enlarge the picture
Contents of the user manual for the Weldex 27" Public View 1080p Monitor
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex 27" Public View 1080p Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 27" Public View Monitor from Weldex displays videos at up to 1920 x 1080. It has a contrast ratio of 1200:1 and brightness level of 300 cd/m2. This public view monitor is equipped with a built-in 1920 x 1080 WDR camera. It features multiple video inputs, such as three composite video, HDMI, VGA, and DVI-D. It also features three composite video loop outputs and one composite video loop output for the built-in camera. - Displays video at resolutions up to 1920 x 1080 in 16:9 aspect ratio
- Built-in 1920 x 1080 WDR camera
- Wide viewing angle of 170°/178°
- Multiple inputs, including three composite video, HDMI, VGA, and DVI-D
- Three composite video outputs (loopout BNC)
- One built-in camera output (loopout BNC)
- Controlled via OSD (on screen display), control button panel, or IR remote control (included)
- Indicator LED to indicate the recording progress
- Supports up to four camera views with timed source switching (one built-in camera and three external analog cameras)
- Offers automatic power up and source recovery
- 3D motion adaptive de-interlace
- Users can mask off unused channels
- "Recording in progress" message is displayed at the bottom of screen during recording
- Font size and color message can be changed via OSD menu
- Accepts 24 VDC / 2.5A power input
- Outputs 12 VDC / 0.5A power to external cameras
- Supports 100 x 100 and 200 x 200 VESA wall mounting
In the Box Weldex 27" Public View 1080p Monitor with 1080p Camera Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 27" Public View 1080p Monitor with 1080p Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-2700PVM Specs | | | Diagonal Screen Size | 27" (68.6 cm) | | Resolution | 1920 x 1080 | | Viewing Angle (H/V) | 170°/178° | | Aspect Ratio | 16:9 | | Brightness | 300 cd/m2 | | Contrast Ratio | 1200:1 | | Response Time | 5 ms (maximum 8 ms) | | | | Image Sensor | 1/2.8" Sony 2.38 MP progressive scan CMOS | | Lens | 2.8-12mm, DC auto iris varifocal lens | | Active Pixels | 1920 x 1080 | | Frame Rate | 30 fps | | Backlight Compensation | WDR (HDR) | | | | Video Input | 3 x composite video (NTSC/PAL multi, BNC 75 Ohms)
1 x analog RGB / PC VGA (15-pin D-sub)
1 x DVI-D
1 x HDMI | | Video Output | 3 x composite video (loopout BNC)
1 x built-in camera composite video (loopout BNC) | | | | Power Input | 24 VDC / 2.5 A | | Maximum Power Consumption | Not specified by the manufacturer | | Power Output | 12 VDC / 0.5 A for external cameras | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 10 to 90% RH, non-condensing | | Dimensions | 26.4 x 18.4 x 2.7" (671 x 467.5 x 69.6 mm) | | Weight | Not specified by the manufacturer |
