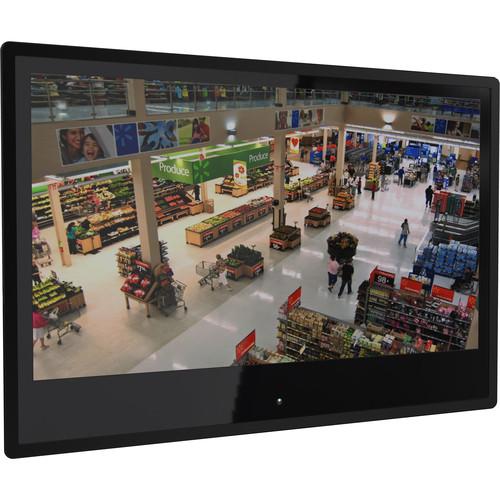

User Manual for Weldex 27" Ultra-Thin IP Public View Monitor Click to enlarge the picture
Contents of the user manual for the Weldex 27" Ultra-Thin IP Public View
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
 |
User manual for the Weldex 27" Ultra-Thin IP Public View contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 27” Ultra-Thin IP Public View Monitor from Weldex features an integrated 2.1MP HD camera and is an effective theft deterrent tool creating awareness that a security surveillance system is in place. The camera features a 1/3” image Sony CMOS sensor and 2.8 to 12mm varifocal lens. It records images with resolutions up to 1920 x 1080 at 30 fps. The 27” monitor displays Full HD images with a brightness of 300 cd/m2 and 3000:1 contrast.The monitor features an “A” commercial-grade panel for reliable operations over a long period of time. With 3D comb-filter and de-interlace, the display offers crisp and clear images. The monitor allows you to remotely monitor the area under surveillance with a 10/100 Mbps Ethernet port and support for IP protocols. It supports H.264 and MJPEG compression formats for simultaneous multi-streaming of data. - 27" IP public view monitor with 2.1MP HD camera
- Support remote viewing via an Ethernet port
- "A" Commercial-grade display panel for reliable performance
- Supports ONVIF Profile S specifications
- Features a motion sensor for saving storage space by recording only when motion is detected
- Offers automatic power up and source recovery
- Supports PIP, PBP, VOV display modes
- Features BNC (NTSC / PAL), VGA, 2 HDMI, DVI, and PC Stereo connections
- 3D comb-filter, de-interlace offer crisp and clear images in different lighting conditions
In the Box Weldex 27" Ultra-Thin IP Public View Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 27" Ultra-Thin IP Public View Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-2700IPPVM Specs | | | Imaging Sensor | 1/3" inch Sony 2.1M Progressive CMOS | | Lens | DC auto Iris 2.8 to 12 mm Varifocal | | Active Pixels | 1920 (H) x 1080 (V) | | Frame Rate | 30 fps | | | | Size | 27.0" (68.6 cm) | | Resolution | 1920 x 1080 | | Brightness | 300 cd/m2 | | Contrast Ratio | 3000:1 | | Response Time | 12 ms | | Viewing Angle | Horizontal/Vertical: 178° | | Aspect Ratio | 16:9 | | | | Compression | H.264 @HP, MJPEG | | Streaming | Simultaneous multiple streams
H.264 streaming over UDP,TCP,HTTP or HTTPS, and MJPEG streaming over HTTP or HTTPS | | Resolution | 1920 x 1080 | | Frame Rate | Up to 30 fps @ 720p | | Interface | 10/100 Mb/s Ethernet, RJ-45 | | ONVIF | Profile S / Version 2.2 Support | | Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, BONJOUR RTP/RTSP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP | | Users | Up to 8 clients simultaneously | | Security | Multi-level user access with password protection, IP address filtering HTTPS encrypted data transmission | | Firmware | Supports Firmware upgrade | | Boot | Dual booting with support for firmware recovery | | Reset | Restores to factory default settings | | Operating System | Embedded Linux | | | | Video Output | Camera loopout: CVBS
Video Monitor Out: CVBS | | Video Input | CVBS (3D comb Deinterlacer) | | RGB | Analog: PC VGA
Digital: DVI
HDMI: 1 port | | Audio | 3.5 mm stereo jack | | Power Input | 110 to 220 VAC (12 VDC adapter, not included) | | | | Indicator LEDs | Key REC: Red / Green | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 14 to 140°F (-10 to 60°) | | Dimensions | Active Area: 23.7 x 13.2" (59.7 x 33.6 cm)
Monitor: 26.1 x 17.8 x 1.7" (66.2 x 45.2 x 4.4 cm) | | | | Package Weight | 35.0 lb | | Box Dimensions (LxWxH) | 33.1 x 26.1 x 7.4" |
