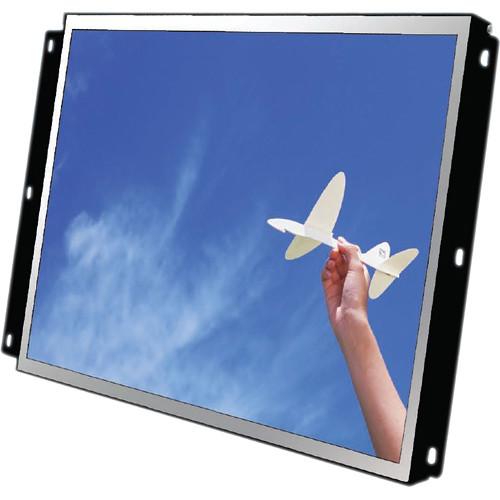

User Manual for Weldex 6.4" Sun Readable Open-Frame Monitor Click to enlarge the picture
Contents of the user manual for the Weldex 6.4" Sun Readable Open-Frame Monitor
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex 6.4" Sun Readable Open-Frame Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 6.4" Sun Readable Open-Frame Monitor from Weldex displays images with resolutions up to 640 x 480 pixels. Supporting 16.7M colors with 1200 cd/m² brightness, the monitor depicts the finest details accurately and clearly even in bright sunlight. The on-screen display menu provides feature and video adjustments for quick changes to contrast, color, video and input selection. It features a D-Sub, BNC, and an HDMI input. - 6.4" monitor that displays images clearly even in bright sunlight with brightness of 1200cd/m2
- Displays images with resolutions up to 640 x 480 pixels
- Supports 16.7 million colors for true color rendition
- Wide viewing angle of 160° horizontal and 160° vertical
- On-screen menu display for feature and video adjustments
- Features composite video, D-Sub, and HDMI inputs
In the Box Weldex 6.4" Sun Readable Open-Frame Monitor Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 6.4" Sun Readable Open-Frame Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-6400SRF Specs | | | Diagonal Screen Size | 6.4" (16.2 cm) | | Brightness | 1200 cd/m2 | | Contrast Ratio | 600:1 | | Resolution | 640 x 480 | | Colors | 16.7M | | Viewing Angle (H x V) | 160 x 140° | | | | Compatibility | PC: VESA standard VGA to SXGA 75 Hz
Video: NTSC, PAL, SECAM (auto detection) | | Frequency | Horizontal: 31.5 to 37.5 kHz
Vertical: 56 to 75 Hz | | Input Signals | Analog RGB, CVBS, S-Video | | Video Input | 1 x D-SUB for RGB, 1 x RCA for CVBS (optional), 1 x mini DIN for S-video, IR receiver (optional) | | OSD Controls | Auto adjust, brightness & contrast, size & position, color control, language selection, OSD position, video control, input selection | | Plug and Play Support | DDC 1/2B | | | | Power Management | VESA DPMS | | Power Consumption | Normal mode: 25 W (maximum), DPMS mode: < 4 W | | Power Supply | Input: 100 to 240 VAC, 50/60 Hz / Output: 12 VDC, 3.3 A | | Temperature | Operating / Storage: -22 to 185°F (-30 to 85°C) | | Humidity | Operating: 30 to 60%
Storage: 5 to 70% | | Dimensions (WxHxD) | 6.5 x 5.7 x 1.6" (16.4 x 14.6 x 4.1 cm) | | Weight | 2.3 lb (1.0 kg) |
