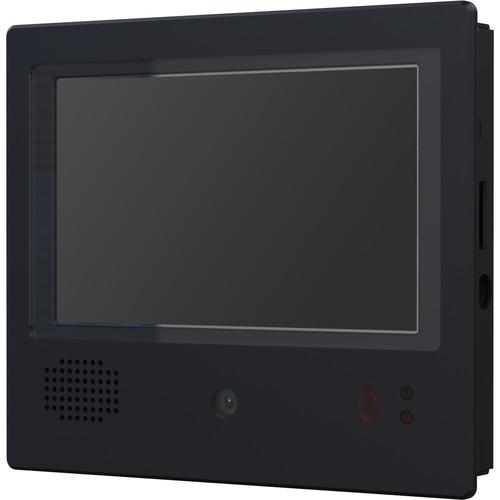

User Manual for Weldex 7" IP HD Public View Monitor with 2.1MP Camera Click to enlarge the picture
Contents of the user manual for the Weldex 7" IP HD Public View
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex 7" IP HD Public View contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 7" IP HD Public View Monitor from Weldex is equipped with a built-in 2.1MP pinhole camera. It is fully integrated with Verint, March Networks, and 3VR. This monitor features a blinking indicator LED (blue, red, green) or blinking message to indicate when recording is in progress. -
- ONVIF Profile S
- Pinhole lens
- PoE support
- BNC looping output
In the Box Weldex 7" IP HD Public View Monitor with 2.1MP Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 7" IP HD Public View Monitor with 2.1MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-7IPPVM Specs | | | Screen Size | 7" (17.8 cm) | | Resolution | 800 x 480 | | Brightness | 400 cd/m2 | | Contrast Ratio | 500:1 | | Response Time | <20 ms | | Viewing Angle (H/V) | 140°/120° | | Aspect Ratio | 16:9 | | | | Image Sensor | 2.1 MP 1/3" Sony IMX122 CMOS | | Scanning System | Progressive scan | | Focal Length | 2.0mm | | Lens Type | Pinhole-type covert lens | | Electronic Shutter Speed | Auto / Flk
NTSC: 1/30 to 1/50,000 sec
PAL: 1/25 to 1/50,000 sec | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Backlight Compensation | BLC / HLC / Off | | Contrast Enhancement | Low / middle / high / off | | AGC | Low / middle / high | | Day & Night | Auto / B&W / color (selectable) | | Noise Reduction | 2DNR / 3DNR / SMART NR | | S / N Ratio | More than 50 dB | | Min. Illumination | Color: 1.0 lux
B&W: 0.5 lux, 0.02 lux (sens-up x 60) | | | | Compression | H.264 at HP, MJPEG | | Streaming | Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP/HTTPS
MJPEG streaming over HTTP or HTTPS | | Resolution | 640 x 480, 800 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 1024, 1920 x 1080 | | Frame Rate | Up to 30 fps at 1920 x 1080 | | | | Interface | 10 / 100 Mbps Ethernet, RJ45 | | ONVIF | 8 clients monitoring at the same time | | Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, Bonjour, RTP/RTSP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP | | Users | Supports firmware upgrade | | | | Ethernet | RJ45 jack | | Power Input | 2.1 mm DC jack | | | | Power Over Ethernet (PoE) | IEEE 802.3af | | Power Supply | 12 VDC 4 A | | Power Consumption | <0.7 A | | Dimensions | 7.24 x 5.83 x 1.06" (187 x 148 x 27 mm) | | Weight | Not specified by the manufacturer |
