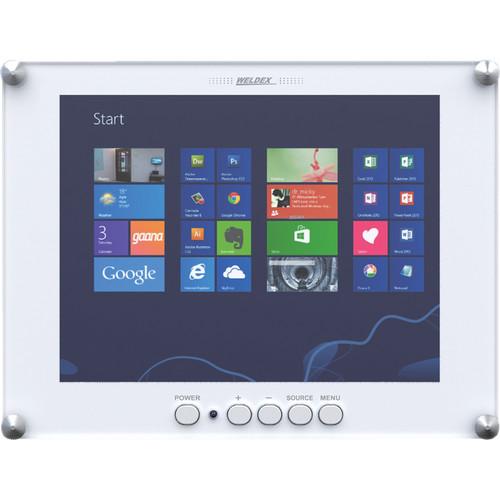

User Manual for Weldex 8.4" TFT Flush Mount LCD CCTV Monitor Click to enlarge the picture
Contents of the user manual for the Weldex 8.4" TFT Flush Mount LCD
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex 8.4" TFT Flush Mount LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 8.4" TFT Flush Mount LCD CCTV Monitor from Weldex displays video in 800 x 600 resolution at 600:1 contrast ratio. It comes with multiple inputs (composite video, D-sub, S-VHS) and 250 cd/m2 brightness. This LCD monitor has onscreen display menus for feature and video adjustments. - 262,000 million colors for true color rendition
In the Box Weldex 8.4" TFT Flush Mount LCD CCTV Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex 8.4" TFT Flush Mount LCD CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-8400MFM Specs | Diagonal Screen Size | 8.4" (21.3 cm) | | Brightness | 250 cd/m2 | | Contrast Ratio | 600:1 | | Maximum Resolution | 800 x 600 | | Colors | 262,144 colors | | Viewing Angle | Up: 80°
Down: 60°
Left: 80°
Right: 80° | | Compatibility | PC: VESA standard, VGA, SVGA up to 65 Hz
Video: NTSC, PAL, SECAM (auto detection) | | Frequency | Horizontal: 28.5 to 37 kHz
Vertical: 65 Hz | | Input Signals | Analog RGB, CVBS, SVHS | | Input Connectors | D-sub for RGB
RCA for CVBS | | OSD Controls | Auto adjust, brightness and contrast, size and position, color control, language selection, OSD position, video control, and input selection | | Plug and Play Support | DDC 1/2B | | Power Management | VESA DPMS | | Power Consumption | DPMS Mode: <4 W | | Power Supply | Input: 100 to 240 VAC, 50 to 60 Hz
Output: 12 VDC, 3.3 A | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | Operating: 30 to 60%
Storage: -5 to 70% | | Dimensions | 10 x 7.6 x 1.6" (256 x 194 x 39.5 mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 4.505 lb | | Box Dimensions (LxWxH) | 10.7 x 8.1 x 6.2" |
