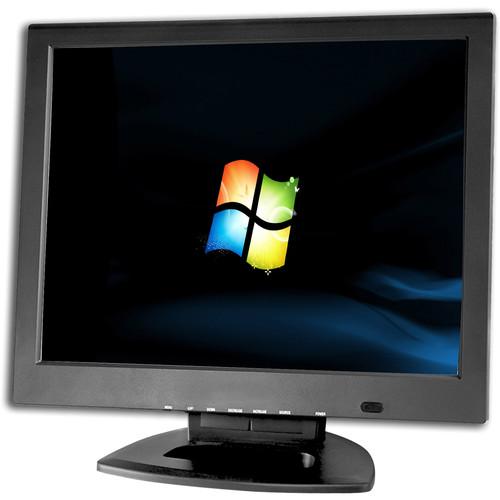

User Manual for Weldex Color 19" TFT LCD SXGA Monitor Click to enlarge the picture
Contents of the user manual for the Weldex Color 19" TFT LCD SXGA
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex Color 19" TFT LCD SXGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The Color 19" TFT LCD SXGA Monitor from Weldex features 1280 x 1024 (SXGA) resolution and 16.7 million colors with 250 cd/m2 brightness. The on-screen display menu provides for feature and video adjustments or changes to contrast, color, language, and video and input selection. With multiple inputs and compatibility with VESA standards, NTSC, PAL, and SECAM, the monitor can be used with almost any security video recorder. It features an upgraded scaler that produces a clear and crisp image. - Resolution at up to 1280 x 1024 (SXGA)
- 16.7 million colors for true color rendition
- Multiple inputs such as composite video, HDMI, and D-sub
- Audio (left/right) line inputs and built-in speaker
- On-screen menu display for feature and video adjustments
In the Box Weldex Color 19" TFT LCD SXGA Monitor Wireless Remote Control 2 x AAA Batteries Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex Color 19" TFT LCD SXGA Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-1900M Specs | Display Type | Active matrix color TFT LCD | | Screen Size | 19" (483 mm) diagonal | | Resolution | 1280 x 1024 (SXGA) | | Contrast Ratio | 1000:1 | | Viewable Size | 14.8 x 11.8" (376.3 x 301.1 mm) | | Viewing Angle (H x V) | 160 x 160° | | Pixel Pitch (H x V) | 0.294 x 0.294 mm | | Brightness | 250 cd/m2 | | Display Color | 16.7 million color | | Pixel Format | RGB vertical stripe | | Interface | Digital | | Video Output | Analog RGB (0.7 V p-p), composite (0.7 V p-p) | | Video Source | Composite, HDMI, VGA | | Built-in Speakers | 2 x 2 W (stereo) | | Plug & Play | VESA DDC 1/2B | | I/O Connector | 12 VDC power in, VGA 15-pin D-sub, Audio L/R input & speaker output, 1 x BNC video, HDMI, rear gear signal, BNC loop output | | System Type | NTSC/PAL/SECAM/auto | | Power Requirement | 48 W, Saving Mode: 5 W | | Response Time | TR3 / TF10 (msec) | | Power Supply | 100 to 240 VAC, 60/50 Hz
12 VDC / 4.58 A | | Dimensions | Not Specified By Manufacturer | | Weight | Not Specified By Manufacturer |
