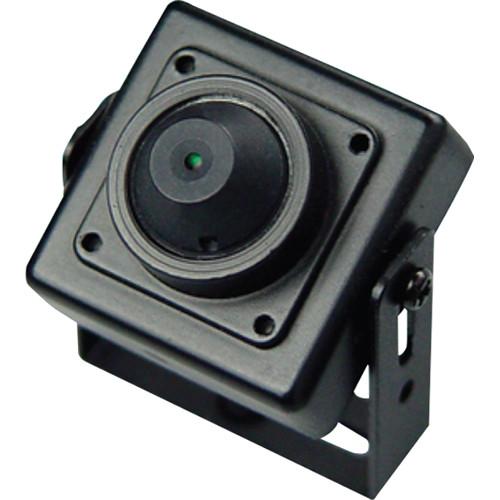

User Manual for Weldex WDH-2500BC 620 TVL Miniature Covert Camera with 3.6mm Conical Lens Click to enlarge the picture
Contents of the user manual for the Weldex WDH-2500BC 620 TVL Miniature Covert
- Product category: Wired Analog & HD Cameras Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Wired Analog & HD Cameras
|
User manual for the Weldex WDH-2500BC 620 TVL Miniature Covert contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The WDH-2500BC 620 TVL Miniature Covert Camera from Weldex incorporates a 1/3" CCD sensor that captures clear B&W images in 620 TVL resolution. Thanks to a 45 dB signal-to-noise ratio, image noise is eliminated. The camera is able to capture images in illumination as low as 0.01 lux. The camera is installed with a 3.6mm fixed conical lens. - Minimum illumination of 0.01 lux
- Horizontal resolution of 620 TVL
- Metal housing with mounting bracket, RCA connector & power cord
In the Box Weldex WDH-2500BC 620 TVL Miniature Covert Camera with 3.6mm Conical Lens (B&W) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex WDH-2500BC 620 TVL Miniature Covert Camera with 3.6mm Conical Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDH-2500BC Specs | Image Sensor | 1/3" CCD area sensor | | TV System | EIA | | Lens | Fixed 3.6 mm conical | | Effective Pixels (H x V) | 512 x 494 | | Scanning System | 2:1 Interlaced | | Horizontal Resolution | 620 TVL (B&W) | | S/N Ratio | 45 dB | | Minimum Illumination | 0.01 lux at f/1.2 | | Video Output | 1 to 1.1 V p-p 75 Ohms composite signal | | Operational Temperature | 4 to 158°F / -20 70°C) | | Humidity | 95% | | Power Requirement | 8 to 12 VDC (9 VDC standard) | | Power Consumption | 80 mA | | Dimensions (L x W x D) | 0.98 x 0.98 x 0.62" / 25 x 25 x 16 mm |
