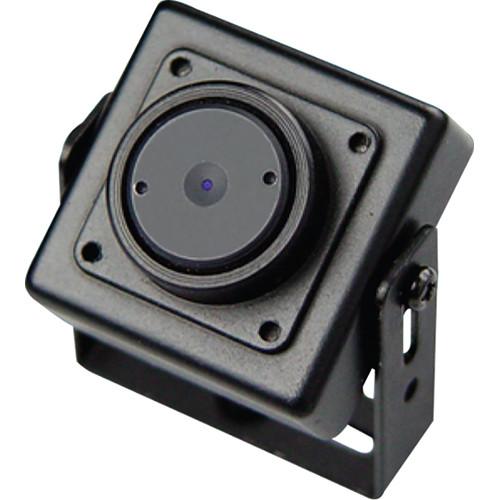

Product description The WDH-3200CP 600 TVL Miniature Covert Square Camera from Weldex incorporates a 1/4" CCD sensor that captures clear images in 600 TVL resolution. Thanks to a 46 dB signal-to-noise ratio, image noise is eliminated. The camera is able to capture images in illumination as low as 0.01 lux (B&W) and 0.2 lux (color). The camera is installed with a 3.6mm fixed pinhole lens. - 100mA low power consumption (color)
- Minimum illumination of 0.01 lux at f/1.2 (B&W), 0.2 lux at f/1.2 (color)
- Horizontal resolution of 620 TVL (B&W), 600 TVL (color)
- Metal housing with mounting bracket, RCA connector & power cord
In the Box Weldex WDH-3200CP 600 TVL Miniature Covert Square Camera with 3.6mm Pinhole Lens Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex WDH-3200CP 600 TVL Miniature Covert Square Camera with 3.6mm Pinhole Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDH-3200CP Specs | Image Sensor | Interline transfer 1/4" CCD sensor | | TV System | NTSC, PAL | | Lens | Fixed 3.6 mm pinhole | | Effective Pixels (H x V) | NTSC: 512 x 492, PAL: 512 x 582 | | Scanning System | 2:1 Interlaced | | Horizontal Resolution | 600 TVL (Color) / 620 TVL (B&W) | | S/N Ratio | >46 dB | | Minimum Illumination | 0.2 lux at f/1.2 (color) / 0.01 lux at f/1.2 (B&W) | | Video Output | 1 to 1.1 V p-p 75 Ohms composite signal | | Operational Temperature | 4 to 158°F / -20 70°C | | Humidity | 95% | | Power Requirement | 9 to 12 VDC | | Power Consumption | 80 mA (), 100 mA (color) | | Dimensions (L x W x D) | 0.98 x 0.98 x 0.59" / 25 x 25 x 15 mm |
