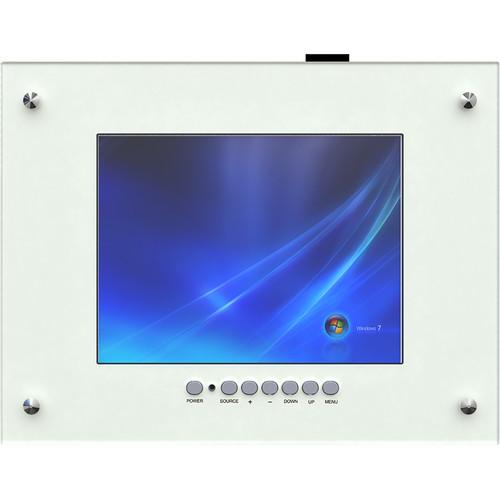

User Manual for Weldex WDL-1040MFM-HD 10.4" Industrial TFT LCD Flush Mount Monitor Click to enlarge the picture
Contents of the user manual for the Weldex WDL-1040MFM-HD 10.4" Industrial TFT LCD
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex WDL-1040MFM-HD 10.4" Industrial TFT LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The 10.4" Industrial TFT LCD Flush Mount Monitor from Weldex features 800 x 600 (SVGA) resolution and 16.7M colors with 300 cd/m² brightness. The on-screen display menu provides feature and video adjustments for quick changes to contrast, color, language, and video and input selection. With multiple inputs and compatibility with VESA standards, NTSC, PAL, and SECAM, the monitor can be used with almost any security video recorder. - Thin cross section, with less than a 2.5" deep panel
- 16.7 million colors for true color rendition
- On-screen menu display for feature and video adjustments
UPC: 850246008458 In the Box Weldex WDL-1040MFM-HD 10.4" Industrial TFT LCD Flush Mount Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex WDL-1040MFM-HD 10.4" Industrial TFT LCD Flush Mount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-1040MFM Specs | Display Type | Active matrix color TFT LCD | | Screen Size | 10.4" (264 mm) | | Viewing Size | 8.99 x 6.90 x 0.24" (228.4 x 175.4 x 6.2 mm) | | Viewing Angle | Up: 50°
Down: 60°
Right: 75°
Left: 75° | | Pixel Pitch | 0.264 x 0.264 mm | | Brightness | 300 cd/m2 | | Resolution | SVGA (800 x 600) | | Display Color | 16.7 million | | Pixel Format | RGB stripe | | De-Interlace | Digital | | Video Input | Analog RGB (0.7 V p-p), composite (0.7 V p-p) | | Contrast Ratio | 500:1 | | Power Supply | 100 to 240 VAC, 60/50 Hz, 12 VDC / 3.0 A | | Plug & Play | VESA DDC 1/2B | | I/O Connector | 12 VDC power input, VGA 15-pin | | System Type | NTSC/PAL/SECAM/auto | | Power Requirements | 30 W
Power Saving Mode: 5 W | | Dimensions | 12.6 x 9.4 x 2.2" (320 x 240 x 55 mm) | | Weight | 2.6 lb (1.2 kg) | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 20.0 x 17.0 x 5.0" |
