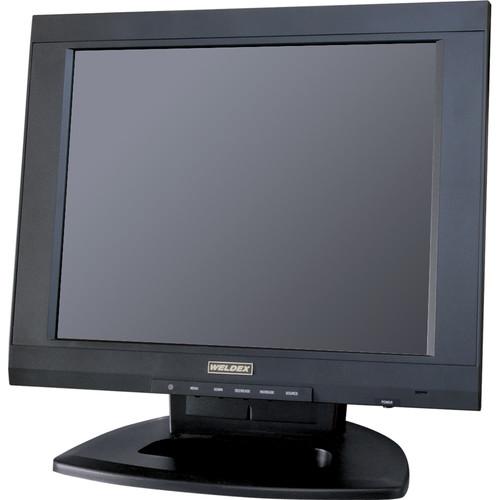

User Manual for Weldex WDL-1500SRM 15" 1024 x 768 Sunlight Readable Monitor Click to enlarge the picture
Contents of the user manual for the Weldex WDL-1500SRM 15" 1024 x 768
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex WDL-1500SRM 15" 1024 x 768 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The WDL-1500SRM 15" 1024 x 768 Sunlight Readable Monitor from Weldex features 1024 x 768 resolution with 400:1 contrast ratio and 1500 cd/m2 brightness. It has onscreen display menus for feature and video adjustments. This monitor comes with multiple inputs (composite video, D-sub, HDMI) and audio outputs (speaker and earphone). - Thin cross section (less than 2.5" deep panel)
- 16.2 million colors for true color rendition
- Audio line inputs (right/left) and built-in speaker
- Includes power supply, wireless remote control, and PC cable
In the Box Weldex WDL-1500SRM 15" 1024 x 768 Sunlight Readable Monitor Power Supply Wireless Remote Control PC Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex WDL-1500SRM 15" 1024 x 768 Sunlight Readable Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-1500SRM Specs | Display Type | Active Matrix Color TFT LCD | | Diagonal Screen Size | 15" (38.1 cm) | | Viewable Size | 12 x 9" (30.4 x 22.8 cm) | | Viewing Angle (H x V) | 110 x 130° | | Pixel Pitch | 0.297 x 0.297 mm | | Brightness | 1500 cd/m2 | | Resolution | XGA (1024 x 768) | | Display Color | 16.2 million colors | | Pixel Format | RGB vertical stripe | | Interface | Analog | | Video Input | Analog RGB (0.7 V p-p), HDMI, BNC composite (0.7 V p-p) | | Contrast Ratio | 400:1 | | Adapter | 100-240 VAC, 60/50 Hz, 12 VDC, 3 A | | Built-In Speakers | 2 x 2 W stereo | | Plug and Play | VESA DDC 1/2B | | I/O Connector | 12 VDC power input
VGA 15-pin D-sub
Audio L/R input and speaker out & speaker in
Video 1 BNC
HDMI
Rear gear signal
BNC loop out
External source signal (optional) | | System Type | NTSC / PAL / SECAM / Auto | | Power Requirement | 36 W
Saving Mode: 25 W | | Response Time | TR 3 / TF 13 (ms) | | Video Source | Composite, HDMI, VGA | | Dimensions | 15.6 x 9 x 14.3" (39.6 x 22.9 x 36.3 cm) | | Weight | 10.1 lb (4.6 kg) |
