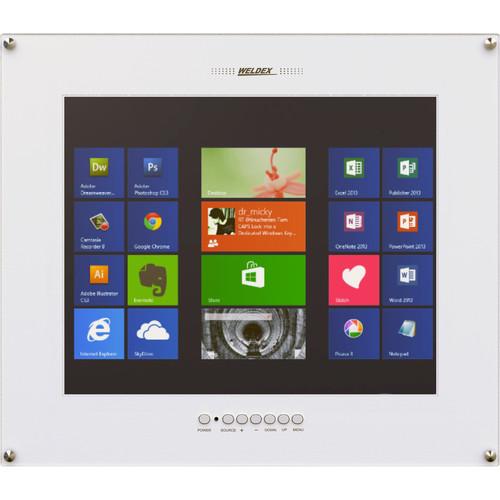

User Manual for Weldex WDL-1900MFM-HD Color 19" Flush Mount LCD Monitor Click to enlarge the picture
Contents of the user manual for the Weldex WDL-1900MFM-HD Color 19" Flush Mount
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex WDL-1900MFM-HD Color 19" Flush Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|
Product description The WDL-1900MFM-HD Color 19" Flush Mount LCD Monitor from Weldex features 1280 x 1024 resolution and 16.7 million colors with 250 cd/m² brightness. The on-screen display menu provides feature and video adjustments for quick changes to contrast, color, language, and video and input selection. With multiple inputs and compatibility with VESA standards, the monitor can be used with almost any security video recorder. It features an upgraded scaler that produces a clear and crisp image. - Maximum resolution at up to 1280 x 1024
- 16.7 million colors for true color rendition
- Multiple inputs such as composite video, D-sub, and HDMI
- On-screen menu display for feature and video adjustments
UPC: 850246008502 In the Box Weldex WDL-1900MFM-HD Color 19" Flush Mount LCD Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex WDL-1900MFM-HD Color 19" Flush Mount LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-1900MFM Specs | Screen Size | 19" (483 mm) diagonal | | Maximum Resolution | H x V: 1280 x 1024 | | Contrast Ratio | 1000:1 | | Brightness | 250 cd/m2 | | Viewing Angle (H x V) | 160 x 170° | | Colors | 16.7 million colors | | Viewing Angle | Up: 80°
Down: 80°
Left: 85°
Right: 85° | | Compatibility | PC: VESA standard VGA to XGA 60 Hz
Video: NTSC, PAL, SECAM (auto detection) | | Frequency | Horizontal: 31.5 to 37.5 kHz
Vertical: 56 to 75 Hz | | Input Signals | Analog RGB, CVBS, HDMI | | Input Connectors | D-SUB for RGB, BNC for CVBS, HDMI | | Plug & Play | DDC 1/2B | | Power Management | VESA DPMS | | Power Consumption | DPMS Mode: <4 W | | Power Supply | Input: 100 to 240 VAC, 50 to 60 Hz
Output: 12 VDC, 4 A | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | Operating: 30 to 60%
Storage: -5 to 70% | | Dimensions (W x H x D) | 19.8 x 17.2 x 1.65" (504.6 x 437.6 x 42 mm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 17.8 lb | | Box Dimensions (LxWxH) | 23.0 x 21.1 x 9.8" |
