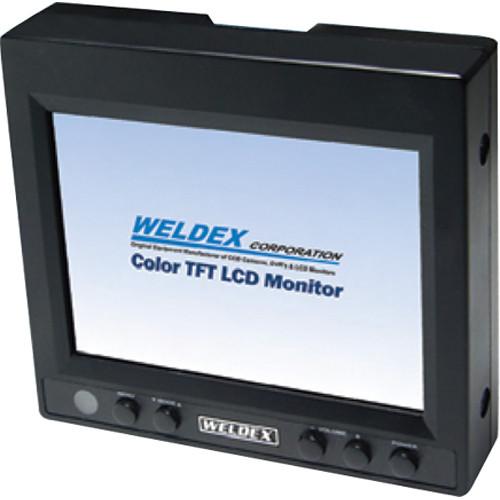

Product description The 3.5" WDL-3501M Color TFT LCD Monitor from Weldex supports resolution of up to 320 x 240 and features RCA jacks for both video and audio incoming signals. This LCD monitor displays images with contrast ratio of 400:1 and brightness of 300 cd/m2. This monitor offers viewing angles of up to 120° horizontally and 105° vertically. It also has an on-screen menu display for feature and video adjustments. The integrated speaker can be used to monitor audio from incoming video feeds. - 3.5" Weatherproof TFT LCD monitor for compact applications
- Supports resolutions up to 320 x 240 (NTSC)
- Selectable mirror image mode
- Active matrix for picture clarity
- Viewing angle of 120° horizontally and 105° vertically
- On-screen display menu for feature and video adjustments such as color, brightness, contrast, tint, and volume
- Allows monitoring audio signals with an integrated audio speaker
In the Box Weldex WDL-3501M 3.5" Color TFT LCD Monitor Mounting Bracket Remote Control Accessories Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex WDL-3501M 3.5" Color TFT LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-3501M Specs | Diagonal Screen Size | 3.5" (8.9 cm) | | Resolution | 320 x 240 (H x V) | | Brightness | 300 cd/m2 | | Contrast Ratio | 400:1 | | Dot Pitch | 0.073 (H) x 0.219 (V) | | Viewing Angle | Up: 50°
Down: 55°
Right: 60°
Left: 60° | | Color System | NTSC | | Video Output | 1 Vpp (75 Ω impedance) | | Connectors | Audio (RCA), video (RCA), power jack | | Power Consumption | 12 VDC 400 mA, maximum 4.8 W | | Operating Temperature | -4 to 158°F (-20 to 70°C) | | Dimensions (W x D x H) | 3.6 x 3.2 x 0.9" (9.1 x 8.1 x 2.2 cm) | | Weight | 1.1 lb (0.5 kg) |
