User Manual for Weldex WDL-7172M2R Dual 7" Industrial Rack Mountable TFT LCD Monitor Click to enlarge the picture
Contents of the user manual for the Weldex WDL-7172M2R Dual 7" Industrial Rack
- Product category: Surveillance Monitors Weldex
- Brand: Weldex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Weldex Surveillance Monitors
|
User manual for the Weldex WDL-7172M2R Dual 7" Industrial Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Weldex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Weldex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Weldex product will considerably shorten its lifespan!
|

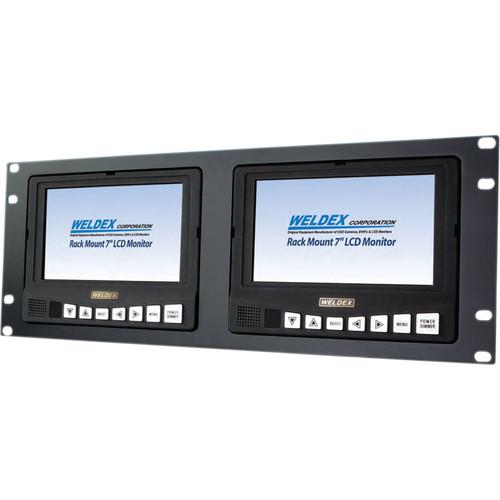

Product description The Weldex WDL-7172M2R Dual 7" Industrial Rack Mountable TFT LCD Monitor can be installed in a 19" rack. Monitor 1 features 1440 x 234 resolution (composite input) and monitor 2 features 800 x 480 resolution (VGA input). The WDL-7172M2R accepts a wide range of input voltages (12 to 32 VDC) and comes with a power supply, video input cables, and a remote control. - Dual 7" active matrix LCD panels
- Design to fit in EIA standard 19" rack, 4U high
- High resolution (Monitor 1: 1440 x 234; Monitor 2: 800 x 480)
- Bright panels (Monitor 1: 400 cd/m2; Monitor 2: 350 cd/m2)
- Individual color, brightness, contrast, tint, and volume controls
- Wide range input voltage (12 to 32 VDC)
- Selectable mirror-image mode (for composite input only)
- Integrated speakers for monitor 1 only
In the Box Weldex WDL-7172M2R Dual 7" Industrial Rack Mountable TFT LCD Monitor 2 x VGA Cable 2 x Composite Cable Power Supply Remote Control with Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Weldex WDL-7172M2R Dual 7" Industrial Rack Mountable TFT LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWeldex WDL-7172M2R Specs | Display Type | Monitor 1 & 2: Active matrix color TFT LCD | | Screen Size | Monitor 1 & 2: 7" (17.8 cm) | | Viewing Angle | Monitor 1
Up: 40°; Down/Left/Right: 60°
Monitor 2
Up: 50°; Down: 60°; Left/Right: 65° | | Pixel Pitch | Monitor 1: 0.107 x 0.370 mm
Monitor 2: 0.1905 x 0.1905 mm | | Active Area (WxH) | Monitor 1: 6.1 x 3.4" (154.08 x 86.58 mm)
Monitor 2: 6.0 x 3.6" (152.4 x 91.44 mm) | | Brightness | Monitor 1: 400 cd/m2; Monitor 2: 350 cd/m2 | | Resolution | Monitor 1: 1440 x 234; Monitor 2: 800 x 480 | | System Type | Monitor 1: NTSC / PAL; Monitor 2: VGA / SVGA | | Input Connections | Monitor 1: 1 x composite (RCA); 1 x audio (RCA)
Monitor 2: 1 x RGB | | Built-in Speaker | Monitor 1: 2 x 2 W stereo | | Power Connector | 12 VDC power in | | Power Consumption | 12 to 32 VDC (19.2 W maximum) | | Weight | 5 lb (2.3 kg) | | Dimensions (W x D x H) | 19 x 1.9 x 6.97" (48.3 x 4.8 x 17.7 cm) |
